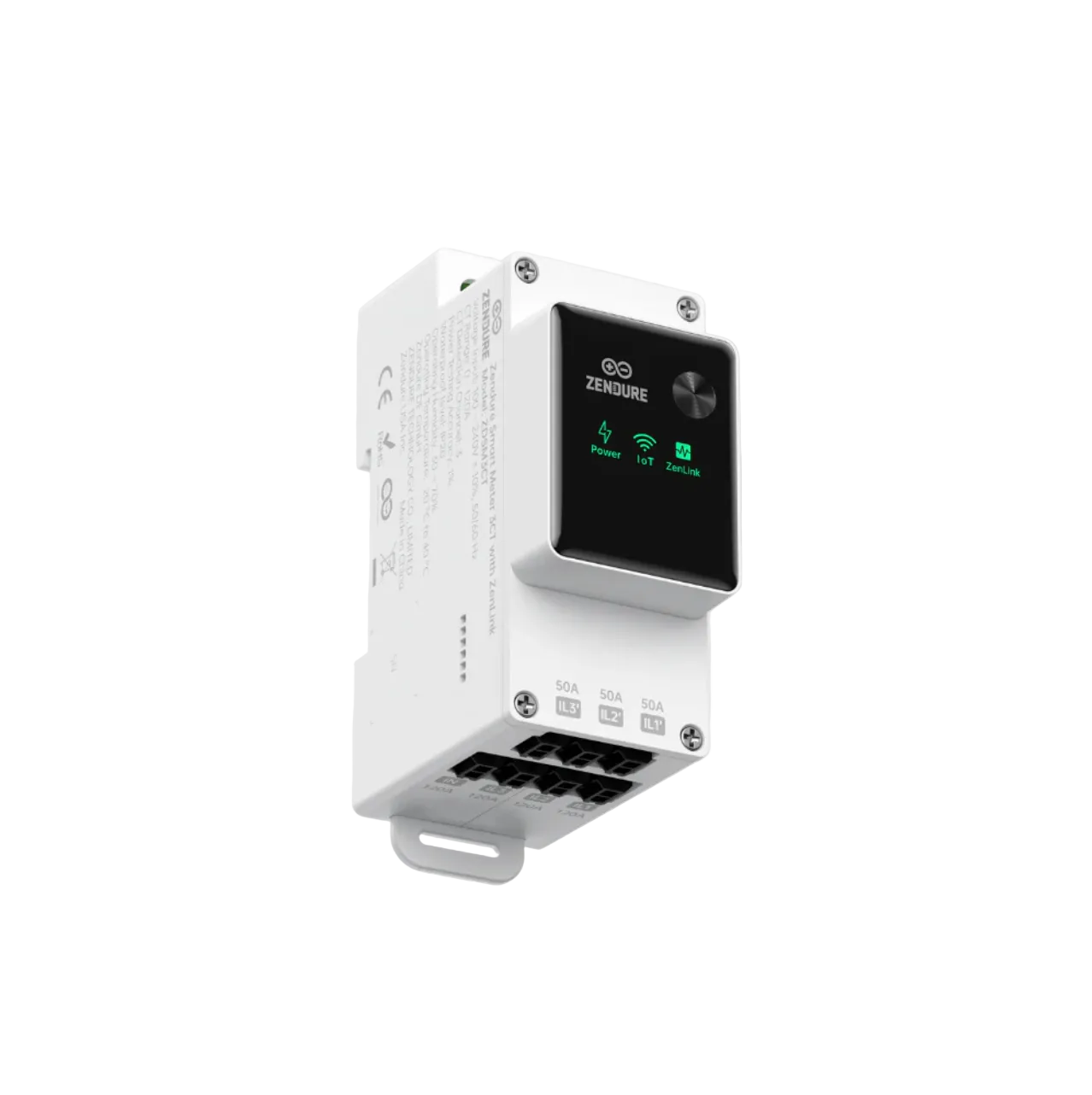

Zendure Smart Meter 3CT
Zendure Smart Meter 3CT

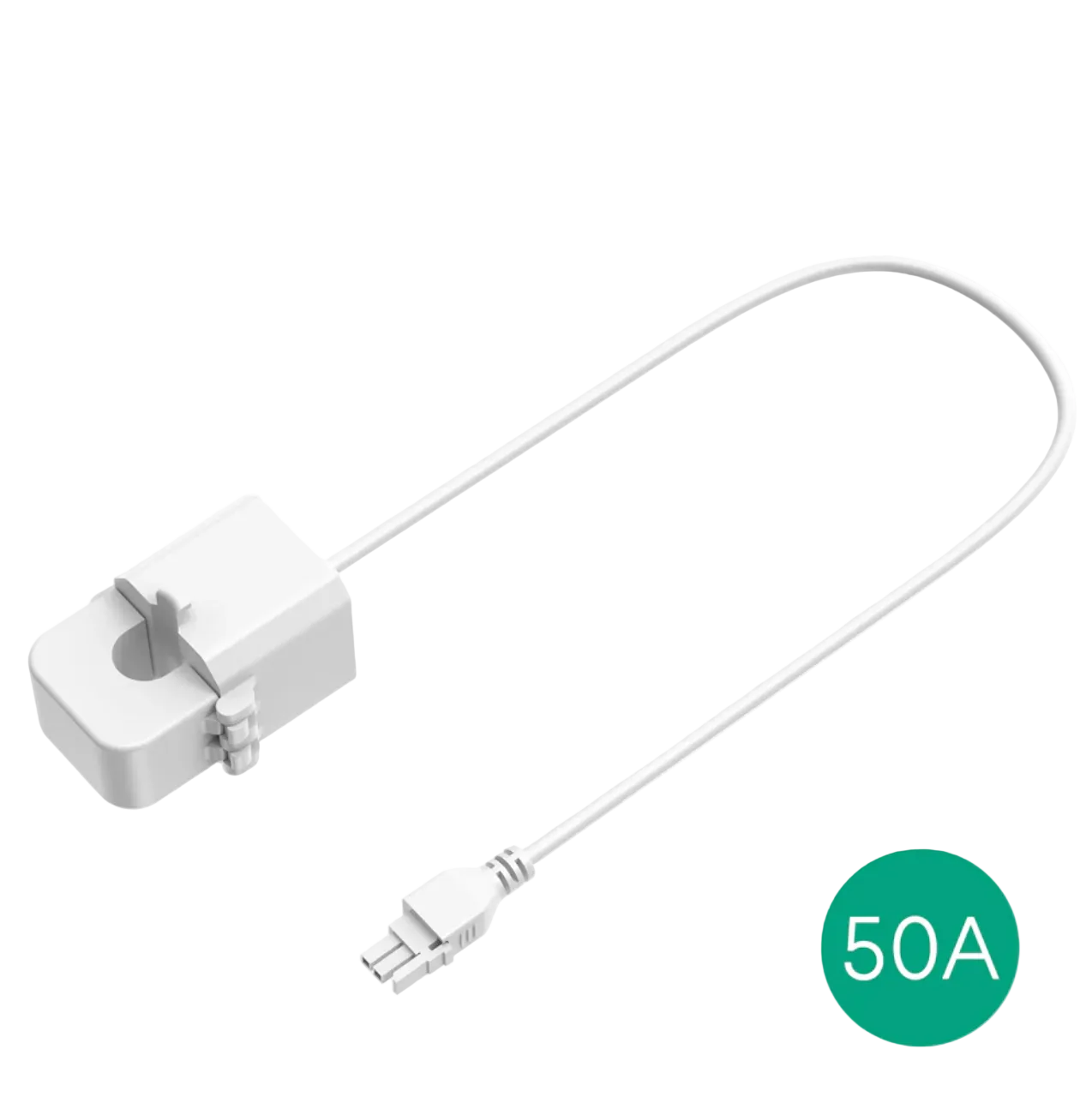

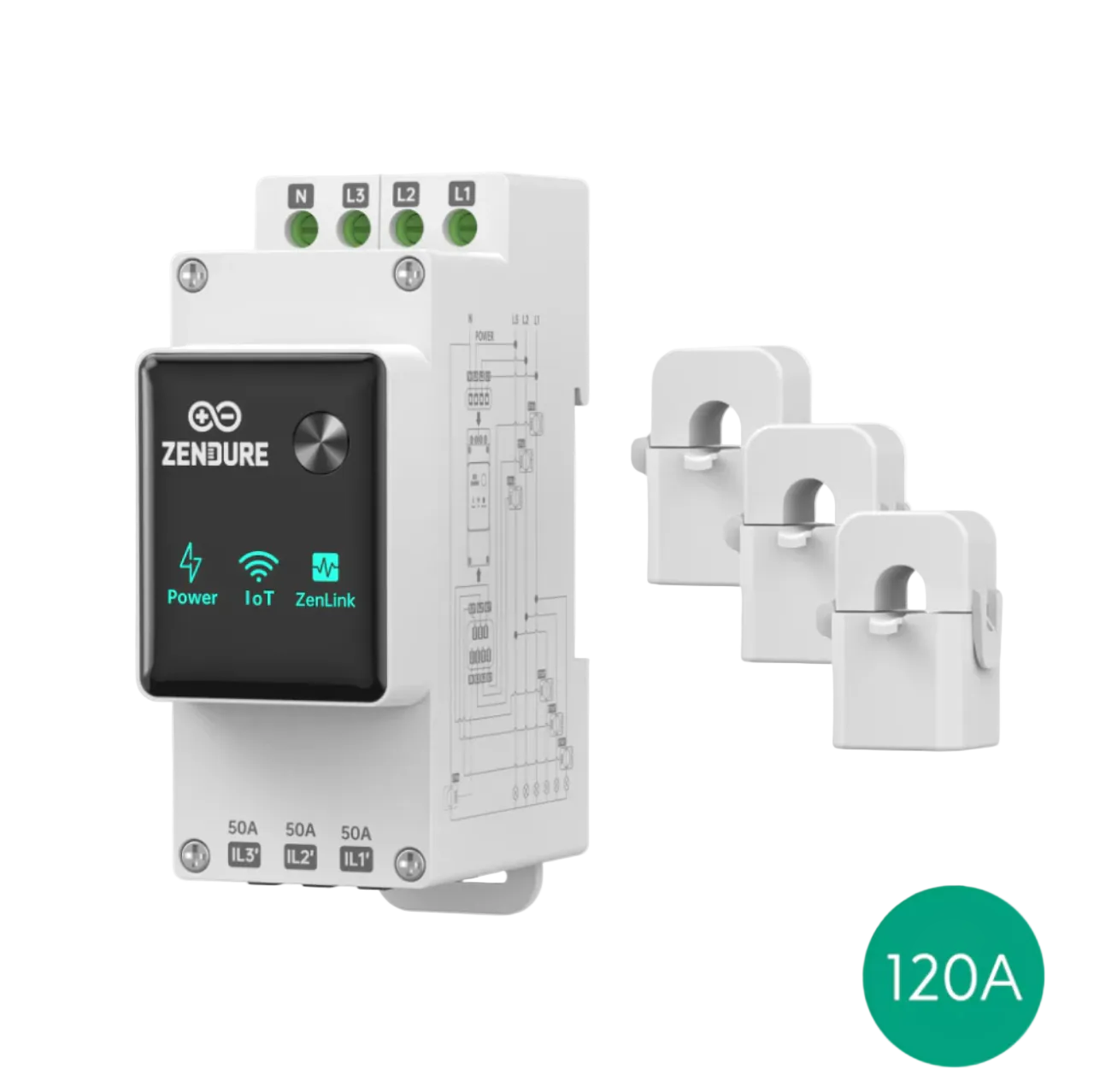

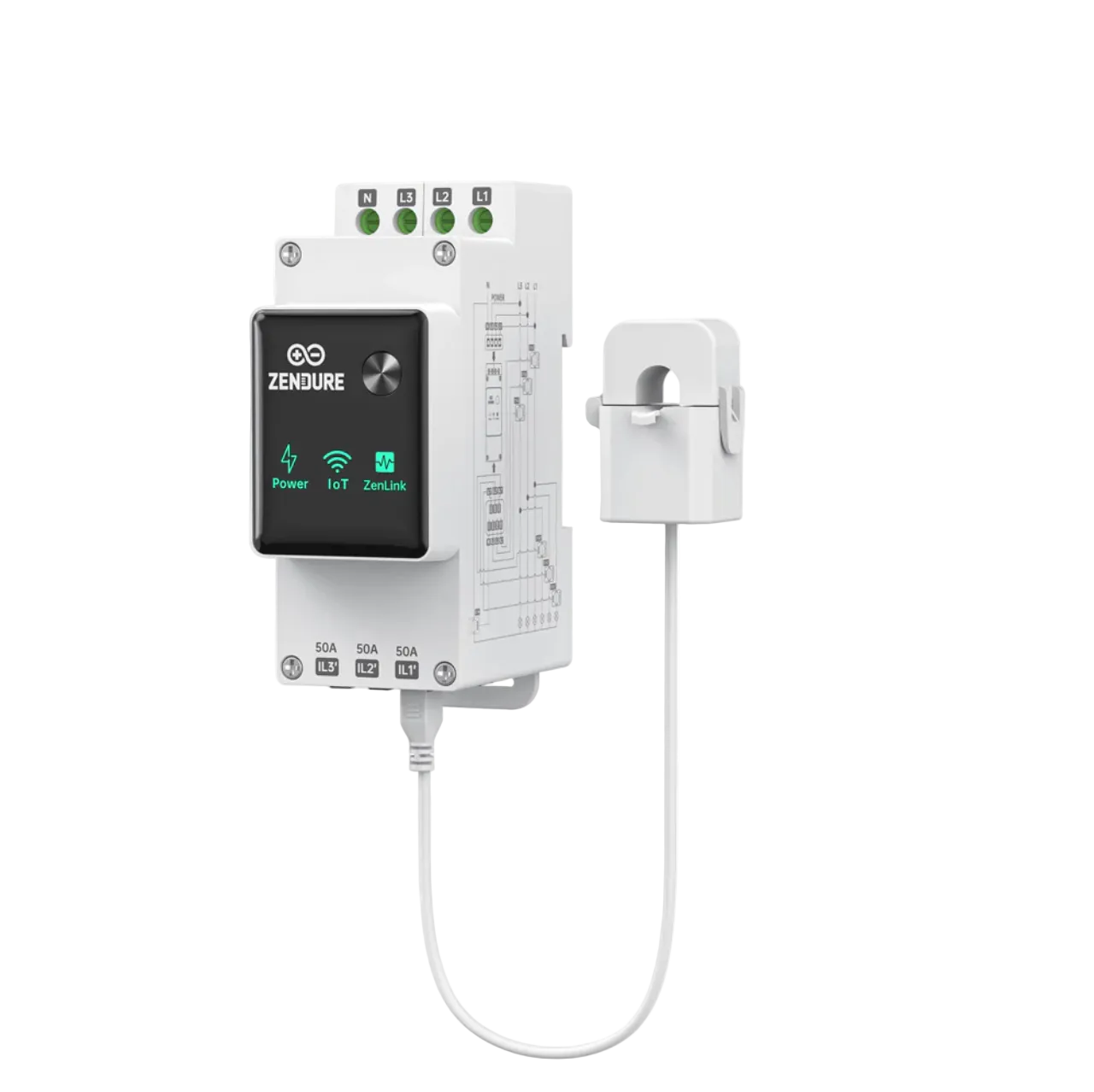

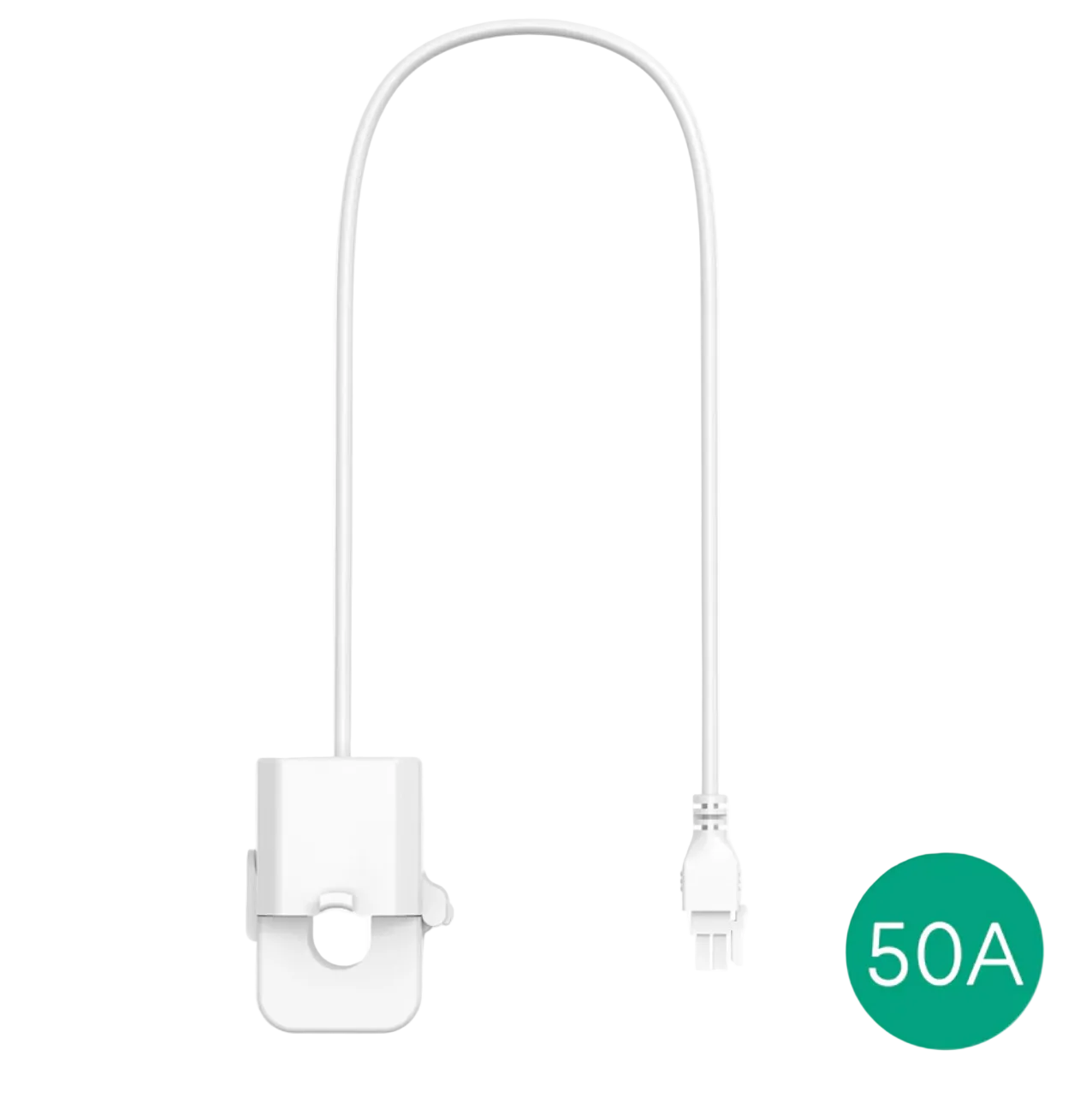

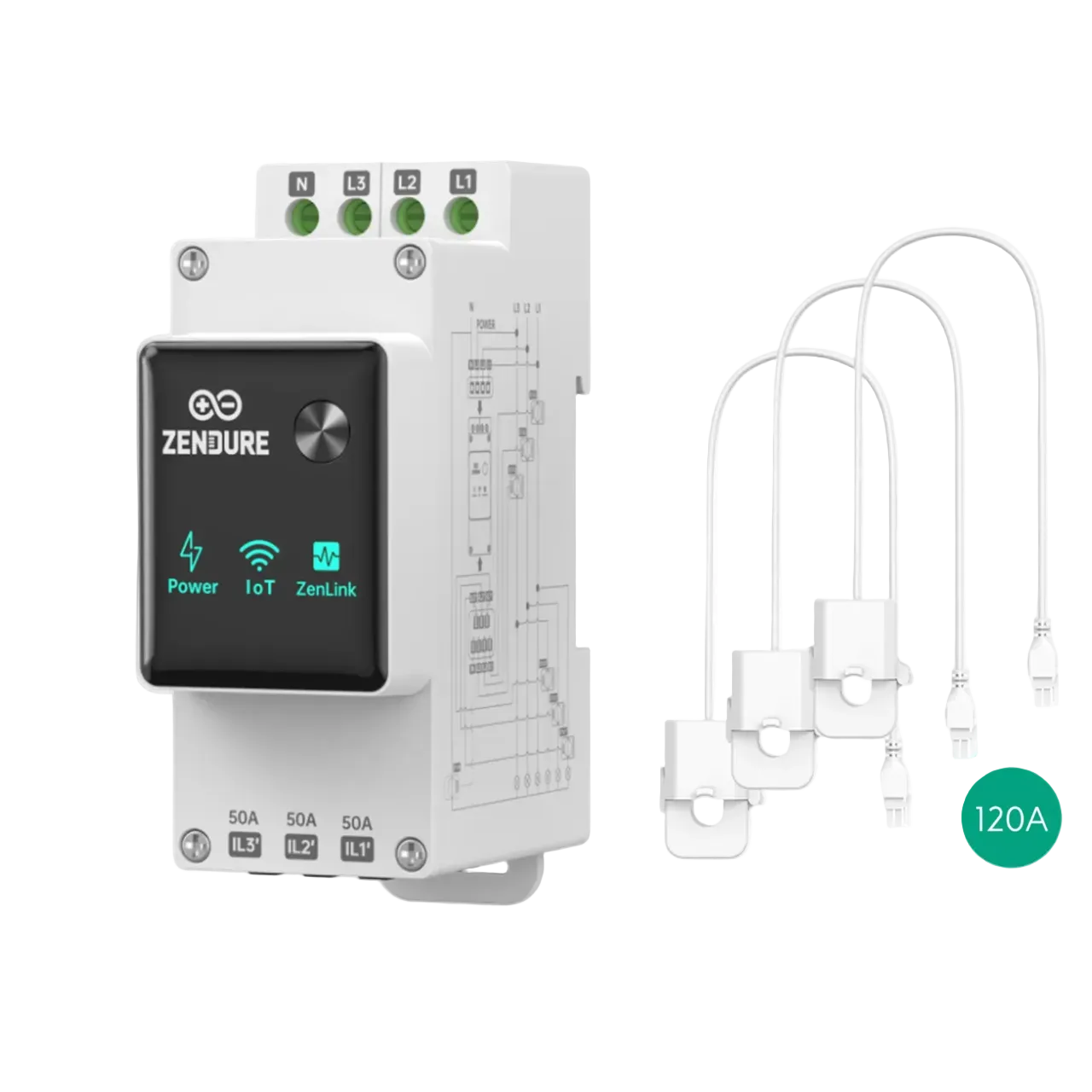

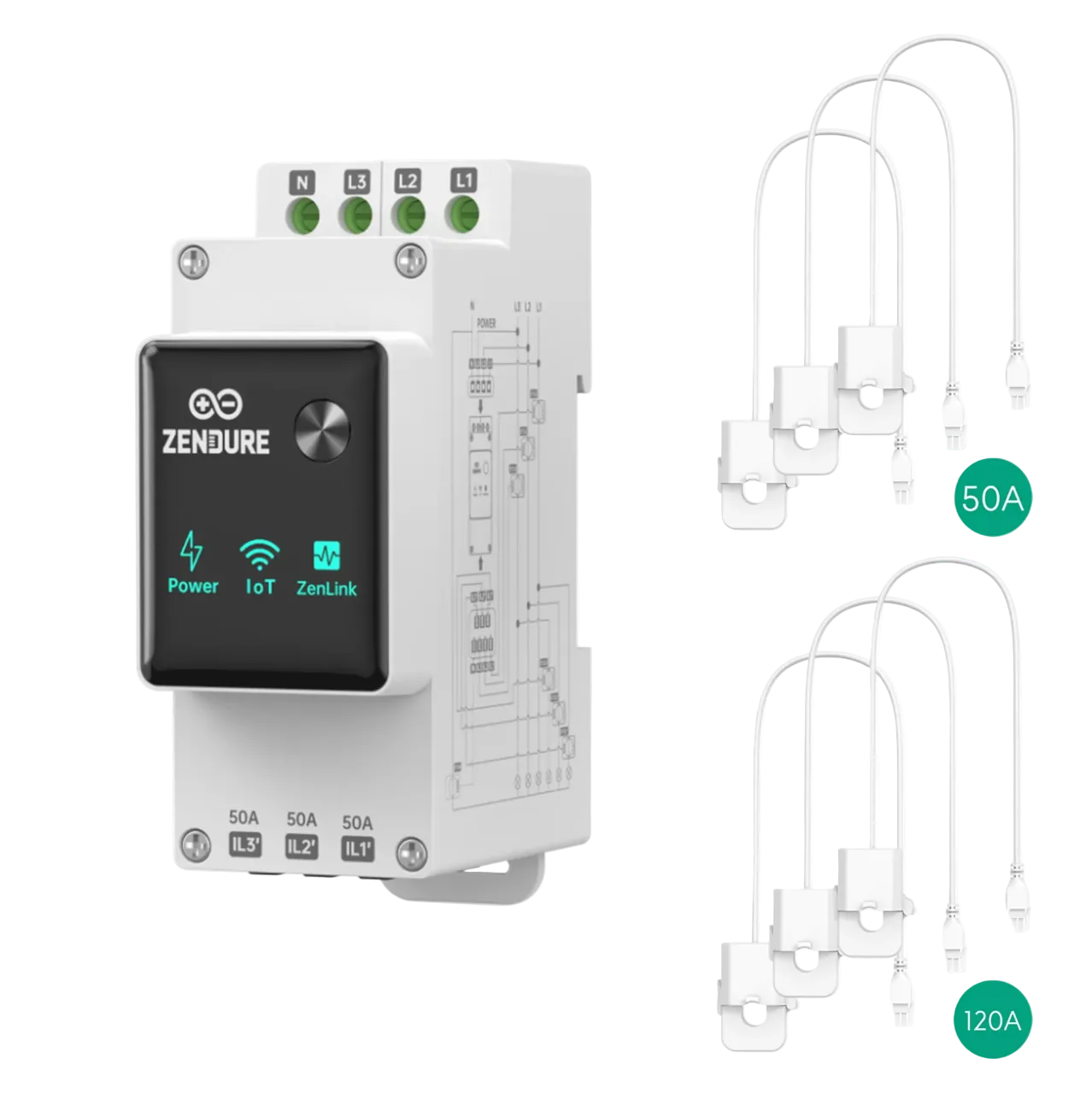

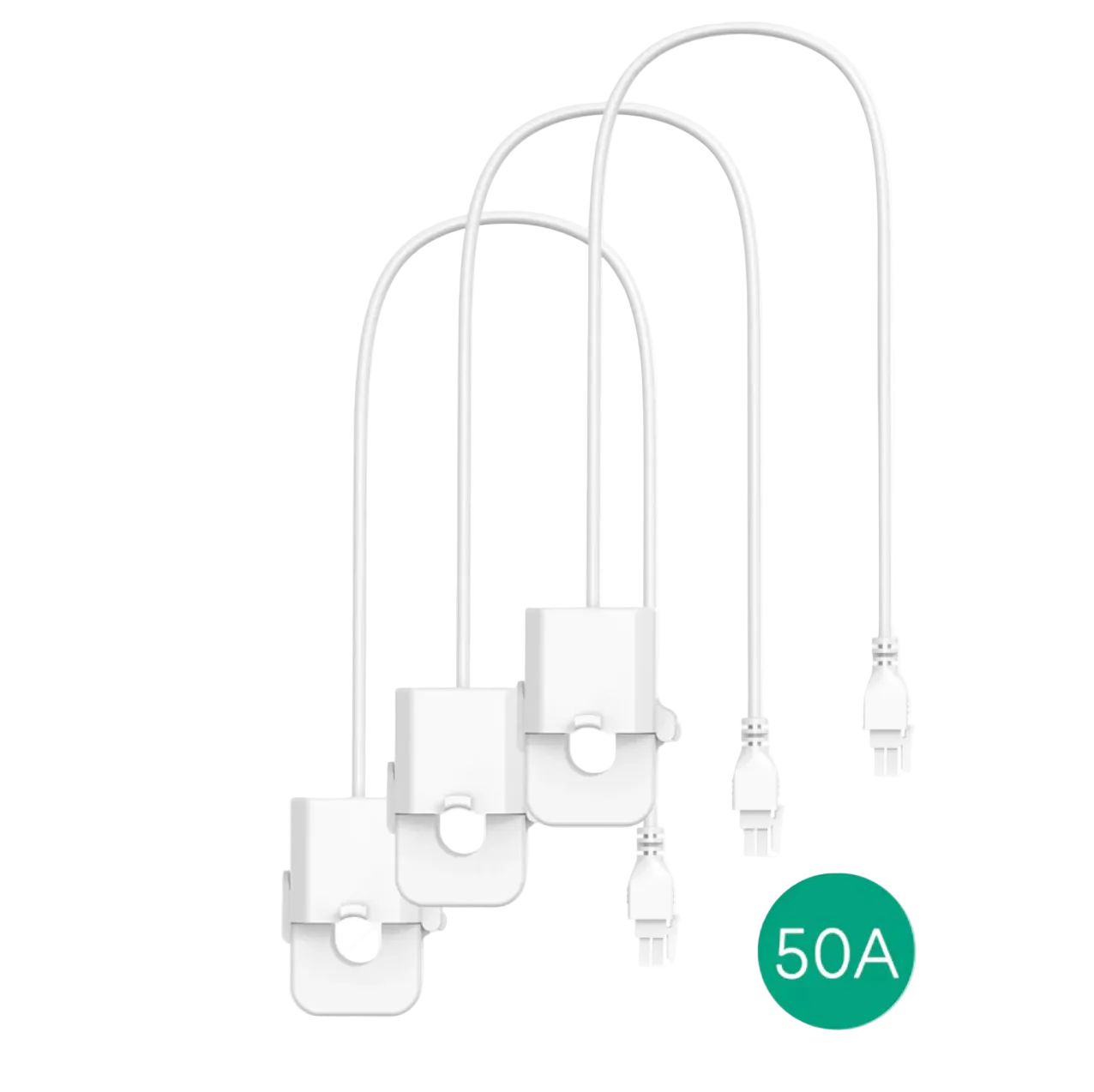

The Zendure Smart Meter 3CT is the professional solution for precise 3-phase energy monitoring and intelligent control of your solar system. Thanks to the three supplied current transformers (CT clamps) the system measures power consumption, feed-in and grid consumption in real time – precisely, reliably and contactlessly.

Product features
Product name
Zendure Smart Meter 3CT
Weight
117,57 g
Dimensions (W × H × D)
91 × 36,5 × 64 mm
Nominal system voltage
100–240 VAC (±10 %)

In combination with compatible Zendure SolarFlow storage systems the smart meter enables intelligent zero-export control, optimises self-consumption and reduces unnecessary grid consumption. Data is conveniently transmitted via WLAN directly to the Zendure app, where all energy data can be monitored and evaluated in real time.
TECHNICAL DATA
Technical data
| Product name | Zendure Smart Meter 3CT |
|---|---|
| Model | ZDSMCT |
| Weight | 117,57 g |
| Dimensions (W × H × D) | 91 × 36,5 × 64 mm |
| Nominal system voltage | 100–240 VAC (±10 %) |
| Grid frequency | 50 / 60 Hz |
| Power consumption | < 3 W |
| Max. measuring current per channel | 120 A |
| Protection class | IP20 |
| Operating temperature | −20 °C to +40 °C |
| Relative humidity | 30–70 % |
| Max. operating altitude | 2000 m |
| Wireless connectivity | Bluetooth & Wi-Fi (2.4 GHz) |
Subject to changes and errors, images similar.
