Sungrow SH8.0RT Hybrid Inverter 8 kW

Sungrow SH8.0RT Hybrid Inverter 8 kW

Regular price 745,00 €
Regular price 1.299,00 € Sale price 745,00 €
Sale Sold out

You save 554,00 € (43 %)

Taxes included. Shipping calculated at checkout.
Umsatzsteuer

In carts right now

  • Delivery time: expected 1 working day
Apple Pay Google Pay PayPal Mastercard Klarna Visa Shop Pay
PayPal
7,45 € saved 1 % discount for bank transfer
Final price with bank transfer: 737,55 €
Enter the voucher code at checkout and pay by bank transfer.
Valid for bank transfer only, not for cash payment.

1% discount

for bank transfer

Own collection point

in 71287 Weissach

Expert advice

+49 (0)7044 211 97 83

Fast support

Phone, email or on site

Customer 1 Customer 2
Thomas, Kim and 328 other customers love our products
View full details

Sungrow SH8.0RT – 8 kW hybrid inverter with backup

The Sungrow SH8.0RT delivers 8 kW rated AC power as a three-phase hybrid inverter. Two MPP trackers, a battery voltage range of 150–600 V and an integrated backup function support coordinated PV storage systems.

According to the manufacturer, the WiNet communication module and three-phase smart meter are included in the scope of delivery of the version offered here. Usable backup power and runtime depend on the approved battery, state of charge and the connected loads.

  • 8 kW rated AC power, three-phase grid connection
  • Up to 12 kWp recommended PV input power according to the datasheet
  • 2 independent MPP trackers
  • High-voltage battery voltage range 150–600 V
  • Backup switchover in under 20 ms according to the manufacturer
  • IP65, natural convection, typically 30 dB(A)
8 kWRated AC power
2 MPPTIndependent PV inputs
150–600 VBattery voltage
IP65Enclosure protection class

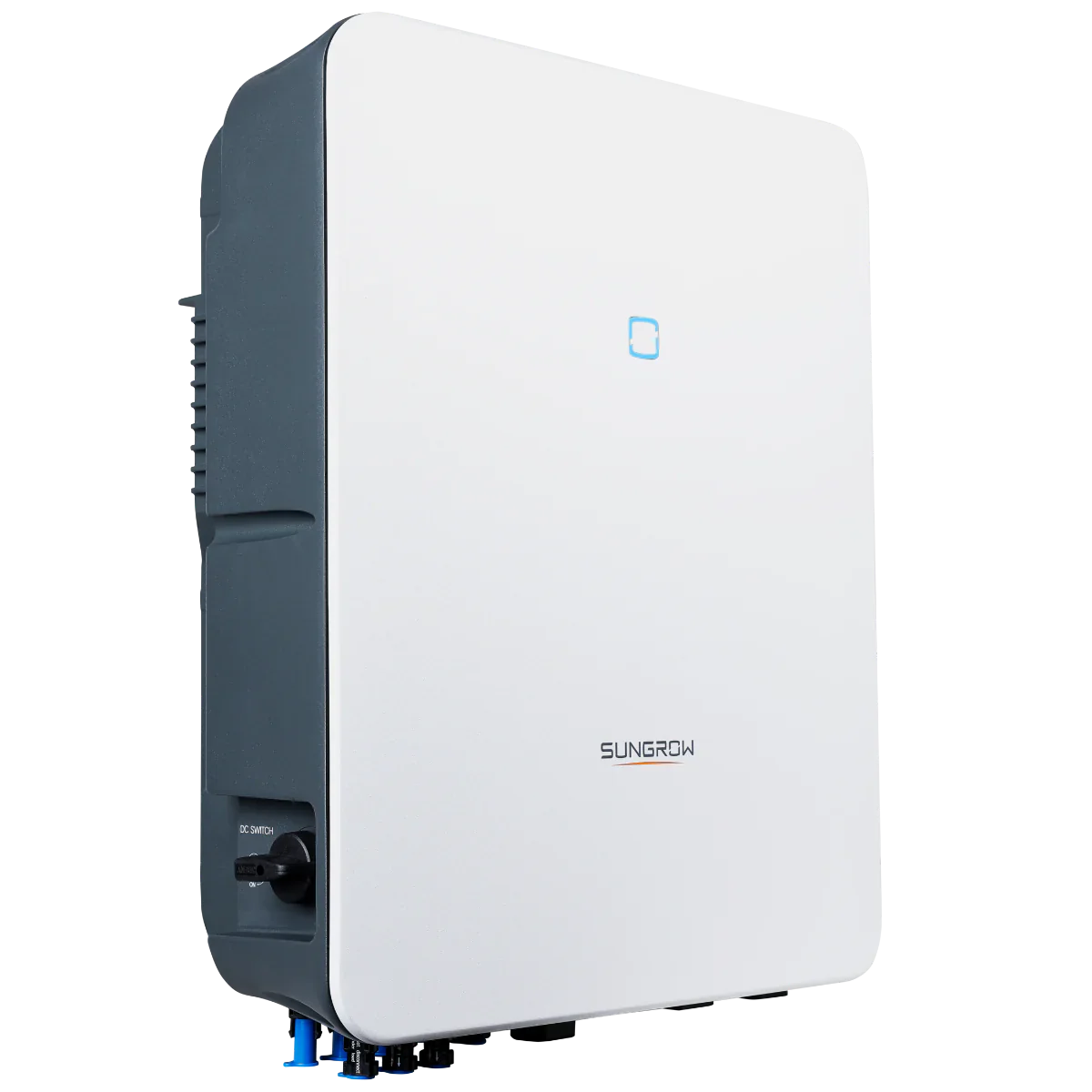

Sungrow SH8.0RT hybrid inverter – product image
Hybrid technology of the SH-RT seriesProduct image of the SH8.0RT model. Accessories shown depend on the configuration.

Product benefits

Connecting PV and battery

The SH8.0RT feeds in on three phases and charges approved high-voltage batteries in the range of 150–600 V. How high self-consumption turns out depends on array size, battery and consumption profile.

Control roof surfaces separately

Two MPP trackers support differently oriented array surfaces. For the SH8.0RT, Sungrow specifies up to 12 kWp recommended PV input power; current and voltage limits remain binding.

Plan backup as an overall system

The switchover in under 20 ms supports appropriately connected loads. Backup does not mean unlimited supply of all loads; battery, state of charge and design are decisive.

Monitoring and heat pump

iSolarCloud as well as WiFi/Ethernet provide a system overview. A digital output can control SG Ready heat pumps, provided the installation allows for this.

Features at a glance

  • 8 kW rated AC power, three-phase grid connection
  • Up to 12 kWp recommended PV input power according to the datasheet
  • 2 independent MPP trackers
  • High-voltage battery voltage range 150–600 V
  • Backup switchover in under 20 ms according to the manufacturer
  • IP65, natural convection, typically 30 dB(A)

Technical data

Manufacturer Sungrow
Model SH8.0RT
Inverter type Three-phase hybrid inverter
Rated AC power 8 kW / 8 kVA
Recommended max. PV input power 12 kWp
Max. PV input voltage 1.000 V
MPP voltage range 200–950 V
Independent MPP trackers 2
PV strings per MPPT 1 / 1
Max. PV input current 25 A (12.5 / 12.5 A)
Battery voltage range 150–600 V
Max. charging/discharging current 30 A / 30 A, depending on the battery
Max. charge/discharge power 10,6 / 10,6 kW
Rated backup power without grid 8 kW / 8 kVA
Backup peak power 12 kW / 5 min
Backup switchover time < 20 ms according to the datasheet
Max. efficiency 98,4 %
Communication RS485, WLAN, Ethernet, CAN; WiNet module as per scope of delivery
Surge protection DC type II / AC type II
Protection class IP65
Dimensions (W × H × D) 460 × 540 × 170 mm
Weight 27 kg

Scope of delivery

  • 1 × Sungrow SH8.0RT hybrid inverter
  • WiNet communication module according to the manufacturer's packing list
  • 3-phase smart meter Chint DTSU666 80 A according to the existing product configuration
  • Wall bracket and connection accessories according to the packing list

Battery storage, PV modules and installation services are not included. Meter variant and communication accessories depend on the version offered and the manufacturer's packing list.

Manufacturer information and planning

Information according to the Sungrow SH5.0/6.0/8.0/10RT datasheet. Check battery approval, firmware, electrical limits and connection requirements before planning. Parallel operation and backup require a professional system design.

Electrical connection, protection concept and commissioning exclusively by qualified specialists. The permissible system combination and the requirements of the grid operator must be checked before installation.

Sungrow datasheet SH5.0/6.0/8.0/10RT

Subject to technical changes. Images may be series-related; optional accessories are only included if expressly stated.
