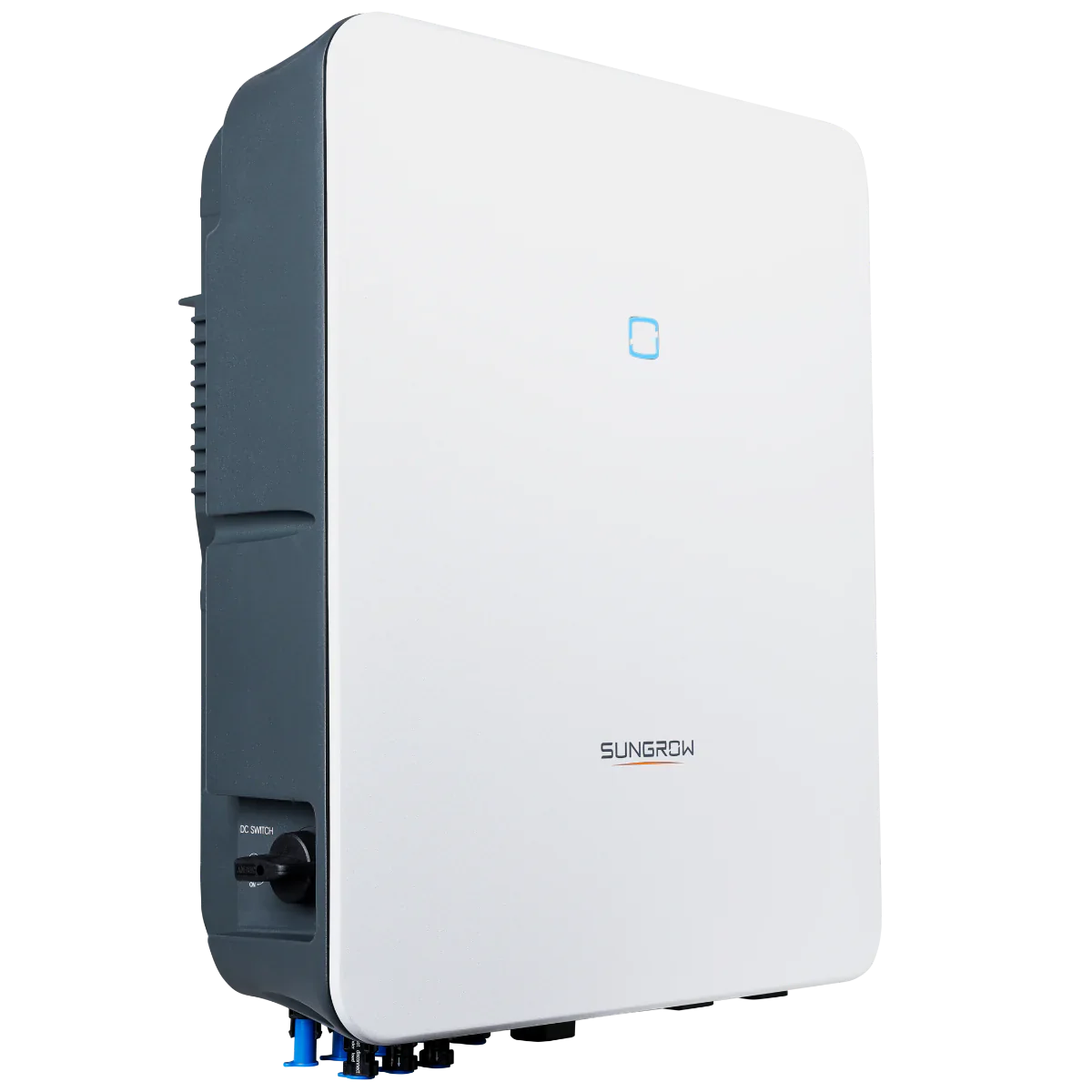

Sungrow SH6.0RT – 6 kW hybrid inverter with backup
The Sungrow SH6.0RT offers 6 kW rated AC power for three-phase PV storage systems. With two MPP trackers and natural convection cooling, it is suitable for compact residential designs with an approved high-voltage battery.
According to the manufacturer, the WiNet communication module and three-phase smart meter are included in the scope of delivery of the version offered here. Usable backup power and runtime depend on the approved battery, state of charge and the connected loads.
- 6 kW rated AC power, three-phase grid connection
- Up to 9 kWp recommended PV input power according to the datasheet
- 2 independent MPP trackers
- High-voltage battery voltage range 150–600 V
- Backup switchover in under 20 ms according to the manufacturer
- IP65, natural convection, typically 30 dB(A)

Product benefits
Connecting PV and battery
The SH6.0RT feeds in on three phases and charges approved high-voltage batteries in the range of 150–600 V. How high self-consumption turns out depends on array size, battery and consumption profile.
Control roof surfaces separately
Two MPP trackers support differently oriented array surfaces. For the SH6.0RT, Sungrow specifies up to 9 kWp recommended PV input power; current and voltage limits remain binding.
Plan backup as an overall system
The switchover in under 20 ms supports appropriately connected loads. Backup does not mean unlimited supply of all loads; battery, state of charge and design are decisive.
Monitoring and heat pump
iSolarCloud as well as WiFi/Ethernet provide a system overview. A digital output can control SG Ready heat pumps, provided the installation allows for this.
Features at a glance
- 6 kW rated AC power, three-phase grid connection
- Up to 9 kWp recommended PV input power according to the datasheet
- 2 independent MPP trackers
- High-voltage battery voltage range 150–600 V
- Backup switchover in under 20 ms according to the manufacturer
- IP65, natural convection, typically 30 dB(A)
Technical data
| Manufacturer | Sungrow |
|---|---|
| Model | SH6.0RT |
| Inverter type | Three-phase hybrid inverter |
| Rated AC power | 6 kW / 6 kVA |
| Recommended max. PV input power | 9 kWp |
| Max. PV input voltage | 1.000 V |
| MPP voltage range | 200–950 V |
| Independent MPP trackers | 2 |
| PV strings per MPPT | 1 / 1 |
| Max. PV input current | 25 A (12.5 / 12.5 A) |
| Battery voltage range | 150–600 V |
| Max. charging/discharging current | 30 A / 30 A, depending on the battery |
| Max. charge/discharge power | 9,0 / 7,2 kW |
| Rated backup power without grid | 6 kW / 6 kVA |
| Backup peak power | 7.2 kW / 5 min |
| Backup switchover time | < 20 ms according to the datasheet |
| Max. efficiency | 98,2 % |
| Communication | RS485, WLAN, Ethernet, CAN; WiNet module as per scope of delivery |
| Surge protection | DC type II / AC type II |
| Protection class | IP65 |
| Dimensions (W × H × D) | 460 × 540 × 170 mm |
| Weight | 27 kg |
Scope of delivery
- 1 × Sungrow SH6.0RT hybrid inverter
- WiNet communication module according to the manufacturer's packing list
- 3-phase smart meter Chint DTSU666 80 A according to the existing product configuration
- Wall bracket and connection accessories according to the packing list
Battery storage, PV modules and installation services are not included. Meter variant and communication accessories depend on the version offered and the manufacturer's packing list.
Manufacturer information and planning
Information according to the Sungrow SH5.0/6.0/8.0/10RT datasheet. Check battery approval, firmware, electrical limits and connection requirements before planning. Parallel operation and backup require a professional system design.
Electrical connection, protection concept and commissioning exclusively by qualified specialists. The permissible system combination and the requirements of the grid operator must be checked before installation.
Sungrow datasheet SH5.0/6.0/8.0/10RT
Subject to technical changes. Images may be series-related; optional accessories are only included if expressly stated.
