Sungrow SG150CX - 150 kW Inverter
The Sungrow SG150CX Premium is a powerful three-phase 150 kW string inverter for large commercial and industrial photovoltaic systems. With 7 MPP trackers and 3 string connections per MPPT each, the inverter enables flexible design of complex PV systems and efficient use of the available module areas.

Product features
VDE certified
VDE-AR-N 4105 and VDE-AR-N 4110/4120 certified – see download area

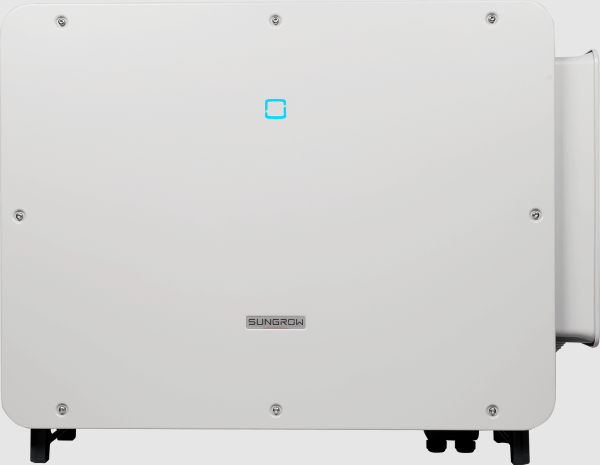

Status LED
Fast and clear display of the operating status
Wide input voltage range
180–1.000 V
High efficiency
Up to 98.8% for efficient energy conversion
Features at a glance
- VDE certified: VDE-AR-N 4105 and VDE-AR-N 4110/4120 certified – see download area
- Status LED: fast and clear display of the operating status
- Wide input voltage range: 180–1,000 V
- High efficiency: up to 98.8% for efficient energy conversion
- Intelligent cooling: temperature-controlled forced air cooling for reliable operation
- DC surge protection: type 1 + 2 integrated
- AC surge protection: type 2 integrated
- AFCI integrated: arc fault detection device for increased system safety
Technical data
| Manufacturer | Sungrow |
|---|---|
| VDE certified | VDE-AR-N 4105 and VDE-AR-N 4110/4120 certified – see download area |
| Status LED | Fast and clear display of the operating status |
| Wide input voltage range | 180–1.000 V |
| High efficiency | Up to 98.8% for efficient energy conversion |
| Intelligent cooling | Temperature-controlled forced air cooling for reliable operation |
| DC surge protection | Type 1 + 2 integrated |
| AC surge protection | Type 2 integrated |
| AFCI integrated | Arc fault detection device for increased system safety |
| Integrated coupling switch | For optimised system integration |
| High protection rating | IP66 for demanding operating conditions |
PRODUCT FEATURES
| Model designation | Sungrow SG150CX Premium |
|---|---|
| Inverter type | String inverter |
| Rated AC power | 150 kW |
| Max. AC apparent power | 165 kVA |
| Phases | 3-phase |
| MPP trackers | 7 |
| MPPT voltage range | 180–1,000 V String connections per MPPT: 3 |
| DC connection | MC4-Evo2, max. 6 mm² |
| Max. efficiency | 98,8 % |
| Communication | 1 × RS485 |
| Monitoring | Via optional Sungrow WiNet-S communication dongle or COM100E |
| DC surge protection | Type 1 + 2 |
| AC surge protection | Type 2 |
| AFCI | Integrated |
| Coupling switch | Integrated |
| Cooling | Temperature-controlled intelligent forced air cooling |
| Protection class | IP66 |
| Noise emission | 73 dB(A) |
| Dimensions | 1.025 × 795 × 360 mm |
| Weight | 100 kg |
Subject to changes and errors, images similar.
