SUNGROW SBR128 BATTERY STORAGE 12.8KWH V13

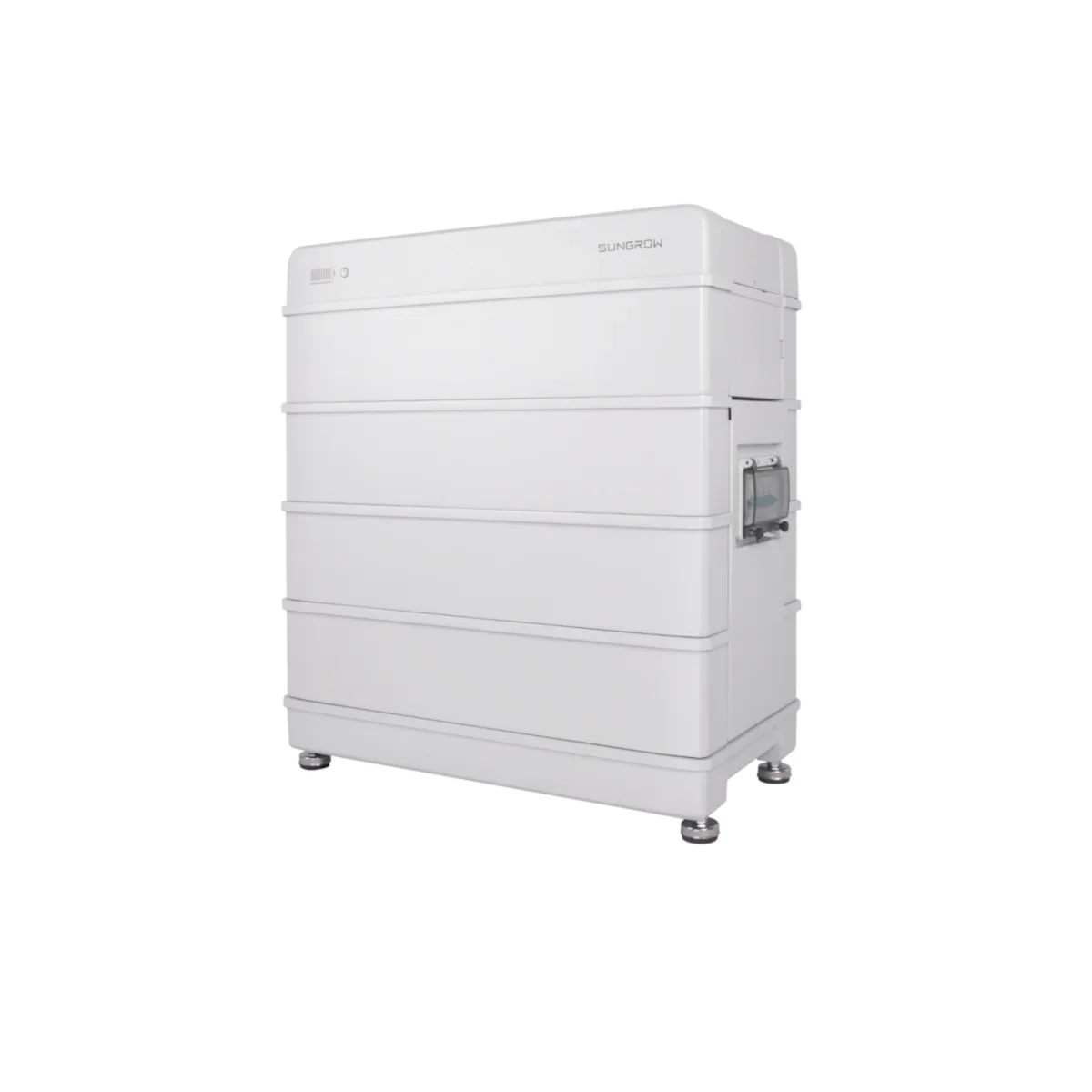

SUNGROW SBR128 HIGH-VOLTAGE LITHIUM IRON PHOSPHATE BATTERY 12.8 KWH
The Sungrow SBR battery storage starts with 4 modules and can be flexibly expanded to up to 8 modules. The storage capacity ranges from 12.8 kWh to a maximum of 25.6 kWh, which makes the system particularly adaptable. Thanks to the low weight of only 33 kg per module and the compact design, installation can easily be carried out by one person using plug-and-play technology.
- Continuous charge and discharge current of 30 A
- Lifetime expandability to up to 8 modules per unit
- Certified multi-level protection concept, including VDE 2510-50
- Easy installation by one person thanks to low weight and compact design
- Plug-and-play connection between the modules
- Powerful emergency and backup power as well as off-grid function
- 10-year product warranty

Product features
Peak output current
42 A for 10 seconds
Dimensions
625 x 675 x 330 mm
Once the Sungrow 3-phase hybrid inverter is installed, it automatically detects the battery storage and integrates it seamlessly into the existing system. The optimally matched emergency power system, with a switchover time of under 20 milliseconds and modern load control, ensures high operational reliability.
Features at a glance
- Battery capacity: 12.8 kWh
- Rated voltage: 256 V
- Maximum output current: 30 A
- Peak output current: 42 A for 10 seconds
- Weight: 147 kg
- Protection class: IP55
- Dimensions: 625 x 675 x 330 mm
Technical data
PRODUCT FEATURES SUNGROW SBR128 BATTERY WITH 12.8 KWH
| Manufacturer | Sungrow |
|---|---|
| Battery capacity | 12,8 kWh |
| Rated voltage | 256 V |
| Maximum output current | 30 A |
| Peak output current | 42 A for 10 seconds |
| Weight | 147 kg |
| Protection class | IP55 |
| Dimensions | 625 x 675 x 330 mm |

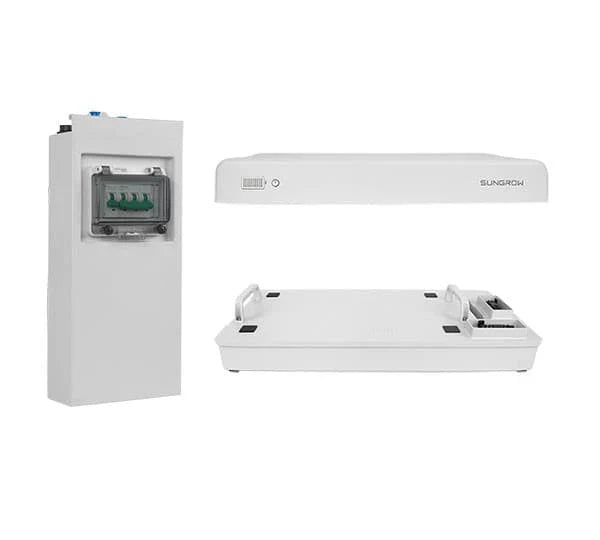

Scope of delivery
- 4 x Sungrow SBR 3.20 kWh battery modules
- 1 x Sungrow SBR base and accessories
Subject to changes and errors, images similar.
