SUNGROW SBH350 HIGH VOLTAGE LITHIUM IRON PHOSPHATE BATTERY 35.0 KWH

The Sungrow SBH series is a modular high-voltage battery system for use with the Sungrow SH-xxT hybrid inverters (15-25kW). It can be used to increase self-consumption and for emergency power.

The SBH series is characterized by the following features:
- Easy installation (integrated handles, no wiring between modules)
- Small space requirement
- Easy commissioning, the battery is automatically recognized via iSolarcloud

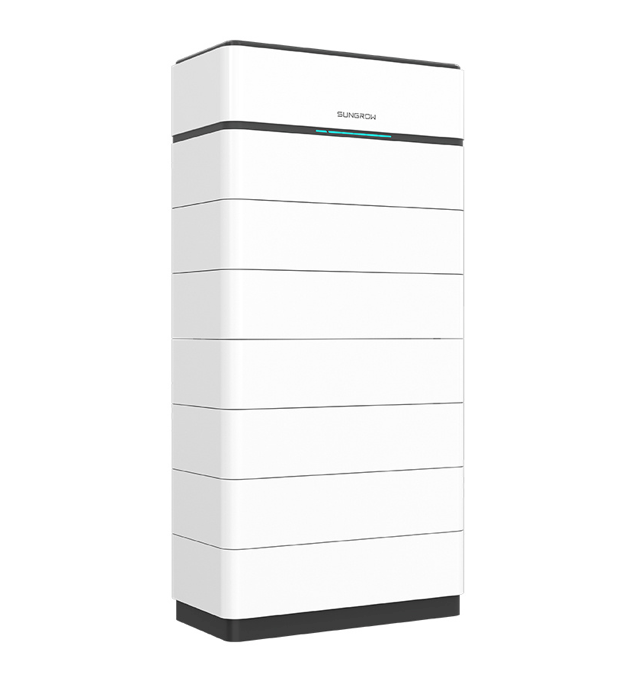

The SBH 350 consists of a base unit and seven battery modules that use prismatic LFP cells.

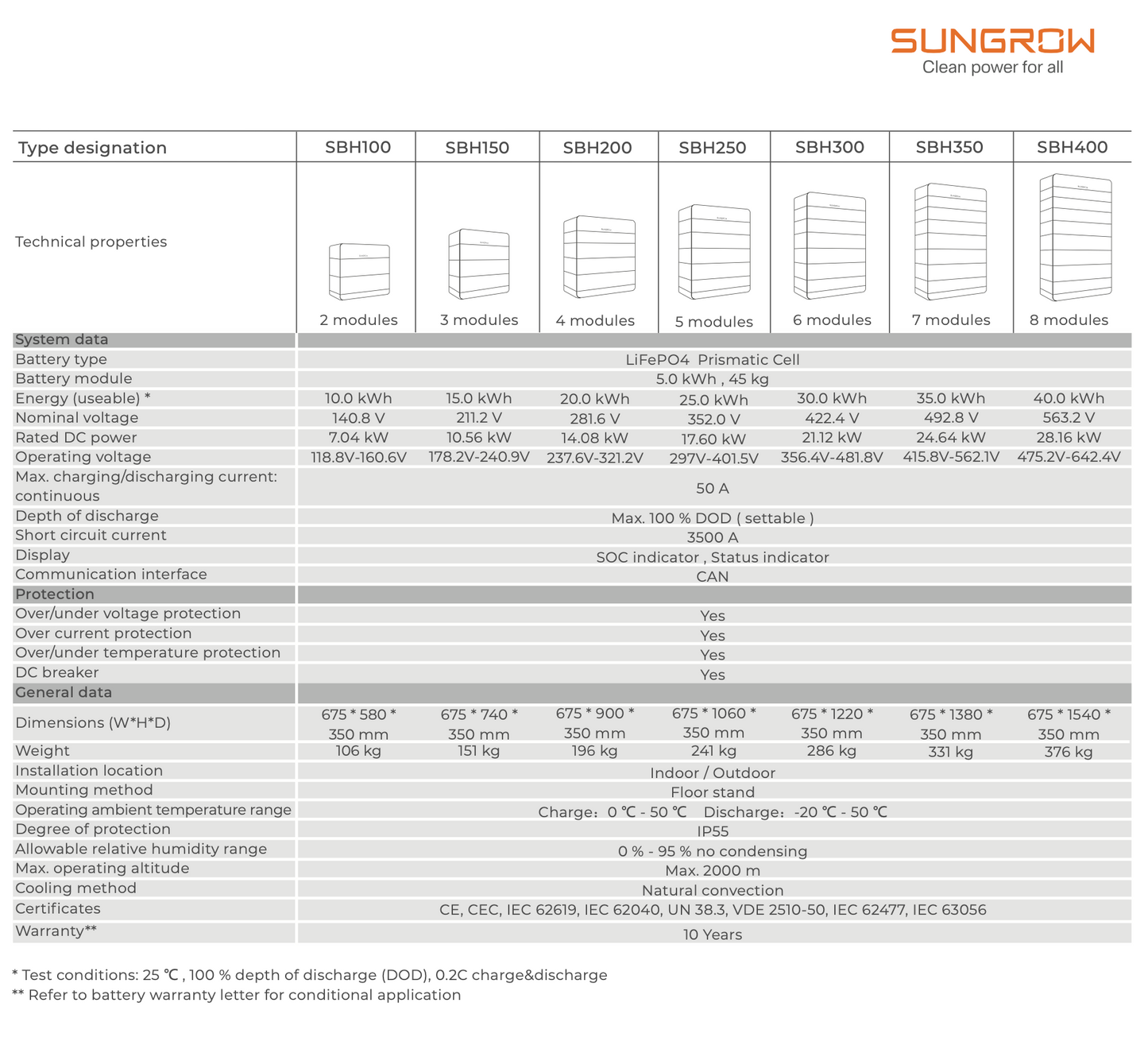

The usable capacity is 35 kWh (5kWh per module), with a nominal charging/discharging power of 24.64kW.
The battery has a protection class of IP55 and is therefore also suitable for protected outdoor installation. The temperature range of 0°C to 50°C must be observed.
Sungrow offers a 10-year warranty.
Certification according to VDE 2510-50, UN38.3, IEC 62040 and IEC 62619

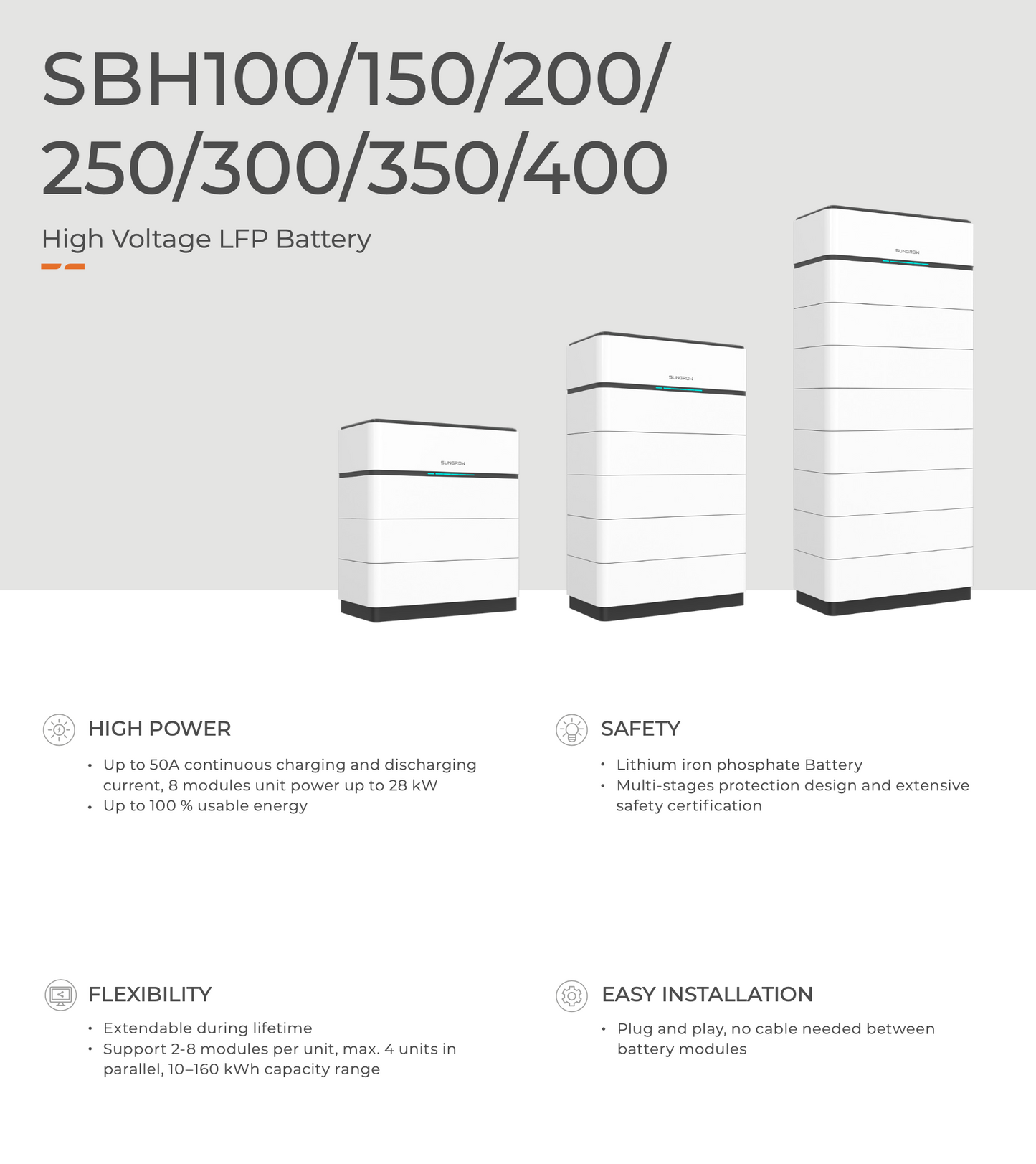

HIGH PERFORMANCE:
50A continuous charging and discharging current possible

SECURITY:
Multi-level protection concept with recognized certification

FLEXIBILITY:
Expandable

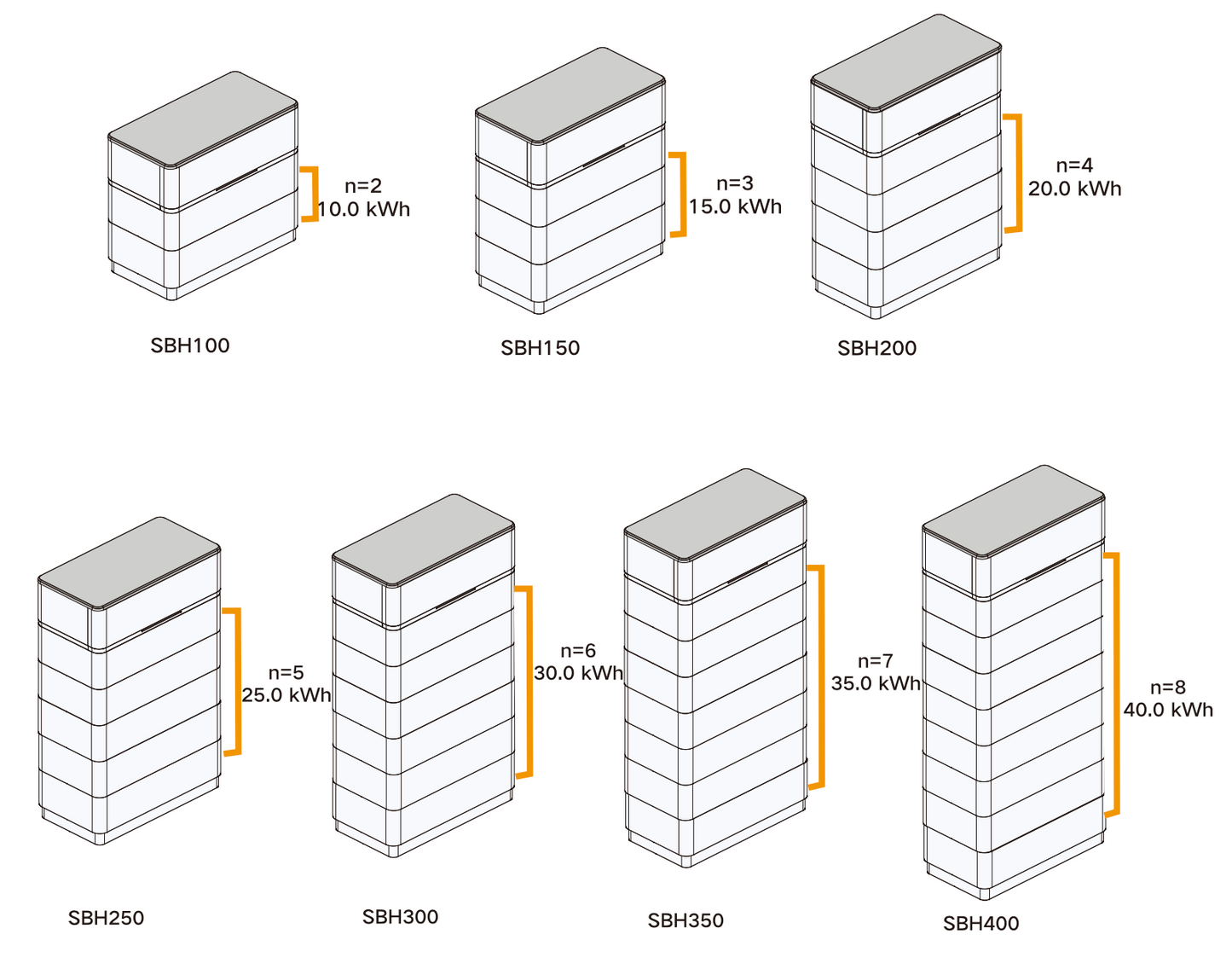

Supports 2 - 8 modules per unit
