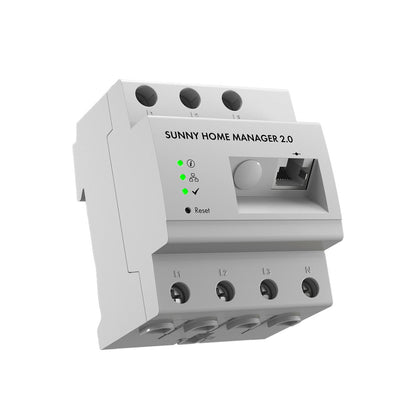

SMA Sunny Home Manager 2.0 HM-20 control centre
The successor to the successful Sunny Home Manager Bluetooth (HM-BT-10) represents a complete energy monitoring and energy management solution . The Sunny Home Manager 2.0 (HM-20) contains an integrated measuring device, so that for standard applications with power measurement at the grid connection point, a separate SMA Energy Meter is no longer required. The SMA Energy Meter remains available as a separate measuring unit for PV generation.
- SMA Energy Meter and Home Manager in one device
- Weather forecasts for load control and battery charging
- Communication with the SMA Sunny Portal

Product features
Energy management and measurement
The Sunny Home Manager 2.0 combines measurement at the grid connection point with control of compatible loads.
Forecast-based energy management
Weather forecasts and consumption data support the scheduling of loads and battery charging in the compatible SMA system.
A maximum of 24 devices can be connected to one Sunny Home Manager. The number of controllable components (radio-controlled sockets, heat pump or Mennekes wallbox) must not exceed 12.
With the SMA Home Manager 2.0 you get an SMA Energy Meter and an SMA Sunny Home Manager in just one device. This saves costs and installation time.
Features at a glance
- DIN rail mounting with 4 modules (4TE)
- 3-phase direct measurement up to 63 A
- Transformer measurement with 5 A output current
- maximum 24 devices, of which 12 devices with load control
- Visualisation of an Energy Meter as production meter
- Setup via the SMA Sunny Portal
Technical data
Product features SMA Sunny Home Manager 2.0
| Manufacturer | SMA |
|---|---|
| Weight | 0,3 kg |
Downloads
SMA_Sunny_Home_Manager_2.0_Datasheet.pdf
Subject to changes and errors, images similar.
