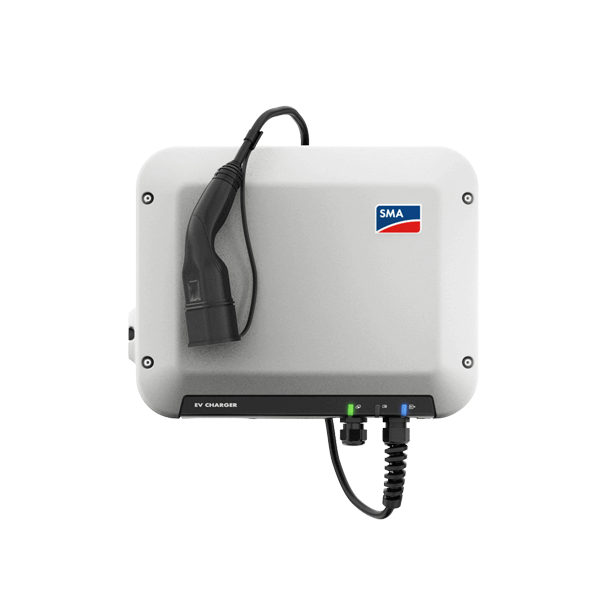

SMA EV Charger 7.4 kW, Cable 7.5m (EVC7.4-1AC-10)
EV charging with the SMA EV Charger 7.4 kW
With its wallboxes, SMA is also moving into the field of e-mobility. SMA wallboxes integrate ideally into the overall system environment and are perfectly compatible with the SMA Sunny Home Manager 2.0.
- Compatible with the SMA Sunny Home Manager 2.0
- Charging release via SMA Energy App
- Surplus charging with the SHM
- LED status display
- Communication via Ethernet/ WLAN
- SMA Smart Connected

Product features
Blackout protection
The SHM monitors the maximum power of the house connection and adjusts the wallbox if necessary.

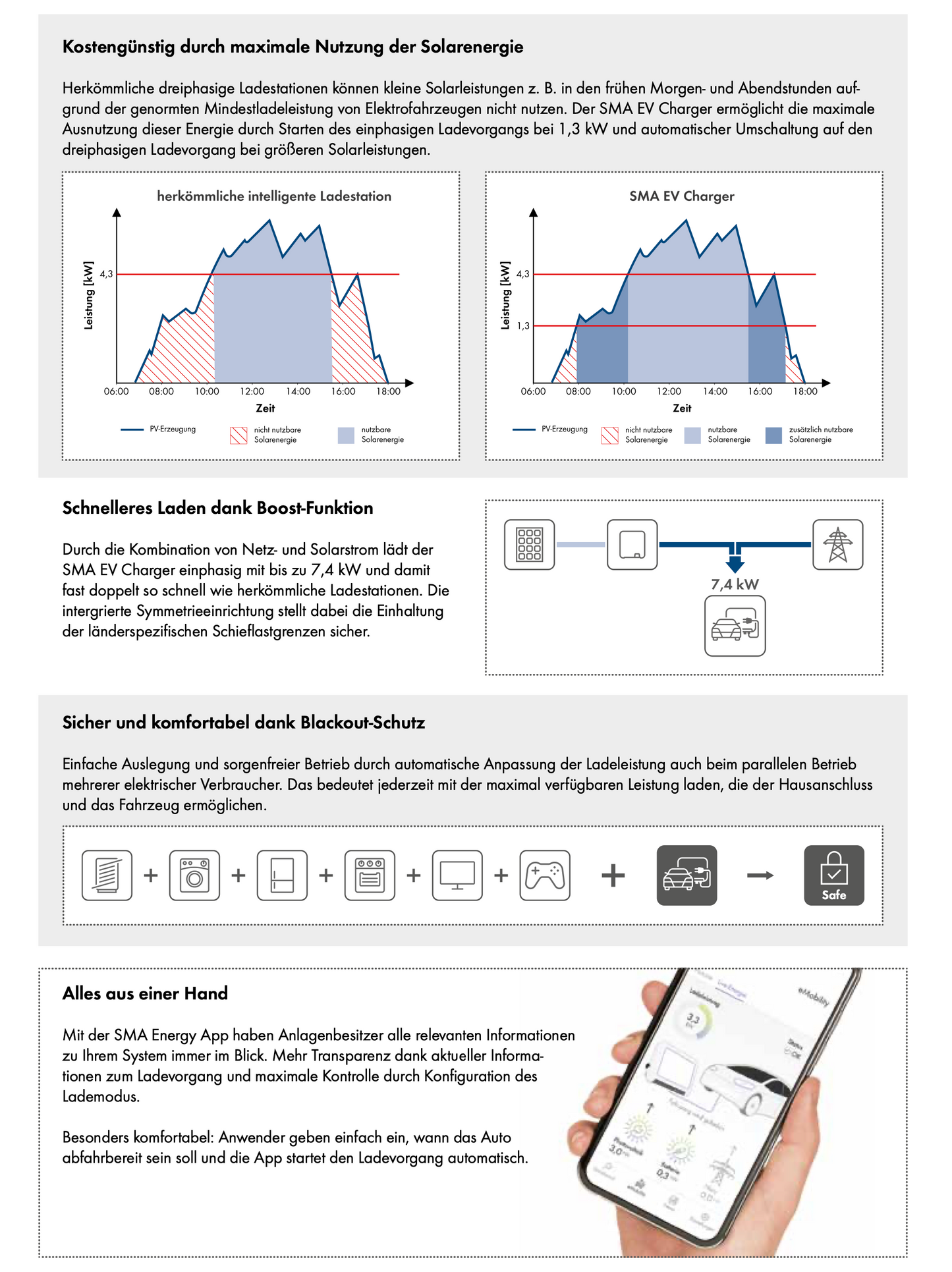

Boost function
By controlling the unbalanced load limit at the grid connection point, the wallbox can charge single-phase with up to 7.4 kW.
Features at a glance
- Single-phase AC charging up to max. 7.4 kW
- Configuration of the charging power from 1.4 - 7.4 kW
- DC residual current protection 6 mA integrated

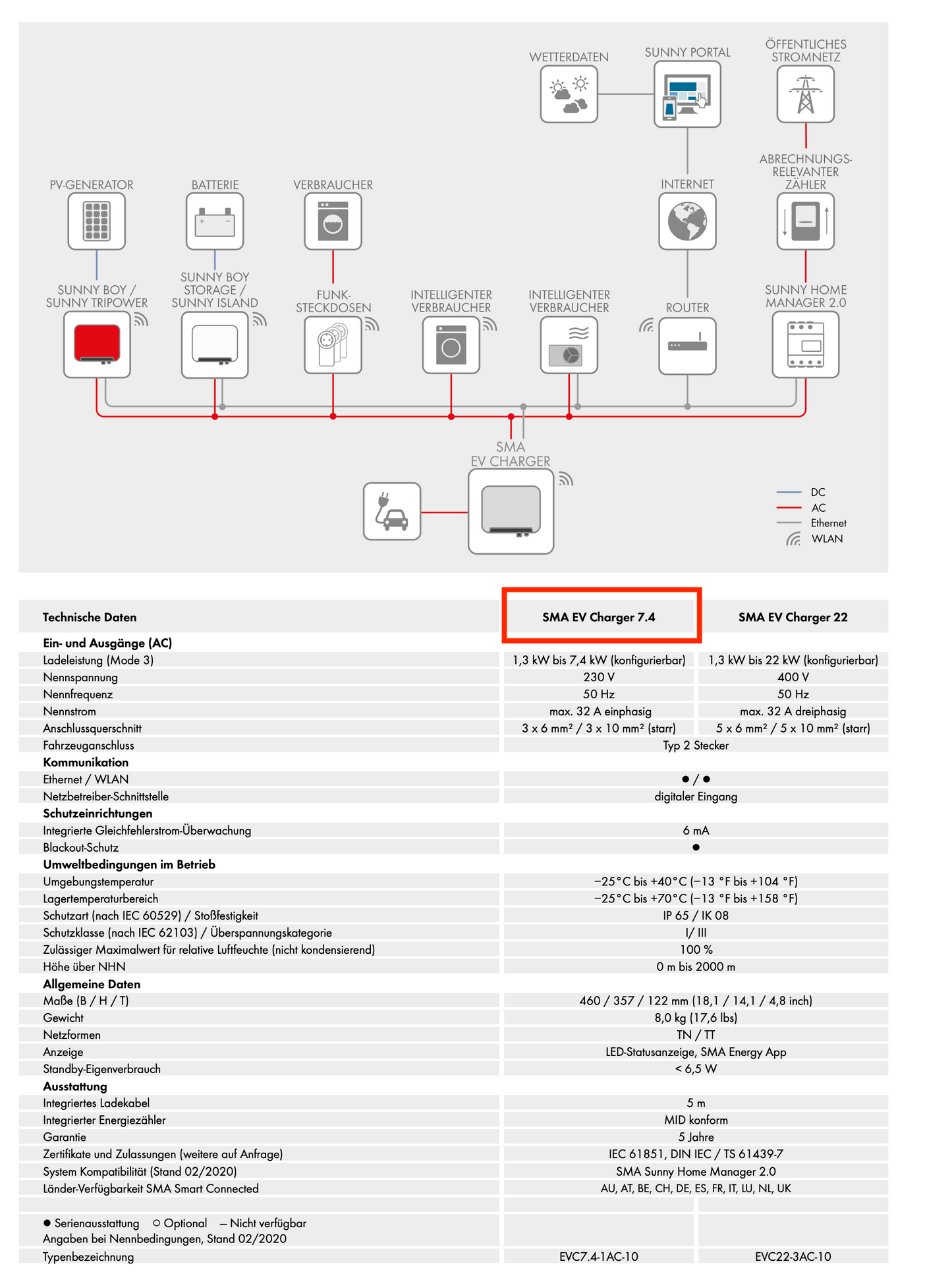

Technical data
| Manufacturer | SMA |
|---|---|
| Blackout protection | The SHM monitors the maximum power of the house connection and adjusts the wallbox if necessary. |
| Boost function | By controlling the unbalanced load limit at the grid connection point, the wallbox can charge single-phase with up to 7.4 kW. |
Features SMA EV Charger 7.4
| Product warranty | 5 years |
|---|
Scope of delivery
- EV Charger 7.4
- 7.5 m charging cable type 2
Subject to changes and errors, images similar.
