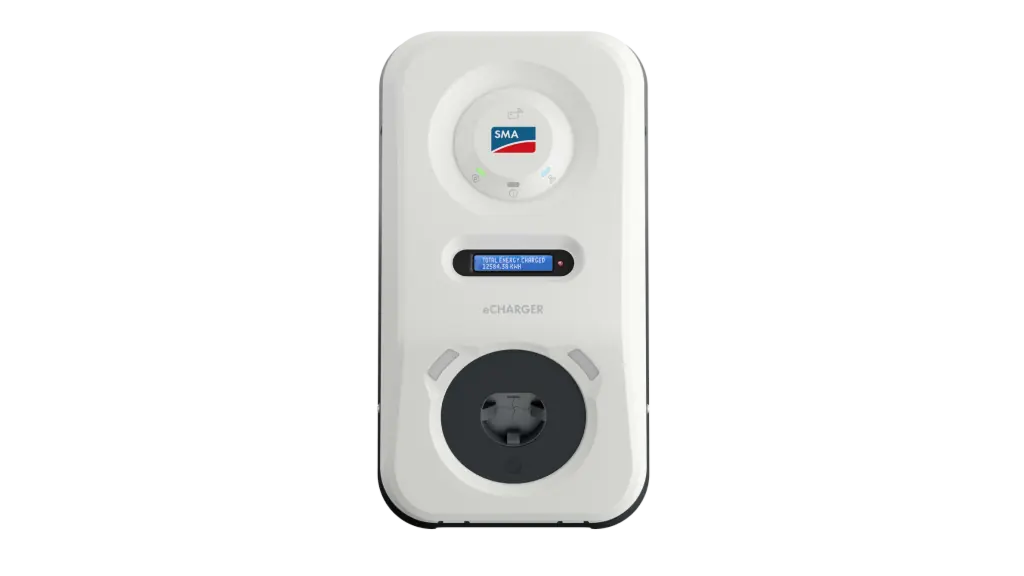

SMA eCharger 22 kW Wallbox - (EVC22-3AC-20)
The SMA eCharger EVC22-3AC-20 is an intelligent 22 kW wallbox for efficiently charging electric vehicles with solar power. In combination with a photovoltaic system and an SMA energy management system, the charging station enables optimal use of self-generated solar power and sustainably increases self-consumption.
Thanks to intelligent charging modes, automatic phase switching and forecast-based charging, the SMA eCharger adapts flexibly to the available solar power. The wallbox supports both PV surplus charging and fast charging with grid power, offering maximum flexibility for everyday use. Via the SMA eMobility Portal charging processes, users and energy flows can be conveniently managed and evaluated. Automatic over-the-air updates ensure that the system is always up to date.

Product features
22 kW wallbox
Adjustable charging power from 1.38 to 22 kW
PV-optimised charging
Maximum use of self-generated solar power
Intelligent charging modes
Forecast-based charging for the highest self-consumption rate
Automatic phase switching
Efficient charging even with low PV output
Features at a glance
- 22 kW wallbox: adjustable charging power from 1.38 to 22 kW
- PV-optimised charging: maximum use of self-generated solar power
- Intelligent charging modes: forecast-based charging for the highest self-consumption rate
- Automatic phase switching: efficient charging even with low PV output
- Boost function: faster charging by combining grid and solar power
- Multi-EVC support: operation of several SMA eChargers possible
- Convenient energy management: management via the SMA eMobility Portal
- Over-the-air updates: automatic software updates for long-term future-proofing
Technical data
| 22 kW wallbox | Adjustable charging power from 1.38 to 22 kW |
|---|---|
| PV-optimised charging | Maximum use of self-generated solar power |
| Intelligent charging modes | Forecast-based charging for the highest self-consumption rate |
| Automatic phase switching | Efficient charging even with low PV output |
| Boost function | Faster charging by combining grid and solar power |
| Multi-EVC support | Operation of several SMA eChargers possible |
| Convenient energy management | Management via the SMA eMobility Portal |
| Over-the-air updates | Automatic software updates for long-term future-proofing |
| Type 2 charging socket with shutter | Compatible with almost all European electric vehicles |
| 5-year manufacturer's warranty | High investment and planning security |
| Model designation | SMA eCharger EVC22-3AC-20 |
| Product type | AC wallbox / charging station for electric vehicles |
| Charging power (Mode 3) | 1.38–22 kW (configurable) |
| Rated frequency | 50 / 60 Hz |
| Max. charging current | 32 A per phase |
| Grid connection | 3-phase |
| Vehicle connection | Type 2 charging socket with shutter |
| Communication | SMA eMobility Portal, over-the-air updates |
| Warranty | 5 years |
| Dimensions (W × H × D) | 350 × 600 × 250 mm |
| Weight | 5,0 kg |
Scope of delivery
- 1 × SMA eCharger 22 kW wallbox EVC22-3AC-20
- 1 × mounting bracket
- 1 × installation and operating instructions
- 1 × mounting material
Subject to changes and errors, images similar.
