Marstek Venus A - 2.12 kWh All-in-One Balcony Power Plant with Battery - 10-Year Warranty
Marstek VENUS A – your all-in-one balcony power plant battery with 2.12 kWh (expandable to 12.72 kWh)

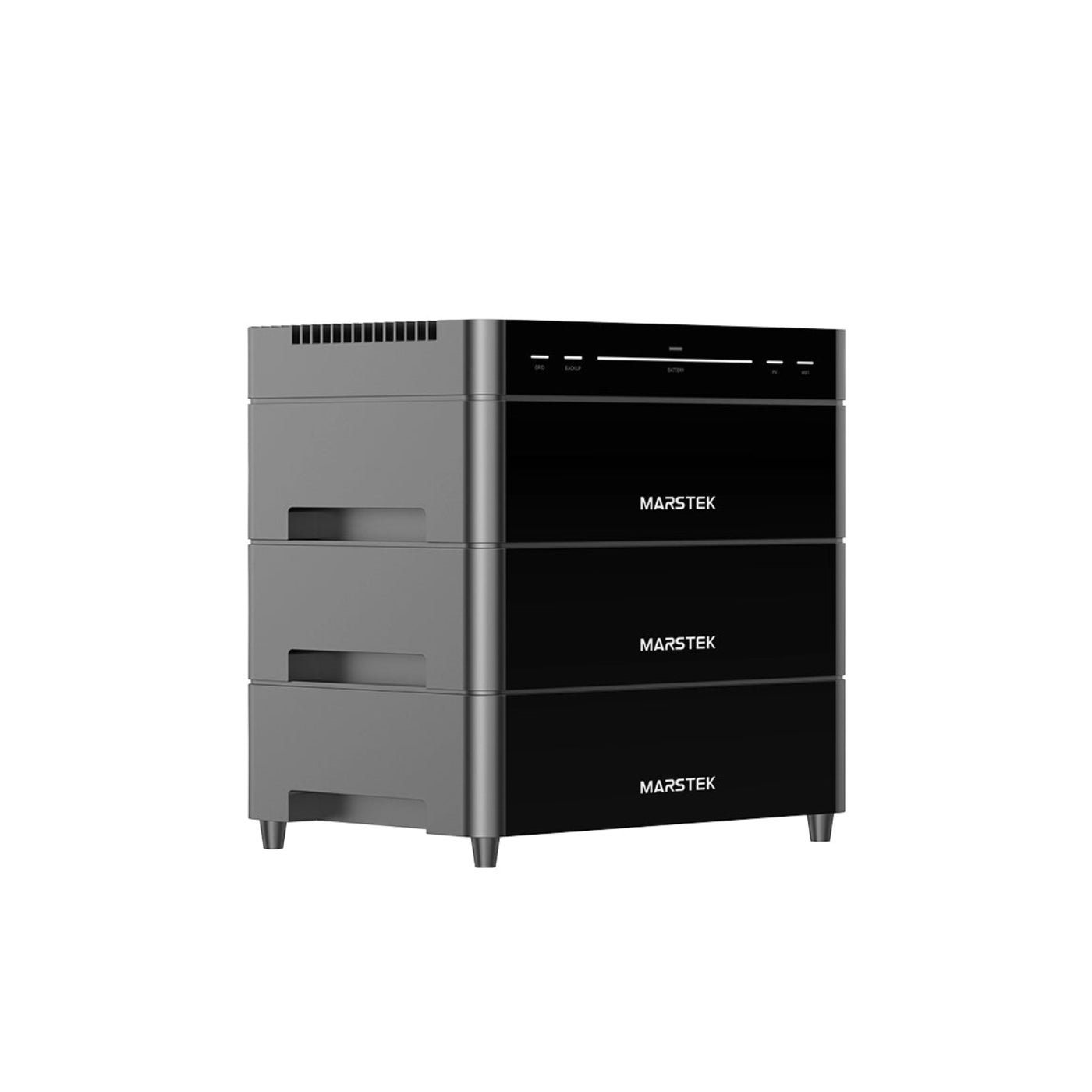

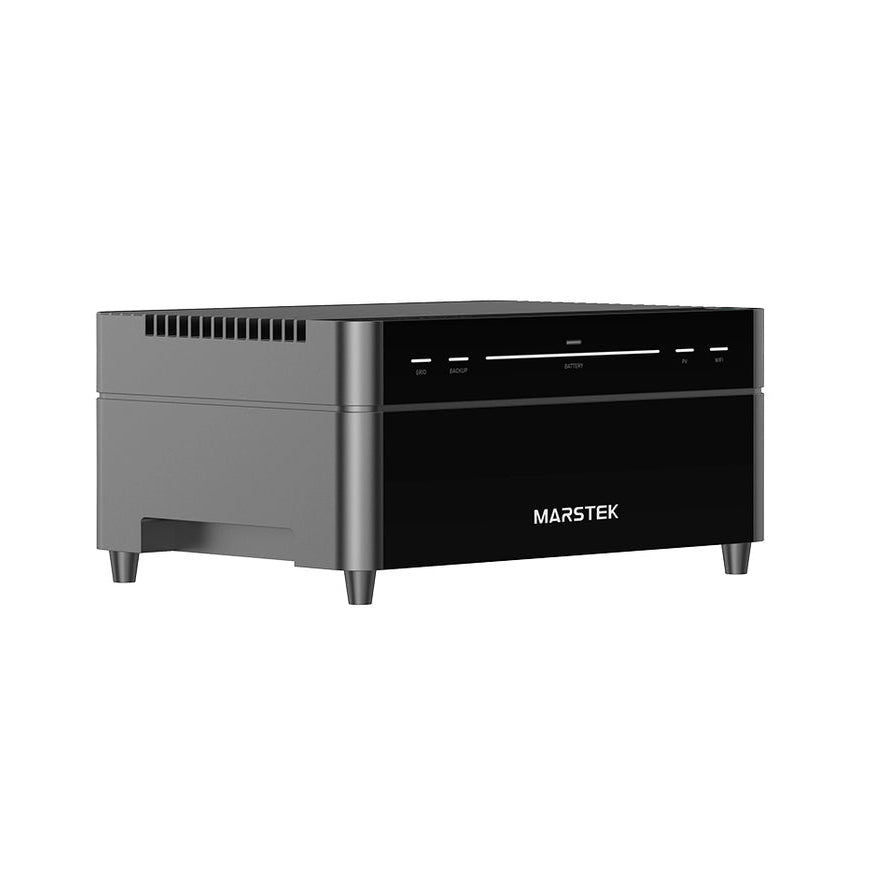

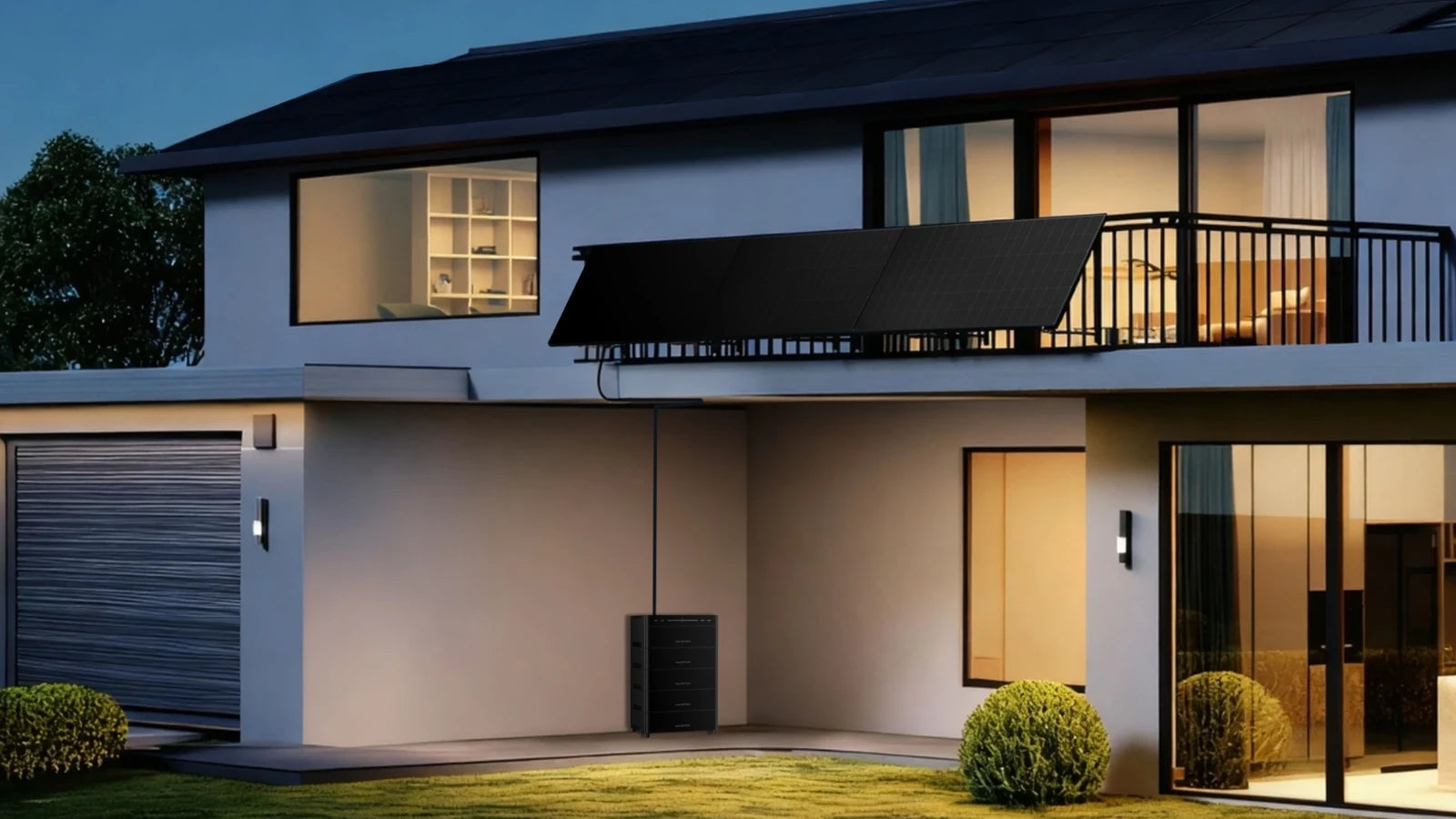

The Marstek Venus-A modular balcony power plant battery 2.12 kWh is a modern all-in-one solution with integrated inverter and modularly expandable LiFePO4 storage. It was developed specifically for balcony power plants and small PV systems and makes it possible to store solar power intelligently and use it at a later time. With a starting capacity of 2,12 kWh, expandable up to 12,72 kWh, the system grows flexibly with your energy needs.

Product features
All-in-one design
Integrated inverter and battery storage in one compact system.
Modular battery system

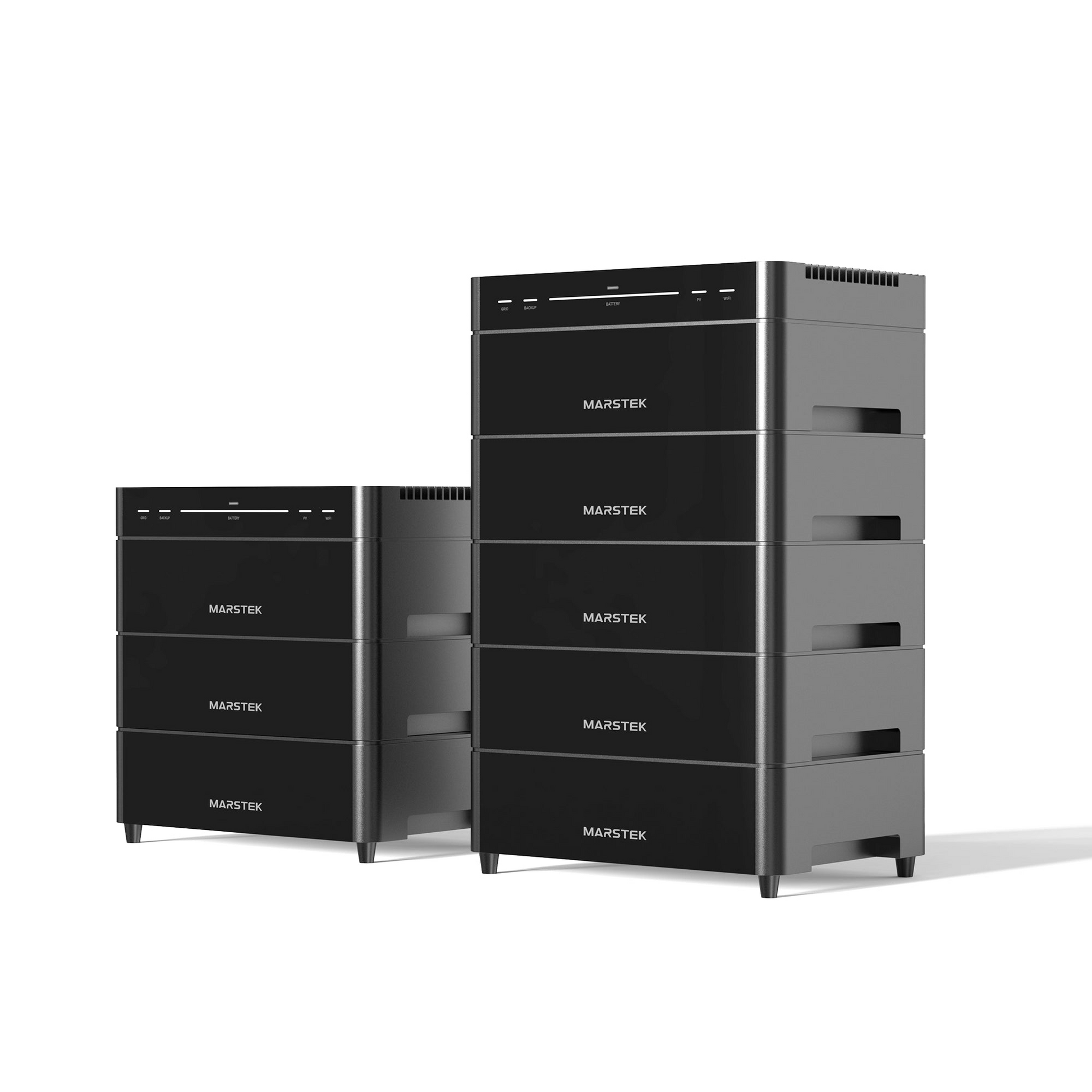

Starts at 2.12 kWh, expandable to 12.72 kWh – ideal for growing energy needs.

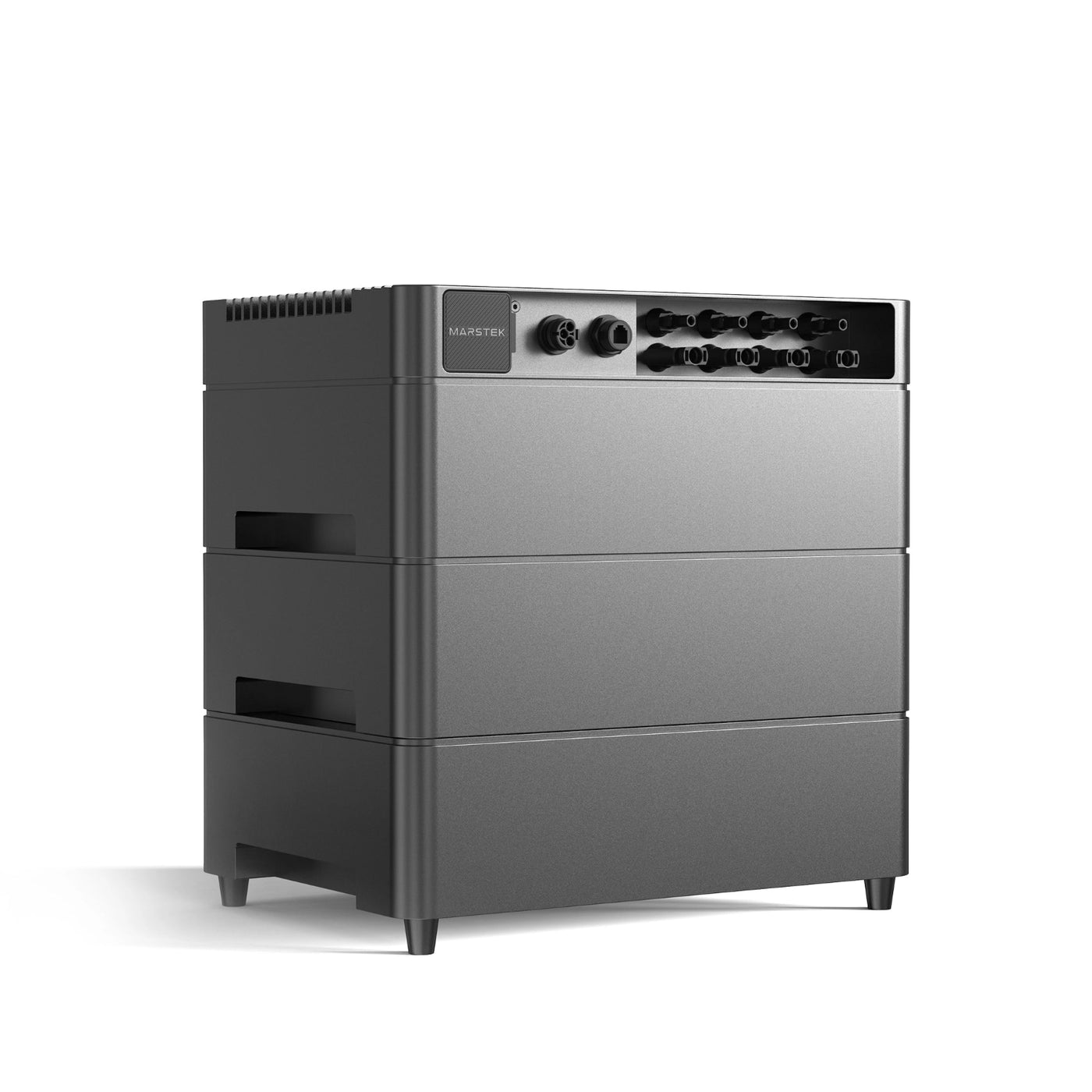

4 MPPT solar inputs
Up to 2,400 W PV input power with four independent MPPT channels.
1200 W bidirectional inverter
Supports grid charging and feed-back for flexible energy management.

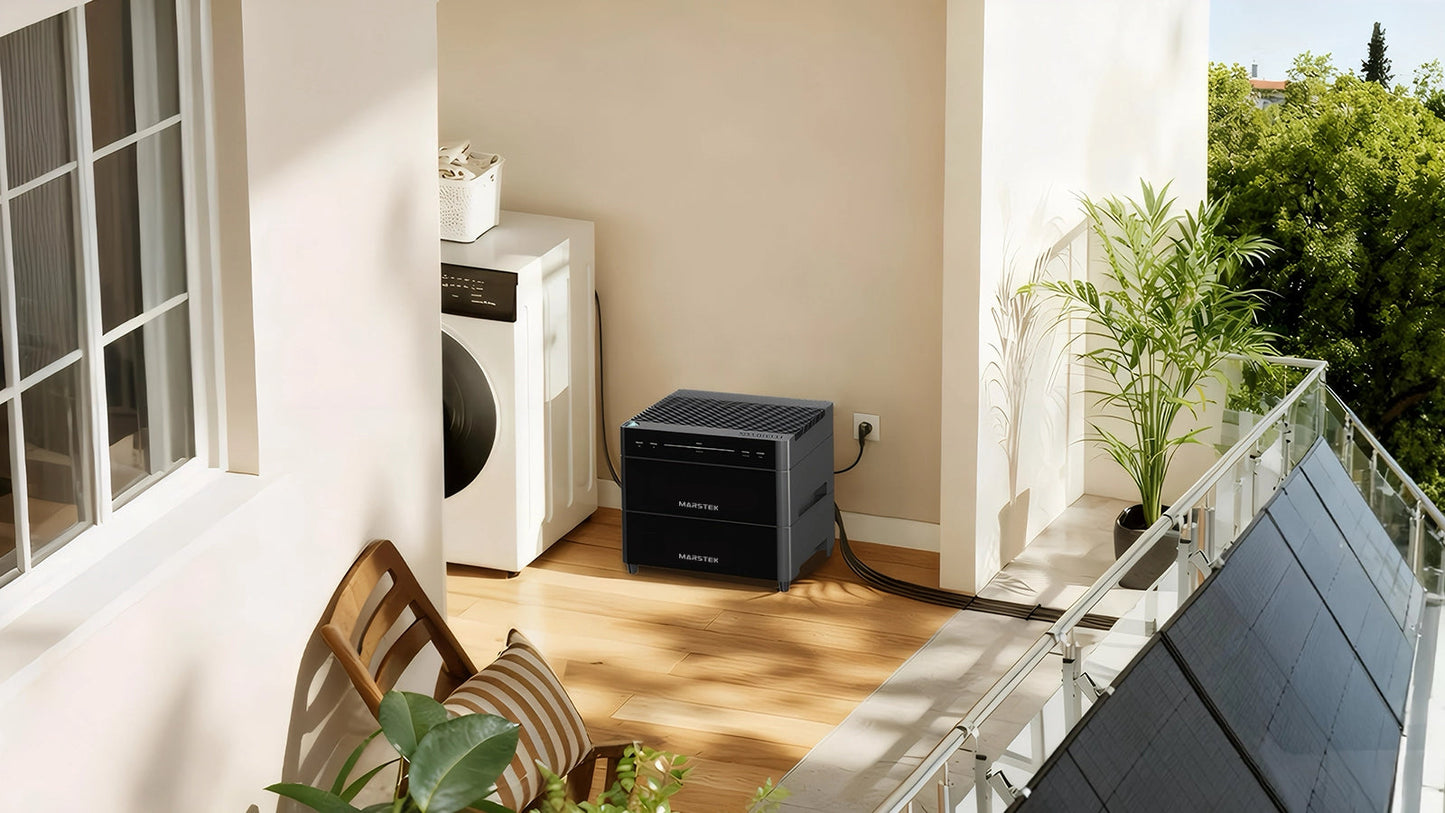

Four independent MPPT solar inputs with up to 2,400 W PV input powerensure optimal use of solar energy – even with different module orientations. The bidirectional 1200 W inverter enables both grid charging and feed-back, while the emergency power function (EPS) with up to 1200 W continuous power (peak 1440 W) keeps important loads supplied during a power outage. Thanks to IP65 protection classand a wide temperature range, the Venus-A is ideal for indoor and outdoor use.

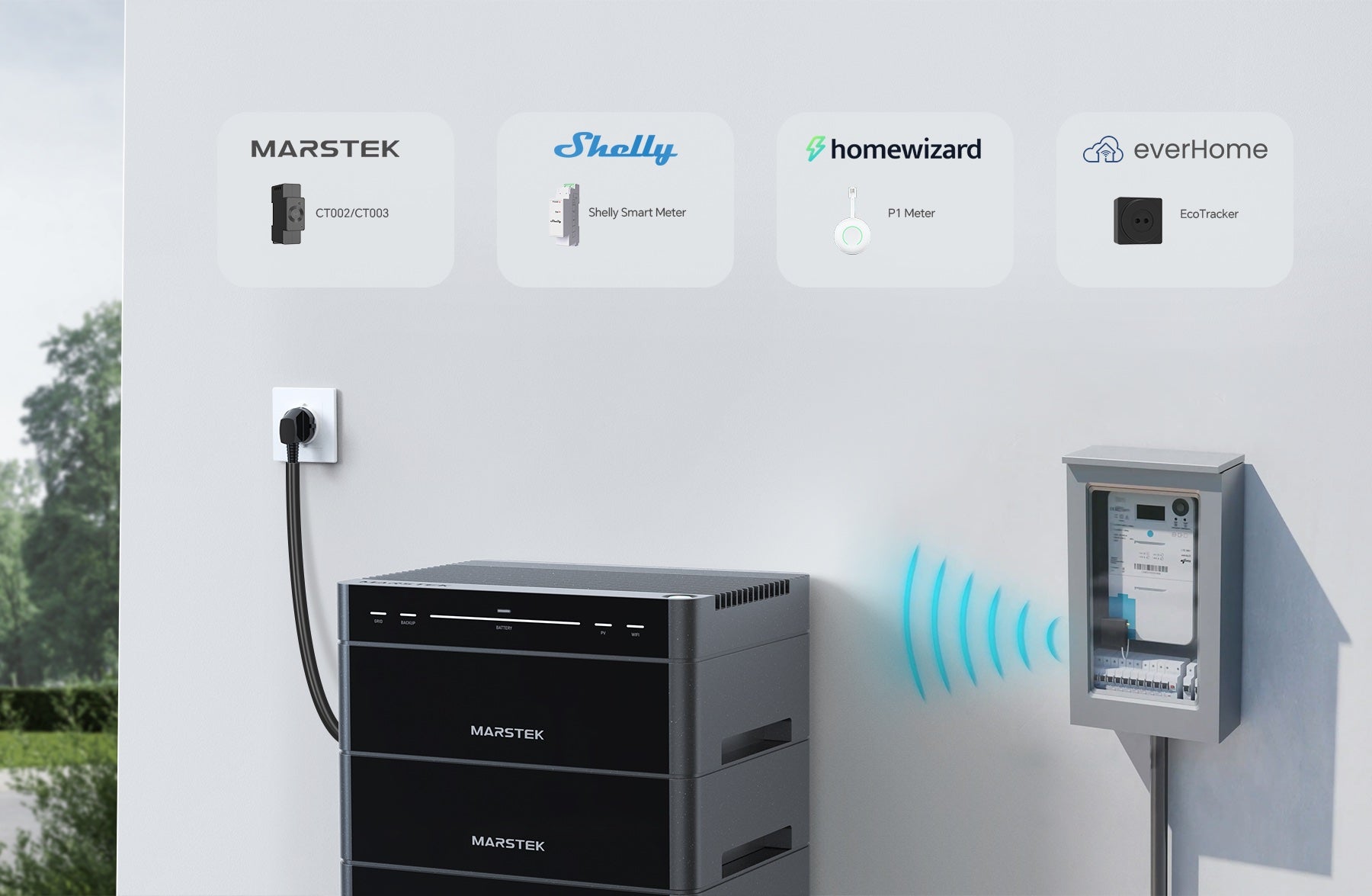

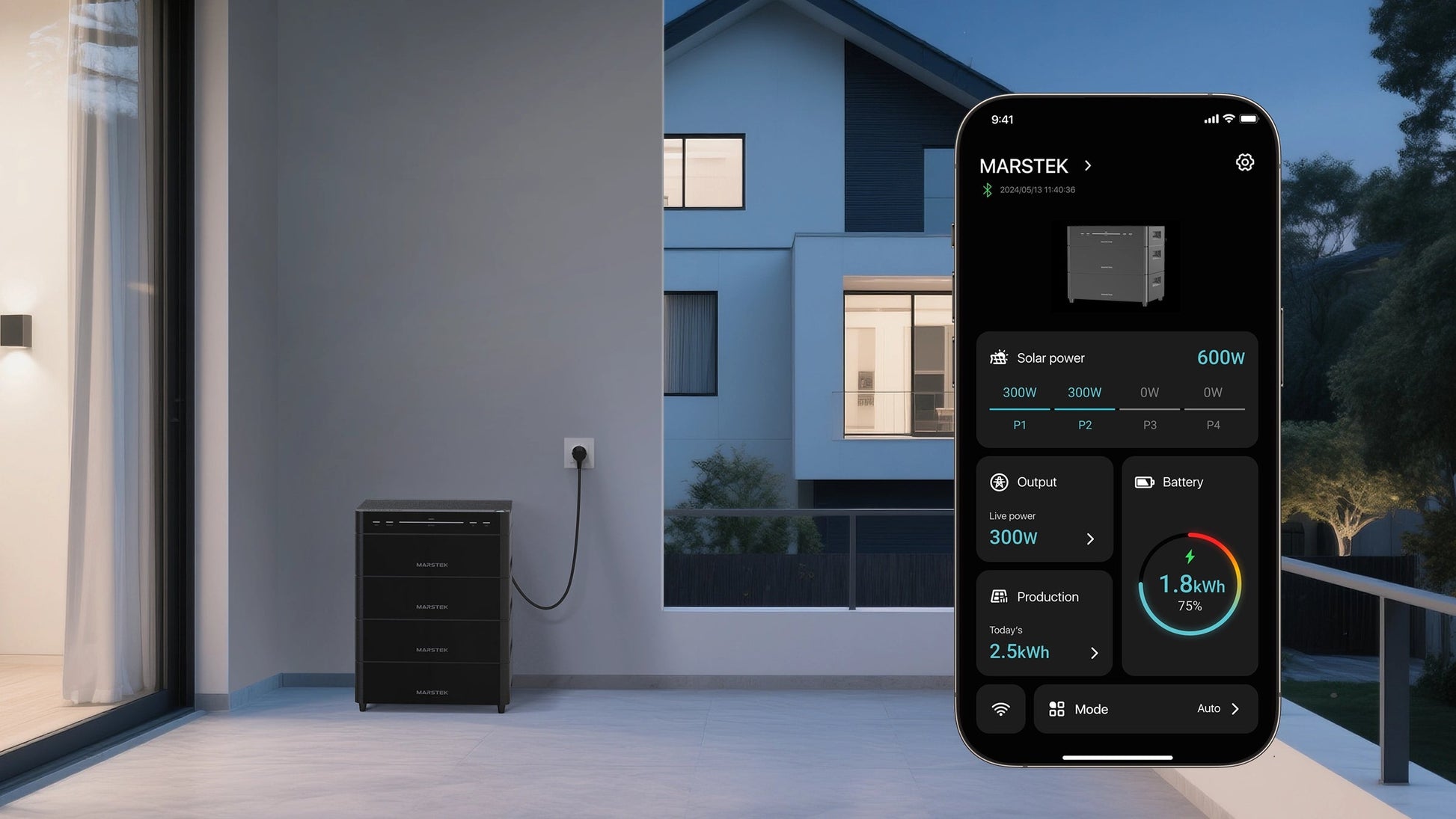

With the integrated MARSTEK Intelligence (AI)energy management and the AI mode charging and discharging processes are automatically optimised to maximise self-consumption and reduce electricity costs. Via Bluetooth, WLAN and Ethernet the system can be conveniently monitored and controlled via the app. Thanks to its compatibility with smart meters from Marstek, Shelly, Homewizard and EcoTracker the Venus-A integrates seamlessly into modern smart home environments.
Features at a glance
- All-in-one design: integrated inverter and battery storage in one compact system.
- Modular battery system: starts at 2.12 kWh, expandable to 12.72 kWh – ideal for growing energy needs.
- 4 MPPT solar inputs: up to 2,400 W PV input power with four independent MPPT channels.
- 1200 W bidirectional inverter: supports grid charging and feed-back for flexible energy management.
- Emergency power supply: up to 1200 W (peak 1440 W) and < 15 ms EPS switchover time for uninterrupted operation.
- MARSTEK Intelligence (AI): AI mode automatically optimises charging processes, self-consumption and electricity costs.
- Communication & monitoring: Bluetooth, WLAN and Ethernet for stable data transmission and app control.
- Smart meter compatible: supports Marstek, Shelly, Homewizard and EcoTracker .
Technical data
| All-in-one design | Integrated inverter and battery storage in one compact system. |
|---|---|
| Modular battery system | Starts at 2.12 kWh, expandable to 12,72 kWh – ideal for growing energy needs. |
| 4 MPPT solar inputs | Up to 2,400 W PV input power with four independent MPPT channels. |
| 1200 W bidirectional inverter | Supports grid charging and feed-back for flexible energy management. |
| emergency power supply | Up to 1200 W (peak 1440 W) and < 15 ms EPS switchover time for uninterrupted operation. |
| MARSTEK Intelligence (AI) | AI mode automatically optimises charging processes, self-consumption and electricity costs. |
| Communication & monitoring | Bluetooth, WLAN and Ethernet for stable data transmission and app control. |
| Smart meter compatible | Supports Marstek, Shelly, Homewizard and EcoTracker. |
| Durable LFP technology | LiFePO4 batteries with > 6,000 cycles and up to 15 years of design life. |

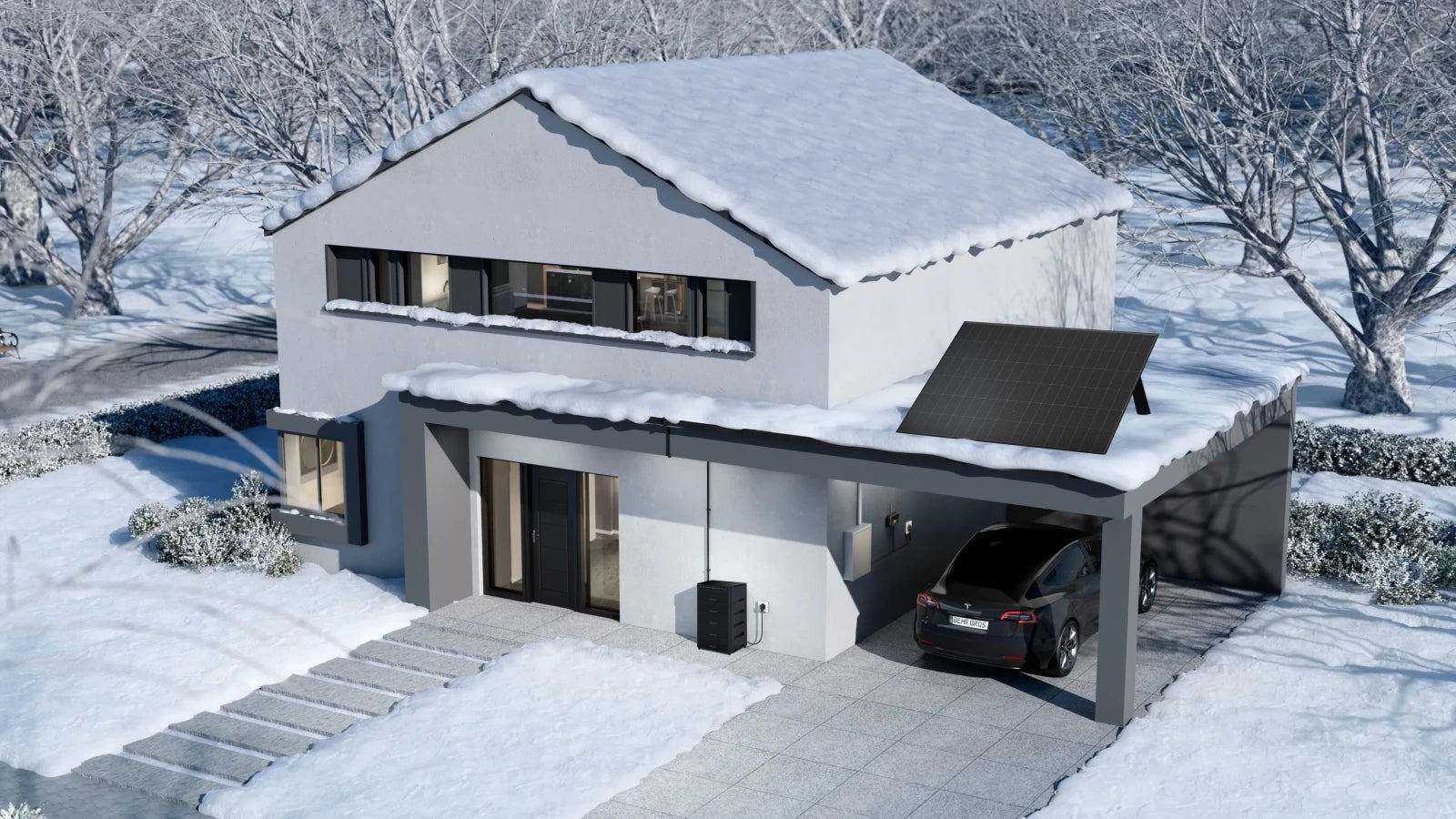

| Robust design | Protection class IP65, dust- and waterproof, for use from approx. −20 °C to +55 °C. |
| Plug & play | Easy commissioning and installation in a few minutes. |
| Model | Venus-A |
| System type | All-in-one balcony power plant battery, AC-coupled |
| Total capacity (system) | 2,12 – 12,72 kWh |
| Starting capacity | 2,12 kWh |
| Battery technology | LiFePO4 (LFP) |
| Cycle life | > 6.000 |
| Design life | up to 15 years |
| PV input power (DC) | max. 2,400 W |
| Number of MPPTs | 4 |
| MPPT start voltage | 22 V |
| PV voltage range | 16 – 60 V |
| Short-circuit current | 20 A |
| MPPT efficiency | up to 99.8% |
| Inverter power (AC) | 1,200 W (bidirectional) |
| Emergency power output (EPS) | 1,200 W, peak 1,440 W |
| EPS switchover time | < 15 ms |
| Phase connection | 1-phase |
| Protection class | IP65 |
| Operating temperature | approx. −20 °C to +55 °C |
| Communication | Bluetooth, WLAN, Ethernet |
| App support | Yes |
| Compatible smart meters | Marstek, Shelly, Homewizard, EcoTracker |
| UN number | 3480 (lithium-ion batteries) |
| Dangerous goods class | Class 9, code M4 |
| Manufacturer | MARSTEK |
| RoHS | compliant |
| EAN/GTIN | 6951525704970 |
Subject to changes and errors, images similar.
