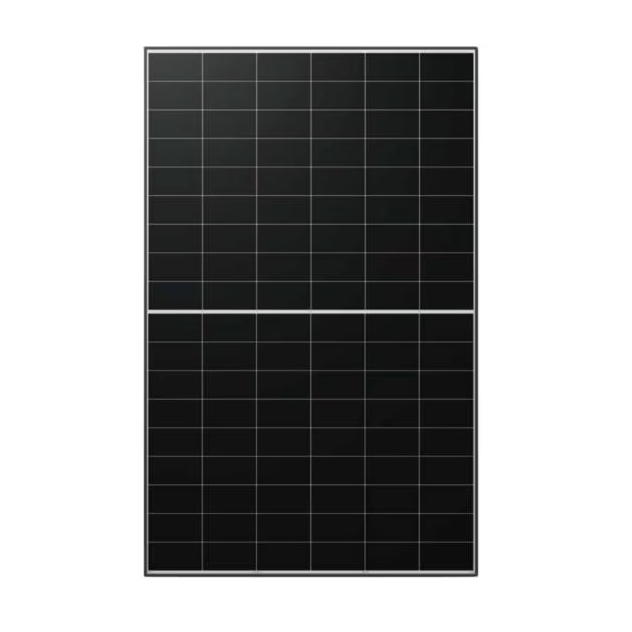

LONGi Hi-MO X10 Explorer LR7-54HVH-490M 490W
The LONGi Hi-MO X10 Explorer 490W is a powerful latest-generation monocrystalline solar module developed for maximum energy yields in residential and commercial photovoltaic systems. With a module power of 490 watts and state-of-the-art cell technology, it offers high efficiency and reliable power generation even under demanding conditions.
The module impresses with its high-quality design with black aluminium frame and panda backsheet, ideally combining functionality and appearance. The robust construction ensures a long service life and high resistance to environmental influences.

Thanks to the pre-assembled EVO2 connector system and the 1200 mm long connection cables the module can be installed quickly and easily.
Product benefits
Glass-backsheet, monofacial
Single glass: 3.2 mm coated tempered glass according to the datasheet.
Cell technology
108 cells (6×18), BC cell technology, module efficiency 24.01% at 490 Wp.
Electrical characteristics
Vmpp 33.51 V / Impp 14.63 A, Voc 40.52 V / Isc 15.33 A (STC), max. system voltage 1500 V DC.
Warranty
15 years material/workmanship, 30-year linear performance warranty according to the datasheet.
Features at a glance
- Cell technology: HPBC 2.0 Cell design: half cell Number of cells: 108
- Length: 1,800 mm Width: 1,134 mm Height: 30 mm Weight: 21.6 kg
- DC connection: EVO2A Length of connection cable: 1.2 m Maximum system voltage: 1,500 V Maximum series fuse current: 25 A
- Max. design load push: 3,600 N/m² Max. design load pull: 1,600 N/m²
- Warranty: 15 years material/workmanship, 30 years performance (datasheet)
Technical data
| Manufacturer | LONGi |
|---|---|
| Item no. | 2005700182 |
| Rated power (STC) | 490 Wp |
| Module efficiency | 24,01 % |
| Power per area | 240.05 Wp/m² |
| Cell technology | HPBC 2.0 |
| Cell design | Half cell |
| Number of cells | 108 |
| Length | 1.800 mm |
| Width | 1.134 mm |
| Height | 30 mm |
| Weight | 21,6 kg |
| DC connection | EVO2A |
| Length of connection cable | 1,2 m |
| Maximum system voltage | 1.500 V |
| Maximum series fuse current | 25 A |
| Max. design load push | 3,600 N/m² Max. design load pull: 1,600 N/m² |
| Module construction (datasheet) | Single glass (glass-backsheet), not bifacial |
| Module efficiency | 24,01 % |
| Vmpp / Impp (STC) | 33,51 V / 14,63 A |
| Voc / Isc (STC) | 40,52 V / 15,33 A |
| Dimensions | 1800 × 1134 × 30 mm |
| Weight | 21,6 kg |
| Glass | Single glass, 3.2 mm coated tempered glass |
| Warranty | 15 yrs product / 30 yrs performance |
Source of datasheet values: LONGi datasheet LR7-54HVH 480~500M (BGV03 2025-11-06, copy Apollogrid)
Subject to changes and errors, images similar.
