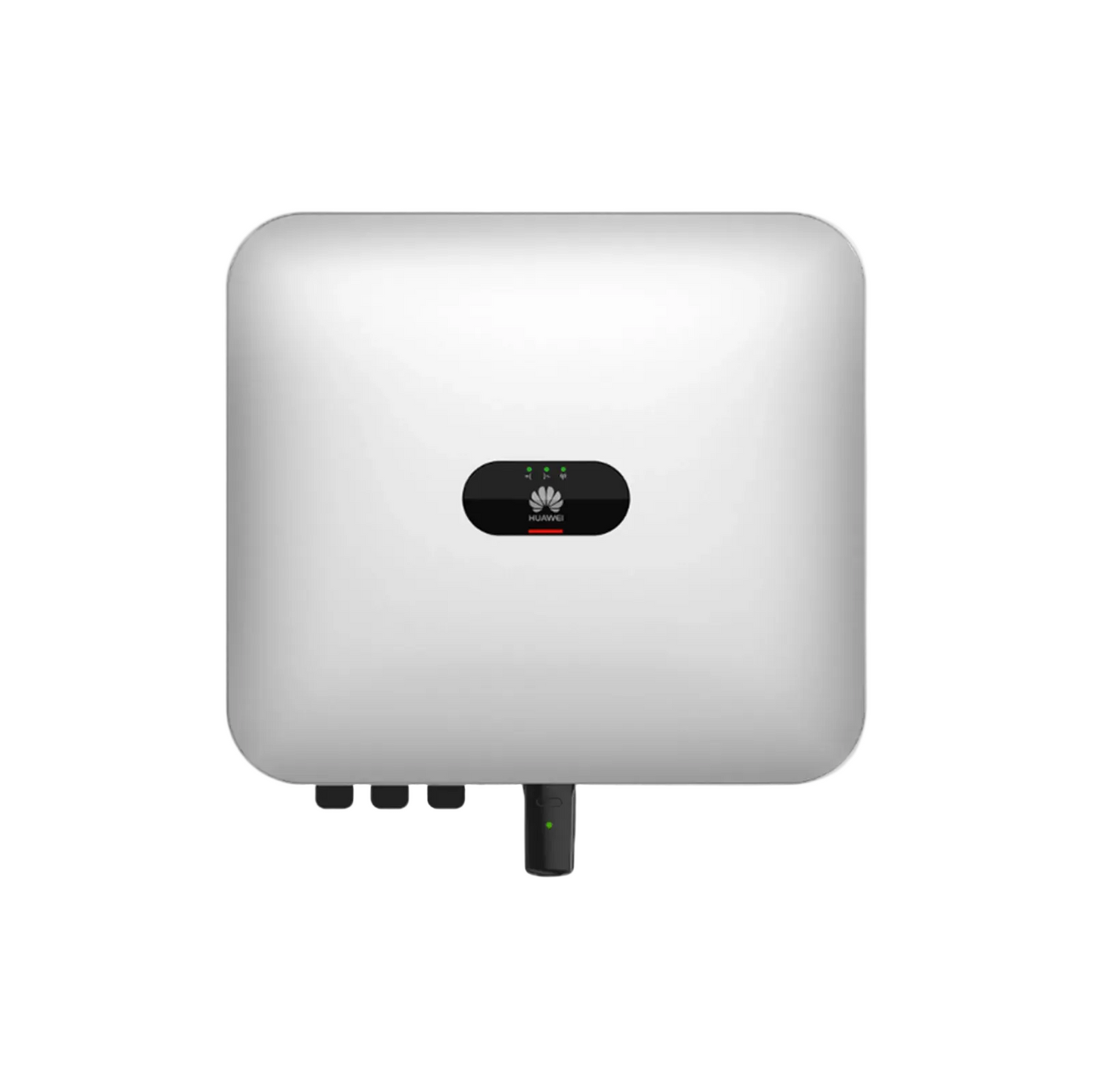

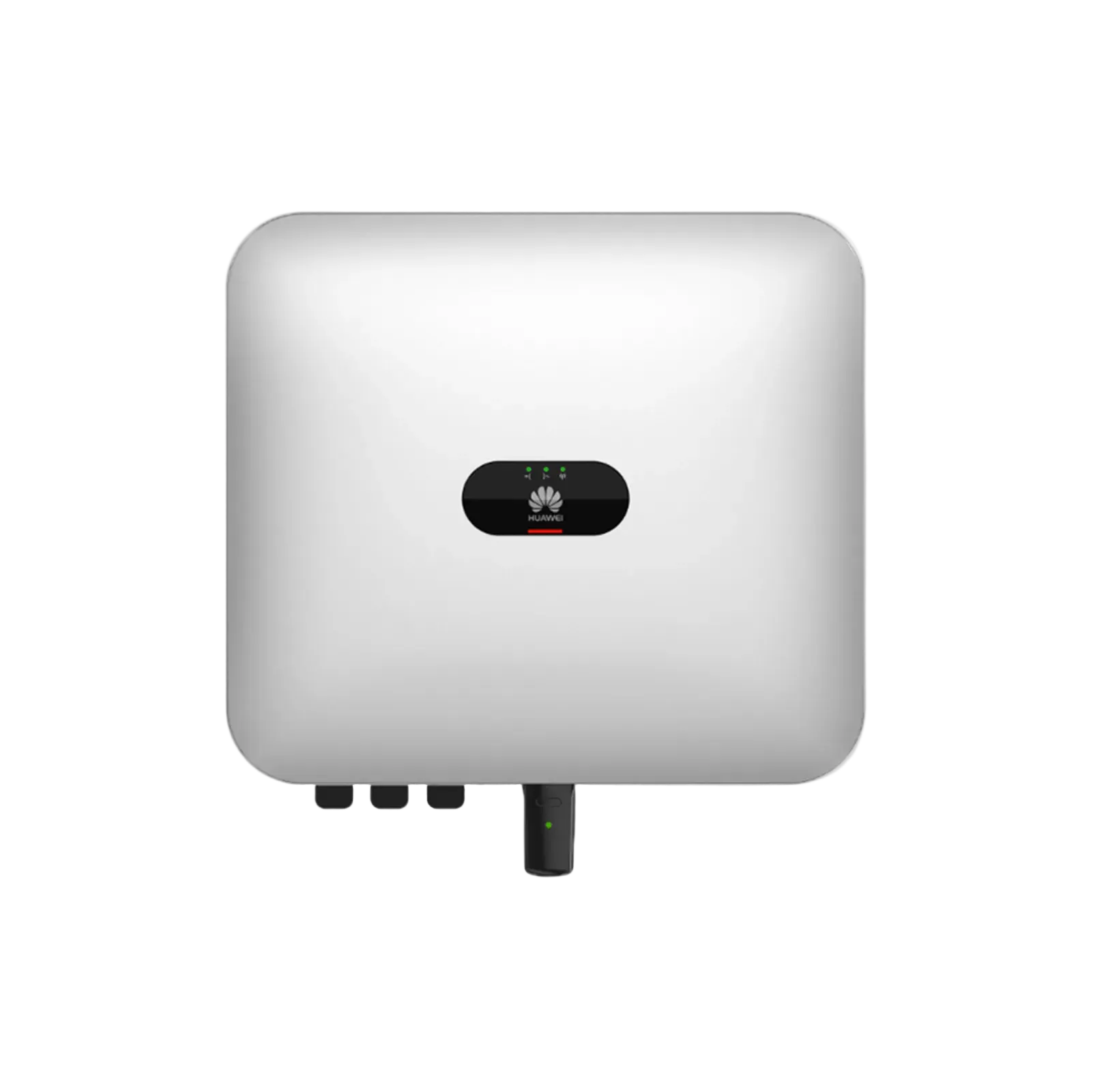

Huawei SUN2000-5KTL-M1 5kW
Huawei SUN2000-5KTL-M1 HC Hybrid Inverter 5 kW
The Huawei SUN2000-5KTL-M1 HC hybrid inverter is the ideal solution for residential photovoltaic systems and small commercial applications with a focus on self-consumption optimisation, efficiency and intelligent storage integration. With 5 kW AC power, high energy efficiency and smart control, the inverter ensures reliable and optimal use of your solar power.

Product features
Inverter type
Hybrid inverter
Grid connection
3-phase
Rated AC power
5 kW Maximum DC power: 7.5 kWp
DC voltage range
140–1.100 V
Thanks to integrated hybrid technology the inverter is fully compatible with Huawei LUNA2000 high-voltage battery storage, allowing you to maximise self-consumption and sustainably increase energy independence. The multiple MPP trackers enable stable solar yields even with different roof orientations or more complex PV layouts.
Maximum safety is ensured by modern protection functions such as the integrated AFCI arc fault detection, surge protection and intelligent system monitoring. Via the convenient Huawei FusionSolar monitoring your PV system can be easily monitored and efficiently controlled at any time.
- High efficiency of up to 98.4% for maximum solar yields
- Directly compatible with Huawei LUNA2000 high-voltage batteries
- Integrated AFCI arc fault detection for increased safety
- 2 MPP trackers for optimal performance with different roof orientations
- Flexible communication via RS485, WLAN and Ethernet
- Robust IP65 housing for indoor and outdoor use
- Compact design weighing only 17 kg for easy installation
- Intelligent system monitoring via Huawei FusionSolar
- 10-year manufacturer's warranty
Technical data
| Manufacturer | Huawei |
|---|---|
| Model designation | Huawei SUN2000-5KTL-M1 HC |
| Inverter type | Hybrid inverter |
| Grid connection | 3-phase |
| Rated AC power | 5 kW Maximum DC power: 7.5 kWp |
| DC voltage range | 140–1.100 V |
| Max. discharge power | 5,5 kW |
| MPP trackers | 2 |
| Battery compatibility | Huawei LUNA2000 high-voltage battery |
| Communication | RS485, WLAN, Ethernet |
| Protection class | IP65 |
| Dimensions (W × H × D) | 470 × 525 × 146,5 mm |
| Weight | 17 kg |
| Emergency power | Not available |
| Backup power | single-phase with PV charging |
| Warranty | 10 years |
Subject to changes and errors, images similar.
