Huawei SUN2000-3KTL-M1 3kW

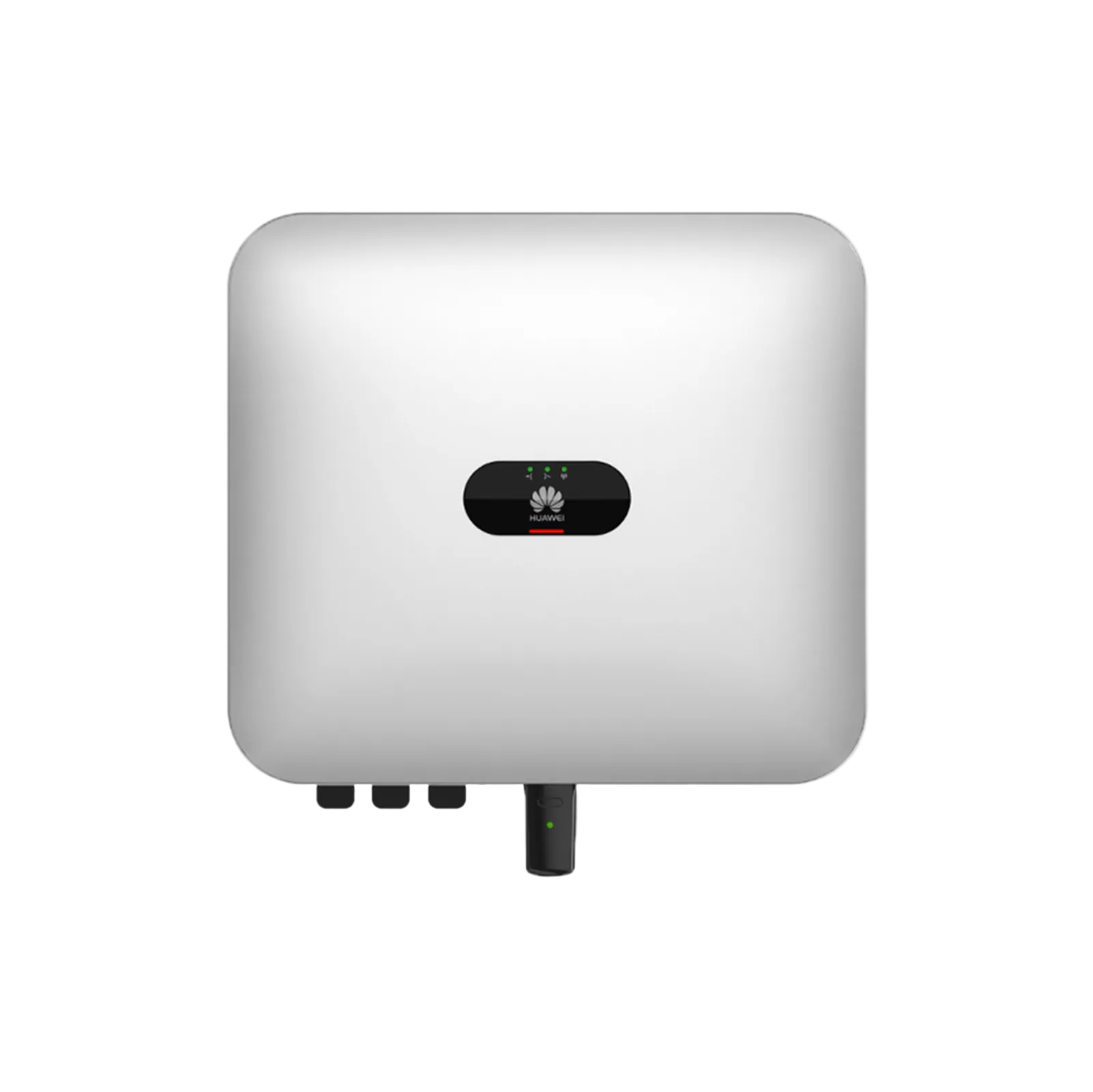

Huawei SUN2000-3KTL-M1 HC Hybrid Inverter 3 kW
The Huawei SUN2000-3KTL-M1 HC hybrid inverter is the ideal solution for residential photovoltaic systems and detached houses with low to medium energy demand. With 3 kW AC power, up to 4.5 kWp DC input power and a European efficiency of 97.5% the inverter ensures efficient and reliable use of your solar power.

Product features
Inverter type
Hybrid inverter
Grid connection
3-phase
Rated AC power
3 kW
Maximum DC power
4,5 kWp
Thanks to integrated hybrid technology the inverter is fully compatible with Huawei LUNA2000 high-voltage battery storage, allowing you to optimise self-consumption and increase energy independence. Two MPP trackers enable stable yields even with different roof orientations or partial shading.
Maximum safety is ensured by intelligent functions such as the integrated AFCI arc fault detection, surge protection and convenient monitoring via the Huawei FusionSolar monitoring portal.
- High efficiency of up to 98.2% for efficient use of solar power
- Directly compatible with Huawei LUNA2000 high-voltage batteries
- Integrated AFCI arc fault detection for greater safety
- 2 MPP trackers for stable yields with different roof orientations
- Flexible communication via RS485, WLAN and Ethernet
- Compact design weighing only 17 kg for easy installation
- IP65 protection rating for indoor and outdoor use
- 10-year manufacturer's warranty
Technical data
| Manufacturer | Huawei |
|---|---|
| Model designation | Huawei SUN2000-3KTL-M1 HC |
| Inverter type | Hybrid inverter |
| Grid connection | 3-phase |
| Rated AC power | 3 kW |
| Maximum DC power | 4,5 kWp |
| DC voltage range | 140–1.100 V |
| MPP trackers | 2 |
| Battery compatibility | Huawei LUNA2000 high-voltage battery |
| Communication | RS485, WLAN, Ethernet |
| Protection class | IP65 |
| Dimensions (W × H × D) | 470 × 525 × 146,5 mm |
| Weight | 17 kg |
| Emergency power | not available |
| Backup power | single-phase with solar charging |
| Warranty | 10 years |
Subject to changes and errors, images similar.
