Huawei SUN2000-10KTL-M1 10kW

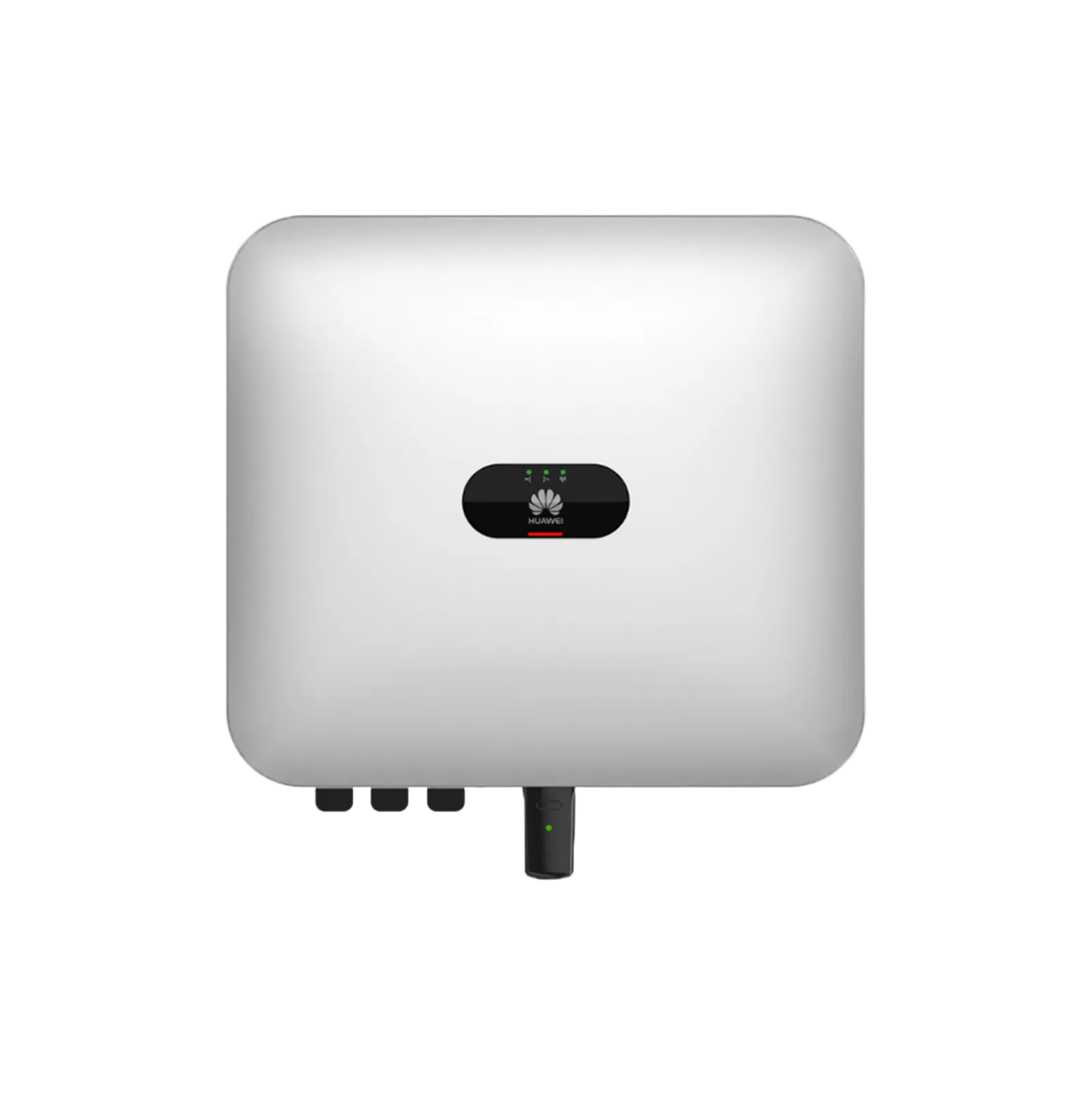

Huawei SUN2000-10KTL-M1 HC Hybrid Inverter 10 kW
The Huawei SUN2000-10KTL-M1 HC hybrid inverter is the ideal solution for residential photovoltaic systems and small commercial applications with a focus on self-consumption optimisation, high efficiency and intelligent storage integration. With 10 kW AC power, high energy efficiency and smart control, the inverter ensures reliable and optimal use of your solar power.

Product features
Inverter type
Hybrid inverter
Grid connection
3-phase
Rated AC power
10 kW Maximum DC power: 15 kWp
DC voltage range
140–1.100 V
Thanks to integrated hybrid technology the inverter is fully compatible with Huawei LUNA2000 high-voltage battery storage, allowing you to maximise self-consumption and sustainably increase energy independence. The multiple MPP trackers enable stable solar yields even with different roof orientations, more complex PV layouts or partial shading.
Maximum safety is ensured by modern protection functions such as the integrated AFCI arc fault detection, surge protection and intelligent system monitoring. Via the convenient Huawei FusionSolar monitoring your PV system can be easily monitored, analysed and efficiently controlled at any time.
- Supports PV systems up to 15 kWp for high energy yields
- Directly compatible with Huawei LUNA2000 high-voltage battery storage
- 10 kW discharge power for a powerful energy supply
- Integrated AFCI arc fault detection for increased safety
- 2 MPP trackers for optimal performance with more complex roof layouts
- Flexible communication via RS485, WLAN and Ethernet
- Robust IP65 housing for indoor and outdoor use
- Intelligent system monitoring via Huawei FusionSolar
- Backup power function with single-phase solar recharging
- 10-year manufacturer's warranty
Technical data
| Manufacturer | Huawei |
|---|---|
| Model designation | Huawei SUN2000-10KTL-M1 HC |
| Inverter type | Hybrid inverter |
| Grid connection | 3-phase |
| Rated AC power | 10 kW Maximum DC power: 15 kWp |
| DC voltage range | 140–1.100 V |
| Battery voltage range | 600–980 V |
| Max. DC charging power battery | 10 kW |
| Max. discharge power | 10 kW |
| MPP trackers | 2 |
| Battery compatibility | Huawei LUNA2000 high-voltage battery |
| Communication | RS485, WLAN, Ethernet |
| Protection class | IP65 |
| Dimensions (H × W × D) | 470 × 525 × 146,5 mm |
| Weight | 17 kg |
| Emergency power | Not available |
| Backup power | single-phase with solar recharging |
| Warranty | 10 years |
Subject to changes and errors, images similar.
