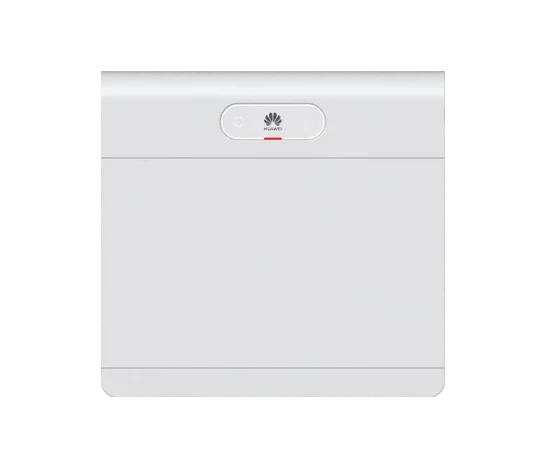

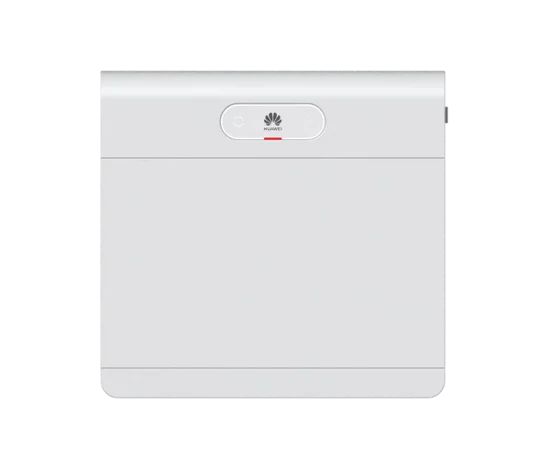

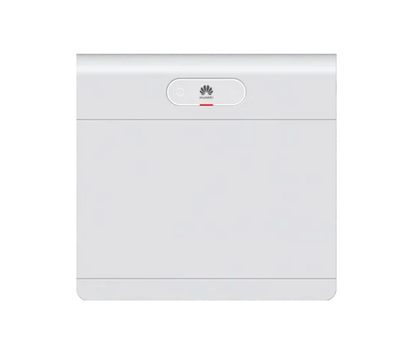

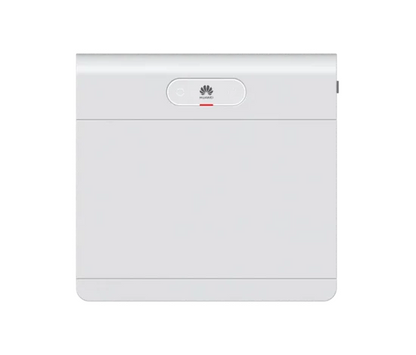

Huawei LUNA2000-7-S1 Battery Storage 7kWh
The Huawei LUNA2000-7-S1 is a modular high-voltage battery storage system with a usable capacity of 6.9 kWh. The system consists of one LUNA2000-7-E1 battery module and the LUNA2000-10KW-C1 power module. Thanks to its modular design, the battery can be flexibly expanded at any time – up to 20.7 kWh per battery tower and, through parallel operation of up to four towers , to a total of 82,8 kWh.
The safe lithium iron phosphate technology (LiFePO₄) offers a long service life, maximum operational safety and a depth of discharge of up to 100 %. The battery is compatible with various Huawei SUN2000 hybrid inverters and is ideal for self-consumption optimisation as well as backup and emergency power applications.


Technical data
| • Modularly expandable | Up to 20.7 kWh per battery tower |
|---|---|
| • High scalability | Up to 4 battery towers with a total of 82.8 kWh |
| • Plug-and-play | Easy to retrofit at any time |
| • DC-coupled storage system | High efficiency and low energy losses |
| • LiFePO₄ technology | Cobalt-free lithium iron phosphate battery for maximum safety |
| • Compatible | Huawei SUN2000 single- and three-phase hybrid inverters |
| • Emergency power capable | Reliable power supply in the event of a grid failure |
| • FusionSolar integration | Intelligent real-time system monitoring |
| • Integrated fire suppression system | Extinguishing kit in each battery module |
• Indoor and outdoor installation
• 10-year manufacturer's warranty
Product benefits
Active protection within a few seconds
The intelligent fire suppression system automatically detects critical situations and can contain fire within a few seconds. This minimises fire risks and provides additional protection for the battery storage.
Multi-level protection system for maximum safety
The three-level protection, from intelligent overcurrent protection to short-circuit protection at string and module level, reduces external short-circuit and overcurrent risks and ensures a particularly safe energy supply.
Modern design for indoor and outdoor areas
The compact design enables easy installation and blends harmoniously into different environments. At the same time, the robust construction ensures high resilience in daily operation.
Reliable operation even at cold temperatures
Optimised temperature management ensures reliable performance even at low outdoor temperatures and supports high operational reliability throughout the year.
Technical data
| Manufacturer | Huawei |
|---|---|
| Model designation | LUNA2000-7-S1 |
| Battery cell type | Lithium iron phosphate (LiFePO₄) |
| Energy / capacity | 6.9 kWh usable |
| Number of battery modules | 1 × 7 kWh |
| Power module | LUNA2000-10KW-C1 |
| Max. charge and discharge power | 3,5 kW |
| Operating voltage range (single-phase) | 350–560 V |
| Operating voltage range (three-phase) | 600–980 V |
| Communication interface | RS485 / FE / CAN |
| Overvoltage/undervoltage protection | Yes |
| Overcurrent protection | Yes |
| Overtemperature/undertemperature protection | Yes |
| DC protection switch | Integrated in the system. Dimensions & weight: 590 × 255 × 510 mm / 80 kg incl. stand |
| Operating location | Indoor and outdoor |
| Operating temperature / humidity | -20 °C to +55 °C / 5–95% RH |
| Protection class | IP66 |
| Cooling type | Natural convection |
| Mounting type | Stand or wall mounting |
Scope of delivery
- 1 × Huawei LUNA2000-7-E1 Battery module (7 kWh)
- 1 × Huawei LUNA2000-10KW-C1 Power module
