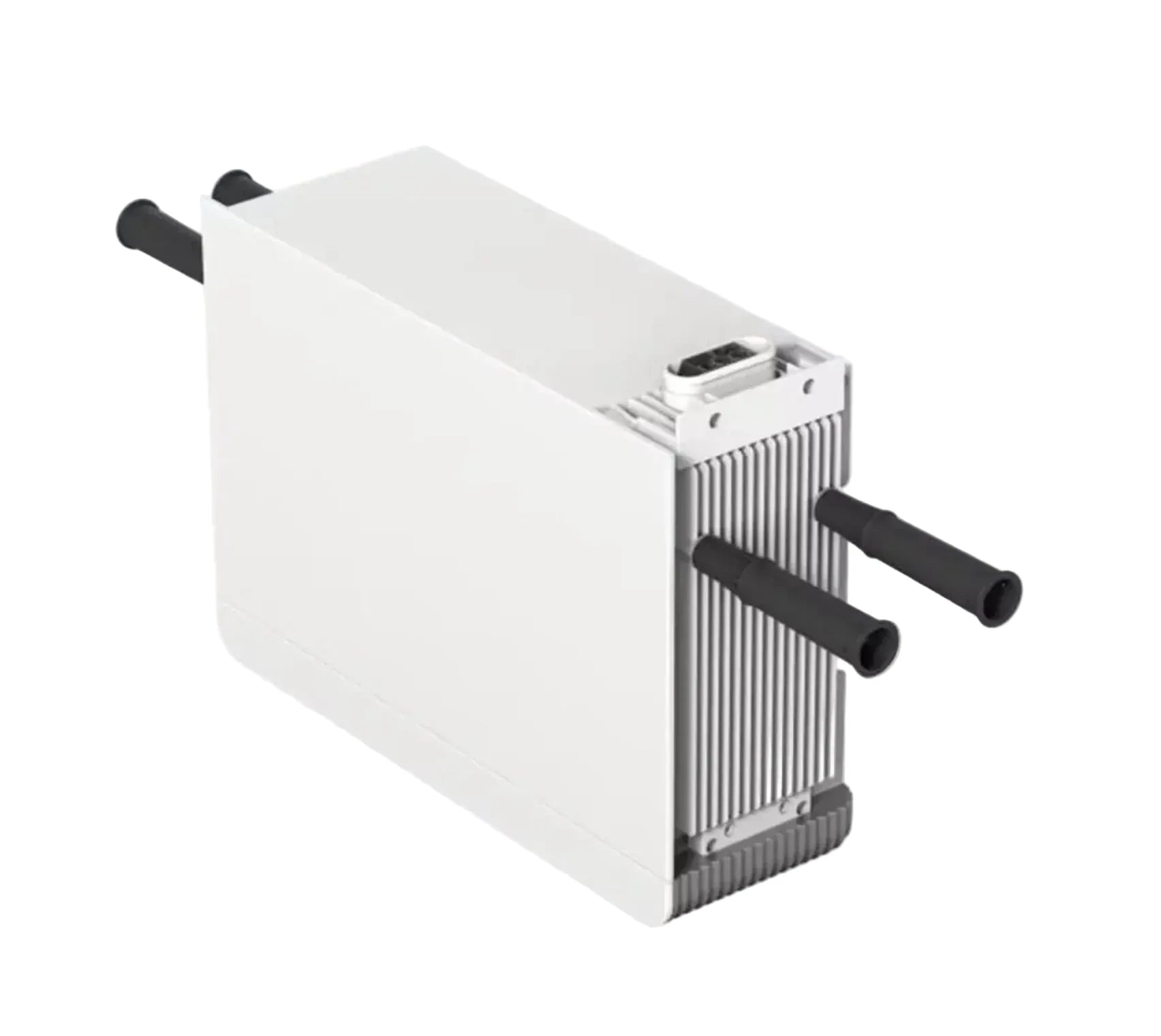

Huawei LUNA2000-7KW-E1 Battery Module 7kWh
Modular high-voltage battery storage for Huawei SUN2000 hybrid inverters
The Huawei LUNA2000-7KW-E1 is a powerful high-voltage battery storage system for photovoltaic systems and ensures efficient use of self-generated solar energy. Thanks to its modular design, the storage capacity can be flexibly expanded and adapted to increasing energy needs.


Intelligent energy management, real-time monitoring and optimised temperature management ensure reliable and efficient operation – in both private and commercial use.
Technical data
| • Modularly expandable | Up to 20.7 kWh per battery tower |
|---|---|
| • High scalability | Up to 4 battery towers with a total of 82.8 kWh |
| • Plug-and-play | Easy to retrofit at any time |
| • DC-coupled storage system | High efficiency and low energy losses |
| • LiFePO₄ technology | Cobalt-free lithium iron phosphate battery for maximum safety |
| • Compatible | Huawei SUN2000 single- and three-phase hybrid inverters |
| • Emergency power capable | Reliable power supply in the event of a grid failure |
| • FusionSolar integration | Intelligent real-time system monitoring |
| • Integrated fire suppression system | Extinguishing kit in each battery module |
• Indoor and outdoor installation
• 10-year manufacturer's warranty
Product benefits
Active protection within a few seconds
The intelligent fire suppression system automatically detects critical situations and can contain fire within a few seconds. This minimises fire risks and provides additional protection for the battery storage.
Multi-level protection system for maximum safety
The three-level protection, from intelligent overcurrent protection to short-circuit protection at string and module level, reduces external short-circuit and overcurrent risks and ensures a particularly safe energy supply.
Modern design for indoor and outdoor areas
The compact design enables easy installation and blends harmoniously into different environments. At the same time, the robust construction ensures high resilience in daily operation.
Reliable operation even at cold temperatures
Optimised temperature management ensures reliable performance even at low outdoor temperatures and supports high operational reliability throughout the year.
Features at a glance
- • Battery capacity: 6.9–20.7 kWh
- • Voltage (single-phase): 350–600 V
- • Voltage (three-phase): 600–980 V
- • Weight of battery module: 68 kg
- • Weight of power module: 10 kg
- • Protection rating: IP65
- • Maximum discharge power: 3.5 kW / 10 s (7 kWh), 7 kW / 10 s (14 kWh), 10.5 kW / 10 s (21 kWh)
- • Battery module (W × D × H): 590 × 255 × 360 mm
Technical data
| Manufacturer | Huawei |
|---|---|
| • Battery capacity | 6,9–20,7 kWh |
| • Voltage (single-phase) | 350–600 V |
| • Voltage (three-phase) | 600–980 V |
| • Weight of battery module | 68 kg |
| • Weight of power module | 10 kg |
| • Protection rating | IP65 |
| • Maximum discharge power | 3.5 kW / 10 s (7 kWh), 7 kW / 10 s (14 kWh), 10.5 kW / 10 s (21 kWh) |
| • Battery module (W × D × H) | 590 × 255 × 360 mm |
| • Power module (W × D × H) | 590 × 255 × 150 mm |
| • Certifications | CE, RCM, CEC, VDE 2510-50, IEC 62619, IEC 60730, UN38.3, ISO 13849, REACH, RoHS |
Scope of delivery
• 1 × Huawei LUNA2000-7KW-E1 Battery module (extension module)
Product videos
Subject to changes and errors, images similar.
