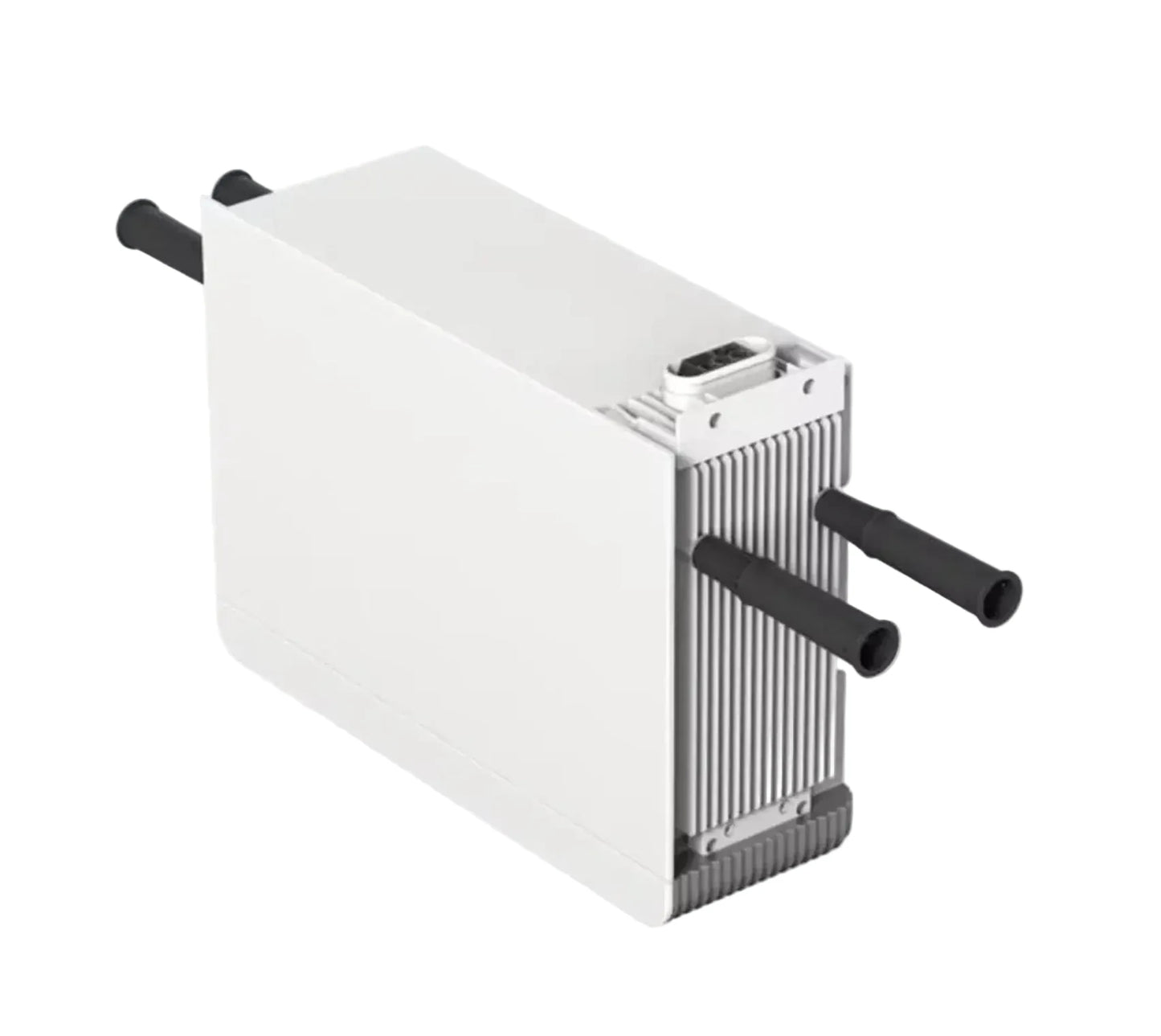

Huawei LUNA2000-5KW-E1 Battery Module 5kWh
The Huawei LUNA2000-5-E1 is a powerful 5 kWh high-voltage battery module and forms the basis of the modular Huawei LUNA2000 S1 energy storage system. It is used to flexibly expand existing LUNA2000-S1 storage systems and enables the total capacity to be scaled as required up to 21 kWh per battery tower. By operating up to four storage systems in parallel, even higher total capacities can be achieved.
The modern lithium iron phosphate technology (LiFePO₄) ensures maximum safety, high thermal stability and a long service life with a depth of discharge of up to 100 %. Thanks to the intelligent modular architecture with integrated energy optimiser, the stored energy is used particularly efficiently. The LUNA2000-5-E1 is compatible with single- and three-phase Huawei SUN2000 hybrid inverters and is suitable for modern photovoltaic storage solutions indoors and outdoors.


Product benefits
Active protection within a few seconds
The intelligent fire suppression system automatically detects critical situations and can contain fire within a few seconds. This minimises fire risks and provides additional protection for the battery storage.
Multi-level protection system for maximum safety
The three-level protection, from intelligent overcurrent protection to short-circuit protection at string and module level, reduces external short-circuit and overcurrent risks and ensures a particularly safe energy supply.
Modern design for indoor and outdoor areas
The compact design enables easy installation and blends harmoniously into different environments. At the same time, the robust construction ensures high resilience in daily operation.
Reliable operation even at cold temperatures
Optimised temperature management ensures reliable performance even at low outdoor temperatures and supports high operational reliability throughout the year.
Features at a glance
- Flexible expansion: 5 kWh usable capacity per battery module
- High scalability: expandable to 21 kWh per battery tower and up to 4 systems in parallel operation
- LiFePO₄ cell technology: cobalt-free lithium iron phosphate battery for maximum safety and long service life
- Integrated energy optimiser: maximum use of the stored energy
- Compact design: modular stacking system weighing only approx. 68 kg
- High robustness: IP66 protection rating and natural convection cooling
- FusionSolar integration: automatic system detection and monitoring via the Huawei FusionSolar app
- Flexible installation: suitable for indoor and outdoor use
Technical data
| Manufacturer | Huawei |
|---|---|
| Model designation | LUNA2000-5-E1 |
| Battery cell type | Lithium iron phosphate (LiFePO₄) |
| Usable energy | 5 kWh |
| Depth of discharge | 100% DoD |
| Communication | RS485 / FE / CAN |
| protective functions | Overvoltage/undervoltage, overcurrent, temperature |
| Dimensions (W × D × H) | 590 × 255 × 360 mm |
| Weight | Approx. 68 kg Mounting: stackable in the LUNA2000-S1 system |
| Application | Indoor and outdoor |
| Protection class | IP66 |
| Cooling type | Natural convection |
Scope of delivery
• 1 × Huawei LUNA2000-5KW-E1 Battery module (extension module)
Product videos
Subject to changes and errors, images similar.
