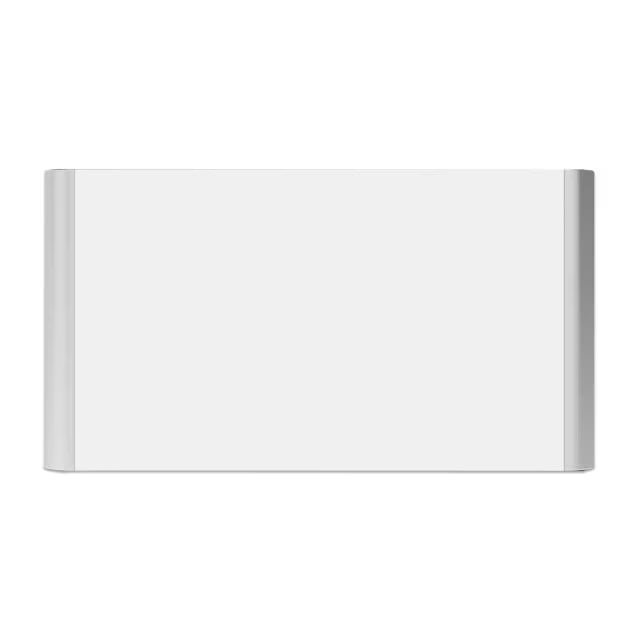

Huawei LUNA2000-5-E0 Battery Module 5kWh
The Huawei LUNA2000 is an efficient battery storage system for photovoltaic systems. With functions such as intelligent energy management and flexible expandability, it optimises the energy supply and enables real-time monitoring of the battery status. Thanks to its robust design and optimised temperature management, it is suitable for long-term use in private and commercial applications.
- Modular design with up to 15kW
- Can be retrofitted at any time, true "plug and play"
- DC system, reduces losses
- Cobalt-free lithium iron phosphate battery (LiFePO4): maximum safety, service life and performance
- Compatible with HUAWEI SUN2000 single- and three-phase inverters
- Highest safety standards
- For indoor and outdoor installation

Product features
Battery capacity
5 kWh
Weight
50 kg
Protection class
IP 65
Maximum discharge power
3.5kW/10s (Luna 5kW), 7kW/10s (Luna 10kW, Luna 15kW)
One of the great advantages of a Huawei system is the wide range of products, from the inverter and battery to matching optimisers. HUAWEI is one of the few manufacturers to offer an entire ecosystem of products that are ideally matched to each other.
Features at a glance
- CE, RCM, CEC, VDE2510-50, IEC62619, IEC 60730, UN38.3
Technical data
PRODUCT FEATURES HUAWEI LUNA2000 STORAGE BATTERY
| Manufacturer | Huawei |
|---|---|
| Battery capacity | 5 kWh |
| Rated voltage | 600 V |
| Weight | 50 kg |
| Protection class | IP 65 |
| Maximum discharge power | 3.5kW/10s (Luna 5kW), 7kW/10s (Luna 10kW, Luna 15kW) |
| Dimensions | 670 * 150 * 360 mm (W*D*H) |
Scope of delivery
- 1 x Huawei LUNA2000-5-E0 battery module (5kW)
Subject to changes and errors, images similar.
