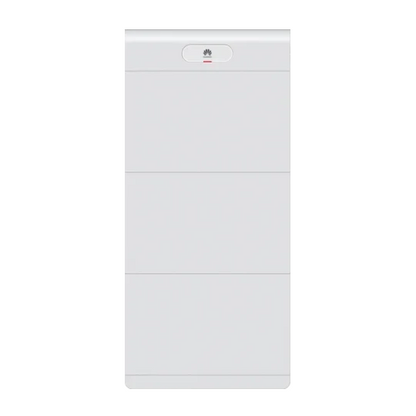

Huawei LUNA2000-15-S1 Battery Storage 15kWh
The Huawei LUNA2000-15-S1 is a modular high-voltage battery storage system with a usable capacity of 15 kWh and belongs to the powerful Huawei LUNA2000 S1 series. The system consists of three LUNA2000-5-E1 battery modules and the LUNA2000-10KW-C1 power module. Thanks to the modular design, the storage capacity can be flexibly expanded up to 21 kWh per battery tower . By operating up to four storage systems in parallel, larger storage solutions for demanding photovoltaic systems can also be realised.
The proven lithium iron phosphate technology (LiFePO₄) offers maximum safety, high thermal stability and a depth of discharge of up to 100 %. Thanks to the intelligent modular architecture with integrated energy optimiser, the stored energy is used particularly efficiently. The battery is compatible with single- and three-phase Huawei SUN2000 hybrid inverters and is ideal for self-consumption optimisation as well as backup and emergency power applications.


Product benefits
Active protection within a few seconds
The intelligent fire suppression system automatically detects critical situations and can contain fire within a few seconds. This minimises fire risks and provides additional protection for the battery storage.
Multi-level protection system for maximum safety
The three-level protection, from intelligent overcurrent protection to short-circuit protection at string and module level, reduces external short-circuit and overcurrent risks and ensures a particularly safe energy supply.
Modern design for indoor and outdoor areas
The compact design enables easy installation and blends harmoniously into different environments. At the same time, the robust construction ensures high resilience in daily operation.
Reliable operation even at cold temperatures
Optimised temperature management ensures reliable performance even at low outdoor temperatures and supports high operational reliability throughout the year.
Features at a glance
- Modularly expandable: 15 kWh usable capacity, expandable to 21 kWh per battery tower
- High scalability: up to 4 battery towers for significantly higher total capacities
- Plug-and-play system: easy and flexible to retrofit at any time
- DC-coupled storage system: high efficiency with minimal energy losses
- LiFePO₄ cell technology: cobalt-free lithium iron phosphate battery for maximum safety and long service life
- High compatibility: suitable for Huawei SUN2000 single- and three-phase hybrid inverters
- Emergency power capable: supports backup and emergency power operation in the event of a grid failure
- FusionSolar integration: intelligent monitoring and configuration via the Huawei FusionSolar app
Technical data
| Manufacturer | Huawei |
|---|---|
| Flexible installation | Suitable for indoor and outdoor use |
| Warranty | 10-year manufacturer's warranty |
| Model designation | LUNA2000-15-S1 |
| Battery cell type | Lithium iron phosphate (LiFePO₄) |
| Usable energy | 15 kWh |
| Number of battery modules | 3 × 5 kWh |
| Power module | LUNA2000-10KW-C1 |
| Max. charge and discharge power | 10,5 kW |
| Operating voltage (single-phase) | 350–560 V |
| Operating voltage (three-phase) | 600–980 V |
| Depth of discharge | 100% DoD |
| Communication interface | RS485 / FE / CAN |
| protective functions | Overvoltage/undervoltage, overcurrent, temperature |
| Dimensions (W × D × H) | 590 × 255 × 1230 mm |
| Weight | Approx. 216 kg incl. base |
| Mounting type | Floor mounting (standard), wall mounting (optional) |
| Application | Indoor and outdoor |
| Protection class | IP66 |
| Cooling type | Natural convection |
Scope of delivery
- 3 × Huawei LUNA2000-5-E1 Battery modules (5 kWh each)
- 1 × Huawei LUNA2000-10KW-C1 Power module
