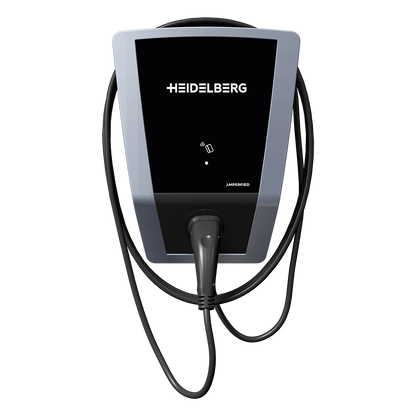

Heidelberg Amperfied Wallbox Connect.Home 11 kW - 7.5m Charging Cable

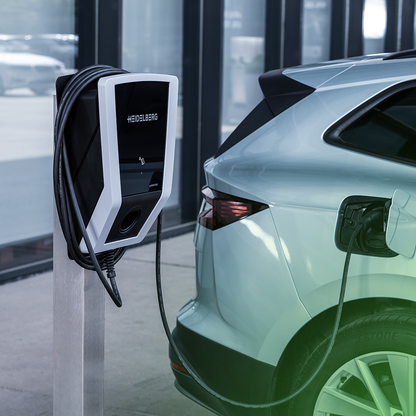

THE SMART WALLBOX CONNECT.HOME – A wallbox for everyone who appreciates smart charging. The connect.home wallbox reliably charges your electric vehicle with 11 kW charging power and can be controlled and managed quickly and efficiently via our app and web interface. With RFID cards, you ensure that only selected persons have access to the wallbox. PV charging from at least 4.1 kW solar yield and a variant with an integrated RCD are also possible.
Technical highlights of the Amperfied Wallbox connect.home
Maximum control and security
The use of RFID cards ensures that only authorised persons have access to the wallbox. The integrated load management, both dynamic and static, allows up to 20 wallboxes to be operated in a network, with the charging power flexibly adapted to the building capacity. The wallbox is also compliant with § 14a EnWG, enabling grid-supportive control.
- up to 11 kW charging power
- Integrated charging cable 7.5 m
- Control via app + web interface and access via RFID cards
- PV charging* possible from at least 4.1 kW solar yield. (*requires Amperfied PowerMeter)
- Dynamic* and static load management in a network with all wallboxes of the connect series.
- Compatible with home energy management system + backend (OCPP 1.6).
- § 14a EnWG compliant.

Product features
Standards
EN61851-1; EN61439-7
Charging power
Up to 11 kW
Rated voltage
230 V – 400 V
The wallbox complies with § 14a EnWG and allows the charging power to be controlled via an energy management system (EMS) or a potential-free contact. This means that it can be seamlessly integrated into grid management and helps to maintain the stability of the power grid. Both grid operators and users benefit from this arrangement, as flexible control of the charging process is ensured without excessive load peaks.
PV charging and energy management
PV CHARGING – Thanks to integrated solar management, PV surplus charging is possible when the solar yield is at least 4.1 kW. Our "Heidelberg PowerMeter" is required to measure the PV surplus. Below 4.1 kW solar yield, charging continues with grid power. For PV charging even in cloudy weather and with less than 4.1 kW solar yield, we recommend our connect.solar wallbox, which you can also find here on Amazon. The connect.home wallbox can also easily be connected to home energy management systems (HEMS).
Integrated load management for static and dynamic charging
The wallbox is equipped with integrated load management, allowing up to 20 wallboxes to charge several electric vehicles together. Load management can be either static with a fixed current limit or dynamic* , i.e. flexibly adapted to the available building power.
The network can consist of different models of our connect series – for example a combination of connect.solar, connect.home and connect.business wallboxes. One of the wallboxes automatically takes on the role of leader and controls the other charging stations. It is not necessary to buy a special leader wallbox.
*Note: A separate Amperfied PowerMeter is required for dynamic load management.
Compatibility and flexibility
The wallbox supports the OCPP 1.6 protocol for easy connection to backend systems and offers flexible installation thanks to the integrated LAN and WLAN interfaces. With the myAMPERFIED app, charging processes can be started, charging current adjusted and charging data monitored – anytime and from anywhere.
Features at a glance
- Standards: EN61851-1; EN61439-7
- Charging power: Up to 11 kW
- Rated voltage: 230 V – 400 V
- Rated current: Adjustable from 6 A to 16 A in 2 A steps
- Rated frequency: 50 Hz
- Charging power: 11 kW, 7.4 kW, 5.5 kW, 3.7 kW, 2.3 kW, configurable
- Grid types: TT/TN
- Connection technology: spring terminal technology (2.5 mm² to 6 mm²)
Technical data
| Manufacturer | Amperfied |
|---|---|
| Standards | EN61851-1; EN61439-7 |
| Charging power | Up to 11 kW |
| Rated voltage | 230 V – 400 V |
| Rated current | Adjustable from 6 A to 16 A in 2 A steps |
| Rated frequency | 50 Hz |
| Charging power | 11 kW, 7.4 kW, 5.5 kW, 3.7 kW, 2.3 kW, configurable |
| Grid types | TT/TN |
| Connection technology | Spring terminal technology (2.5 mm² to 6 mm²) |
| Cable feed/cable entry | Surface-mounted or flush-mounted – Ø 10 to 20 mm |
| Connection cross-section |
|
| Charging connector/coupler | Type 2 |
| Charging cable length | 7,5 m |
| Status information | Front lighting |
| Data interfaces | LAN/WLAN (2.4 GHz/IEEE 802.11 b/g/n); RS485 |
| Communication protocols | OCPP 1.6 (optional: secure); Modbus TCP |
| External release/locking of the wallbox | RFID, app, Modbus, release input |
| Protection class | IP54 (splash-proof) |
| Residual current detection | DC 6 mA according to IEC 62955, optional: integrated RCD type A 30 mA AC according to IEC61008-1 |
| Protection against mechanical impact | IK08 |
| Operating temperature range | -25°C to +40°C |
| Temperature behaviour | If the temperature is exceeded, the charging process is interrupted and automatically restarted after cooling down. |
| Storage temperature range | -25°C to +80°C |
| Relative humidity | 5% to 95% |
| Altitude | Max. 2000 m above sea level |
| Protection class | I |
| Overvoltage category | III |
| Dimensions | 386 mm × 295 mm × 112 mm |
| Weight | Approx. 8 kg |
Subject to changes and errors, images similar.
