GoodWe Vela Series | Solar Carport Solution

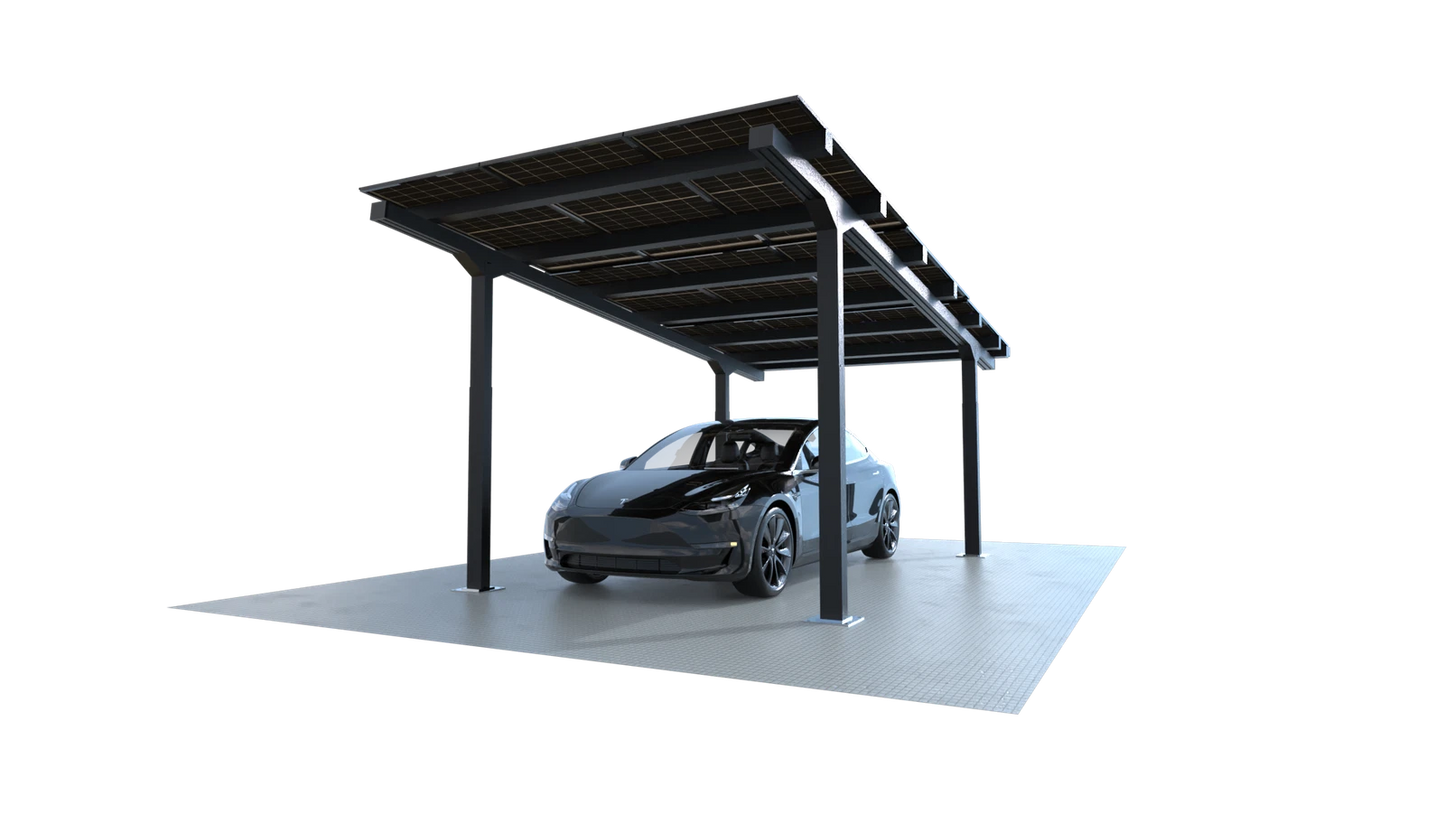

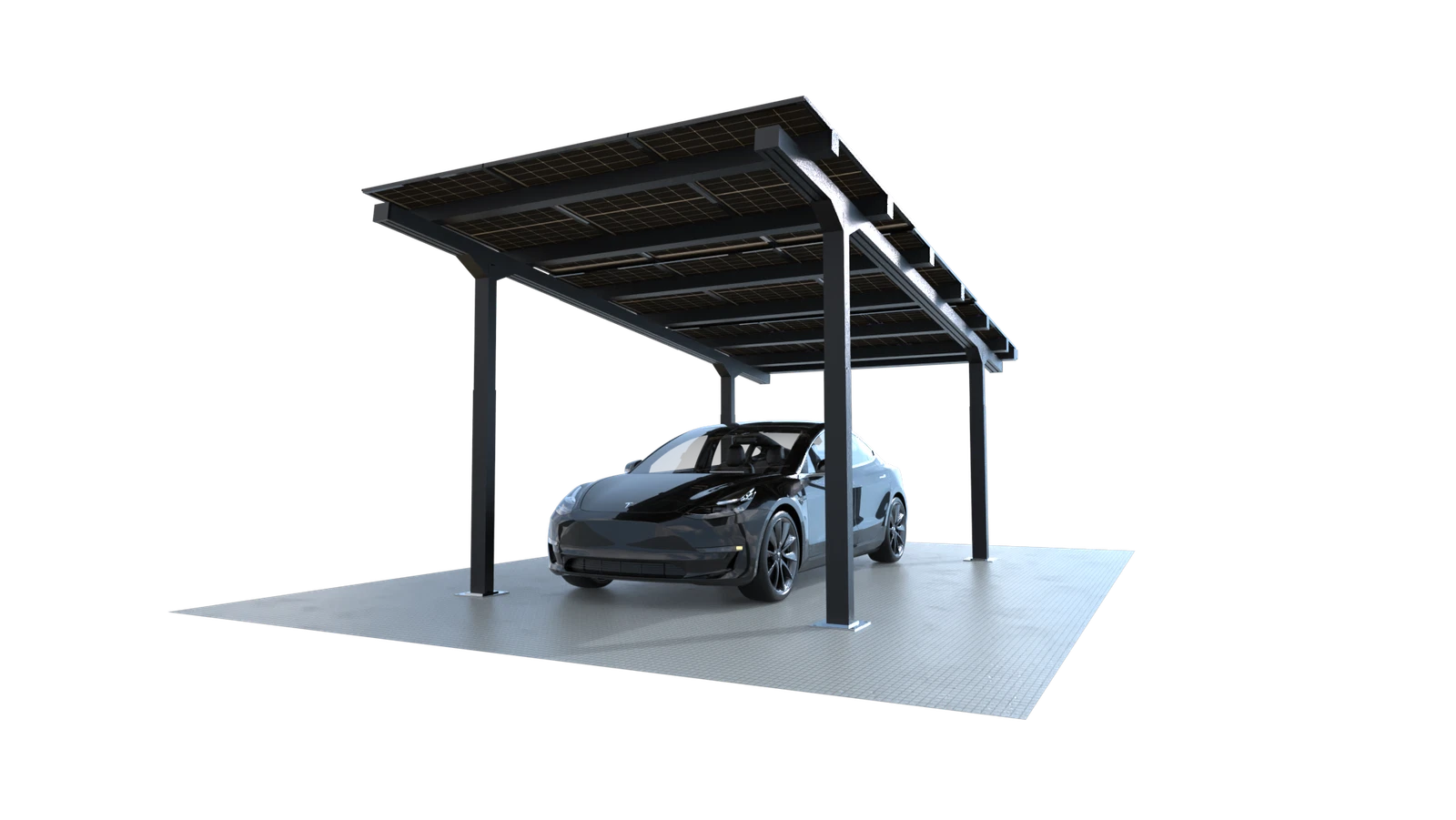

GoodWe Vela solar carport – vehicle protection and solar power combined – The GoodWe Vela solar carport turns your parking space into a modern energy source. The robust carport construction protects your vehicle from the weather while generating sustainable solar power for your home or electric vehicle.
The integrated GoodWe Polaris double-glass solar modules form a structurally watertight roof surface. Thanks to the modular design, height-adjustable posts and easy-to-mount construction, the system can be flexibly adapted to different local conditions.
Up to 8.025 kWp Powerful solar solution for single or double parking spaces.
Structurally watertight Integrated Polaris modules also form the protective roof surface.
Modular complete system Coordinated construction for easy planning and mounting.
- Solar carport for one or two vehicle parking spaces
- 4.815 kWp or 8.025 kWp installed PV power
- Watertight roof surface made of GoodWe Polaris solar modules
- Protection of the vehicle from rain and other weather influences
- Modular and height-adjustable carport construction
- Easy-to-mount lightweight construction
- Integrated drainage system with rain gutter
- Robust N-type TOPCon double-glass modules
- Optionally expandable with lighting or video surveillance
- Efficient use of existing parking areas








Product benefits
Structurally watertight modules
The GoodWe Polaris PVBM modules feature an integrated watertight construction. This creates a clean and visually appealing roof without additional adhesive sealing.
Innovative modular design
The modular system offers high adaptability. Adjustable post heights make it easier to adapt to different ground conditions and space requirements.
Easy-to-mount lightweight construction
The construction was designed for straightforward mounting. According to the manufacturer, installation can be carried out without the use of heavy machinery.
Vehicle protection and power generation
The existing parking space is used twice: as a sheltered parking space and at the same time as a powerful photovoltaic system.
Versatile expansion
The system can be supplemented with additional functions such as lighting, video surveillance or other electrical loads.
Everything from one solution
The coordinated components simplify procurement, transport, planning and mounting of the entire solar carport.
GoodWe Vela single carport
Compact version for one vehicle parking space with nine powerful GoodWe Polaris solar modules.
GoodWe Vela double carport
Spacious version for two vehicle parking spaces with a total of 15 GoodWe Polaris solar modules.
GoodWe Polaris double-glass solar modules
The GoodWe Polaris modules perform two functions in the Vela solar carport: they generate solar power and at the same time form the watertight roof surface. The N-type TOPCon half-cell technology offers high performance and a module efficiency of 21.5%.
Warranty
15-year manufacturer's warranty to the carport structure and the BIPV system from GoodWe.
Features at a glance
- 535 W power per solar module
- N-type TOPCon technology with 132 half-cells
- Robust double-glass design
- Structurally watertight design
- Self-cleaning surface
- Easy-to-mount module system
Technical data
| Manufacturer | GoodWe |
|---|---|
| PV power | 4,815 kWp |
| Solar modules | 9 × GoodWe Polaris 535 W |
| Length | 6.500 mm |
| Width | 3.000 mm |
| Peak height | 3.000–3.500 mm |
| Clearance height | 2.000–2.500 mm |
| PV power | 8,025 kWp |
| Solar modules | 15 × GoodWe Polaris 535 W |
| Width | 5.200 mm |
| Model | BMT-P2/132A |
| Rated power | 535 W |
| Module efficiency | 21,5 % |
| Dimensions | 2.142 × 1.160 × 29,6 mm |
| Weight | 30 ± 0,5 kg |
| Cell technology | N-type TOPCon, 132 half-cells |
| Voltage at maximum power | 41,47 V |
| Open-circuit voltage | 48,21 V |
| Current at maximum power | 12,90 A |
| Short-circuit current | 13,60 A |
| Cable cross-section | 4 mm² |
Subject to changes and errors, images similar.
