GoodWe GW5K-ET PLUS+ 5kW Hybrid Inverter

GoodWe GW5K-ET PLUS+ 5kW Hybrid Inverter

Regular price 379,00 €
Regular price 799,00 € Sale price 379,00 €
Sale Sold out

You save 420,00 € (53 %)

Taxes included. Shipping calculated at checkout.
Umsatzsteuer

In carts right now

  • Delivery time: expected 1 working day
Apple Pay Google Pay PayPal Mastercard Klarna Visa Shop Pay
PayPal
3,79 € saved 1 % discount for bank transfer
Final price with bank transfer: 375,21 €
Enter the voucher code at checkout and pay by bank transfer.
Valid for bank transfer only, not for cash payment.

1% discount

for bank transfer

Own collection point

in 71287 Weissach

Expert advice

+49 (0)7044 211 97 83

Fast support

Phone, email or on site

Customer 1 Customer 2
Thomas, Kim and 328 other customers love our products
View full details

GoodWe GW5K-ET PLUS+ – 5 kW hybrid inverter, 12.5 A

The GoodWe GW5K-ET PLUS+ is the 5 kW version with 12.5 A maximum input current per MPP tracker. As a three-phase hybrid inverter, it combines PV generation, high-voltage battery connection and backup function.

The battery voltage range of 180 to 600 V offers scope with approved batteries. Please do not confuse the current variant with the 16 A version (types with "N"); the 12.5 A refers to the input current, not an input voltage.

  • 5 kW rated AC power, three-phase
  • 12.5 A maximum PV input current per MPP tracker
  • 2 independent MPP trackers
  • High-voltage battery connection for approved batteries
  • Integrated backup switchover according to series
  • Compatible with GoodWe Lynx Home, among others, according to the approval list
5 kWRated AC power
12,5 AMax. current per MPPT
2 MPPTIndependent PV control
180–600 VBattery voltage

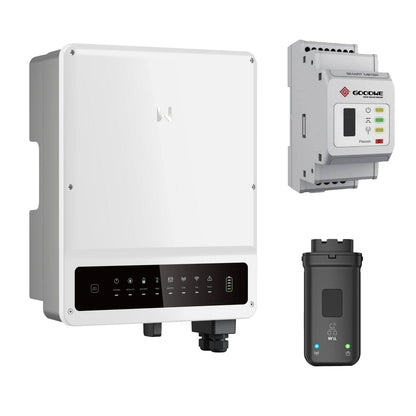

GoodWe GW5K-ET ET PLUS+ hybrid inverter – product image
ET PLUS+ 12.5 A versionGW5K-ET with 12.5 A per MPPT. Accessories shown depend on the configuration.

Product benefits

Select the right current variant

This is the GW5K-ET model with 12.5 A maximum input current per MPP tracker. Module and string combinations must be checked against current and voltage limits.

Time-shift solar power

An approved high-voltage battery absorbs suitable PV surpluses. The achievable self-consumption depends on array, battery and load profile.

Coordinate backup

The backup function supplies appropriately connected circuits. Usable power and runtime depend on the battery and the loads.

Integrate monitoring

SolarGo and the GoodWe cloud provide a system overview, provided communication has been set up professionally.

Features at a glance

  • 5 kW rated AC power, three-phase
  • 12.5 A maximum PV input current per MPP tracker
  • 2 independent MPP trackers
  • High-voltage battery connection for approved batteries
  • Integrated backup switchover according to series
  • Compatible with GoodWe Lynx Home, among others, according to the approval list

Technical data

Manufacturer GoodWe
Model GW5K-ET
Series / version ET PLUS+ / 12.5 A
Rated AC power 5 kW
MPP trackers 2
Max. input current per MPPT 12,5 A
Battery voltage range 180–600 V
Battery compatibility Only according to the current GoodWe approval list
Backup Integrated switchover according to series, depending on battery

Scope of delivery

  • 1 × GoodWe GW5K-ET ET PLUS+ hybrid inverter

Battery and PV modules are not included. Measuring and communication accessories in images depend on the configuration; the version and the manufacturer's packing list are authoritative.

Manufacturer information and planning

Information for the ET PLUS+ 12.5 A version. Not to be equated with the 16 A variant (type designation with N) or ET G2. Check approved batteries and country approval before planning.

Electrical connection, protection concept and commissioning exclusively by qualified specialists. The permissible system combination and the requirements of the grid operator must be checked before installation.

GoodWe manufacturer information ET PLUS+

Subject to technical changes. Images may be series-related; optional accessories are only included if expressly stated.
