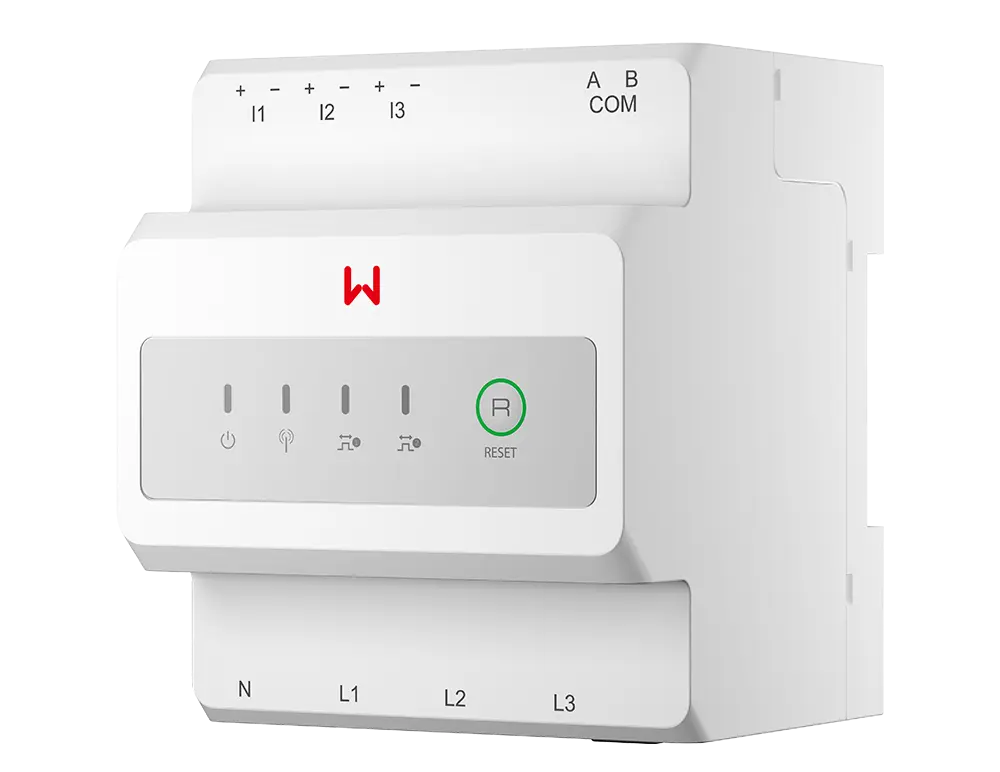

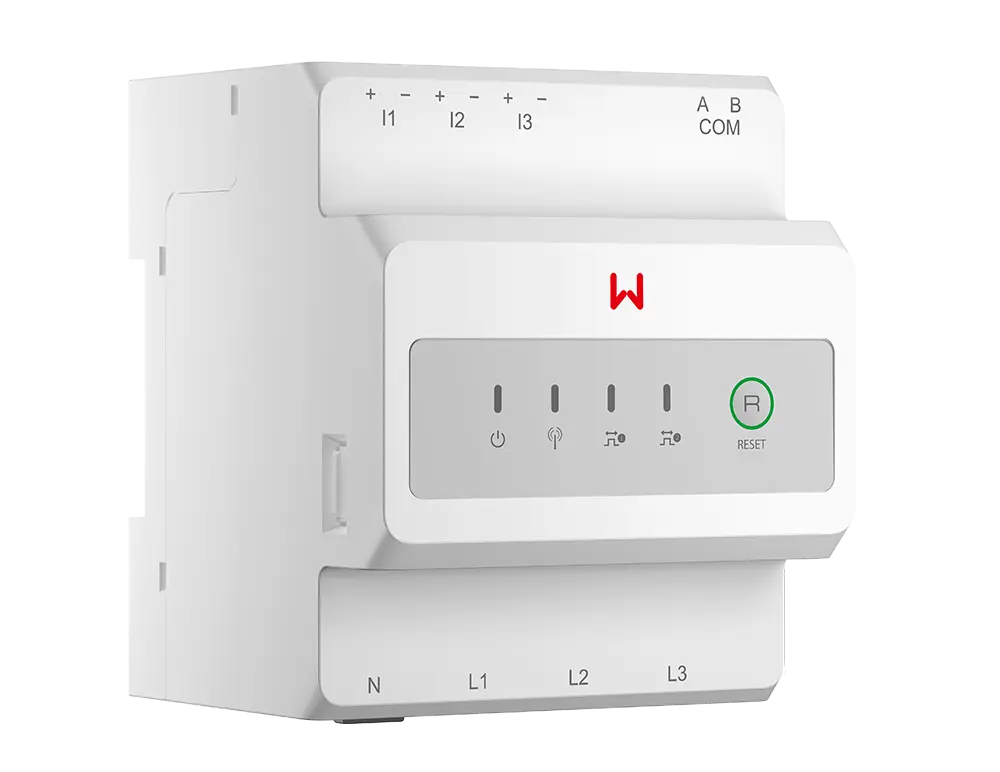

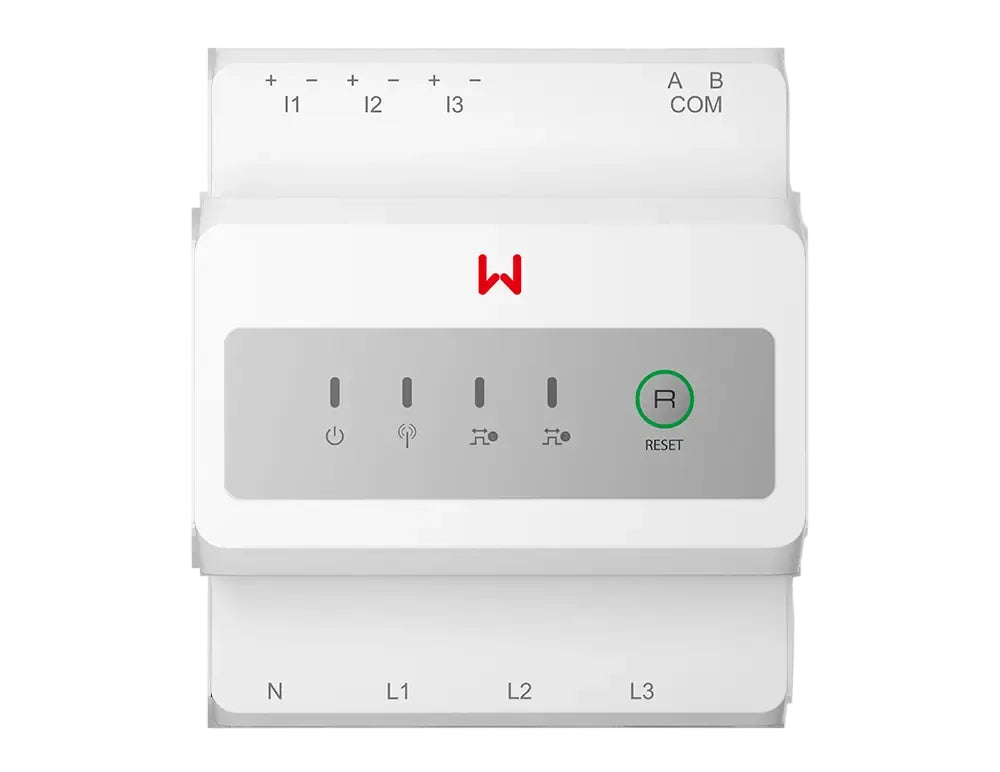

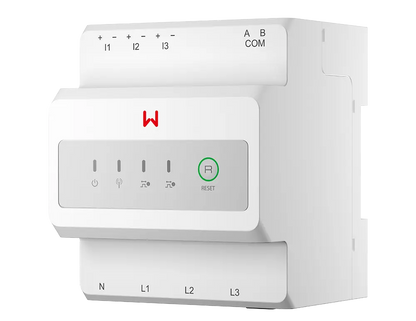

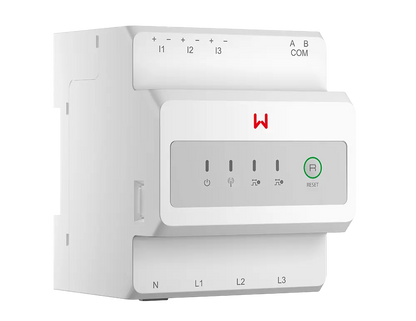

Goodwe GMK330 Smart Meter
The GoodWe GMK330 Smart Meter is an intelligent three-phase energy meter for precise monitoring of energy flows in photovoltaic systems. It reliably measures power consumption, grid consumption and feed-in and enables dynamic power control of compatible GoodWe hybrid and grid-tied inverters.
Thanks to the integrated 120 A current transformers (CTs) and the high measuring accuracy (class 0.5) the GMK330 is suitable for both residential and commercial applications. Via the RS485 interface measurement data is transmitted to the energy management system in real time. This allows functions such as self-consumption optimisation, zero feed-in and export limitation to be reliably implemented.

Product features
Three-phase smart meter
Precise recording of power consumption, grid consumption and feed-in
Integrated 120 A current transformers
No additional CT set required
High measuring accuracy
Accuracy class 0.5 for exact energy data
Compatible with GoodWe inverters
Optimal integration into hybrid and PV systems
Features at a glance
- Three-phase smart meter: precise recording of power consumption, grid consumption and feed-in
- Integrated 120 A current transformers: no additional CT set required
- High measuring accuracy: accuracy class 0.5 for exact energy data
- Compatible with GoodWe inverters: optimal integration into hybrid and PV systems
- Self-consumption optimisation: supports intelligent energy management
- Export limitation: ideal for zero feed-in and dynamic feed-in control
- RS485 communication: reliable data transmission via Modbus
- DIN rail mounting: fast and space-saving installation
Technical data
| Three-phase smart meter | Precise recording of power consumption, grid consumption and feed-in |
|---|---|
| Integrated 120 A current transformers | No additional CT set required |
| High measuring accuracy | Accuracy class 0.5 for exact energy data |
| Compatible with GoodWe inverters | Optimal integration into hybrid and PV systems |
| self-consumption optimisation | Supports intelligent energy management |
| export limitation | Ideal for zero feed-in and dynamic feed-in control |
| RS485 communication | Reliable data transmission via Modbus |
| DIN rail mounting | Fast and space-saving installation |
| Wide temperature range | For reliable use under demanding conditions |
| Original GoodWe accessory | Perfectly matched to GoodWe energy systems |
| Manufacturer | GoodWe |
| Model | GMK330 |
| Product type | Smart meter / energy meter |
| Phases | 3-phase |
| Supported grid types | 1P2W / 3P3W / 3P4W |
| Accuracy class | Class 0.5 |
| Current transformers | 3 × integrated CTs, 120 A |
| Communication | RS485 (Modbus RTU) |
| Maximum communication range | Up to 1,000 m |
| Function | Self-consumption optimisation and export limitation (zero feed-in) |
| Mounting | DIN rail |
| Dimensions (W × H × D) | 72 × 85 × 72 mm |
| Overall width | 4 MU (modules) |
| Operating temperature | -30 °C to +70 °C |
| self-consumption | < 5 W |
Subject to changes and errors, images similar.
