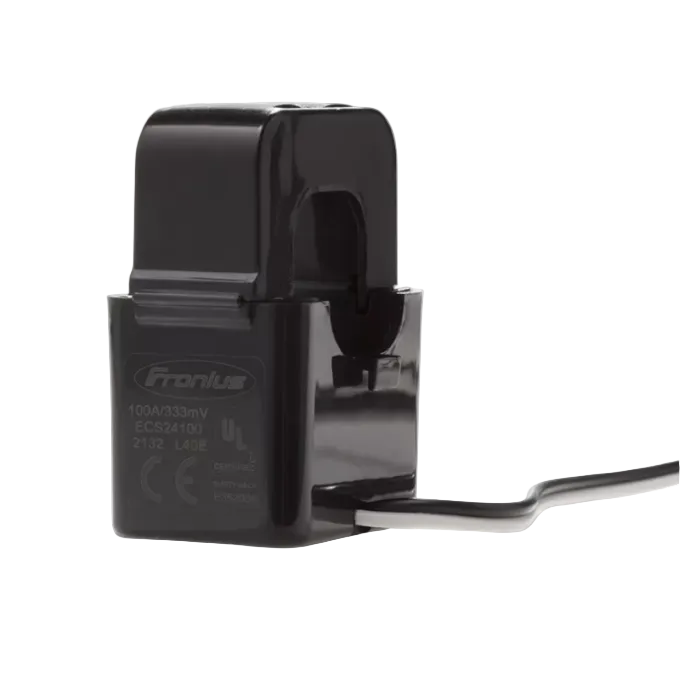

Fronius Current Transformer CT V 100A/333mV
The Fronius Smart Meter CT 100A was developed specifically for the precise measurement of higher currents in photovoltaic systems. Thanks to split-core technology the current transformer can easily be mounted around the existing conductor without having to disconnect or unclamp the power line. This makes it particularly suitable for quick and easy retrofitting of existing systems.
The current transformer records the flowing current and converts it into a measurement signal that can be processed by the Fronius Smart Meter . Using the stored transformation ratio, the smart meter then calculates the actual primary current, enabling reliable energy monitoring and system control.

Product features
Version
Split-core current transformer
With touch protection
Yes
Secondary connection
Cable
Technical data
PRODUCT FEATURES
| Manufacturer | Fronius |
|---|---|
| Version | Split-core current transformer |
| Rated primary current | 100 A |
| With touch protection | Yes |
| Opening diameter | 16 mm |
| Snap-on mounting | Yes |
| With copper bar | No |
| Number of primary inputs | 1 |
| Accuracy class | 1 |
| Calibrated | No |
| Opening height | 16 mm |
| Opening width | 16 mm |
| Secondary connection | Cable |
Subject to changes and errors, images similar.
