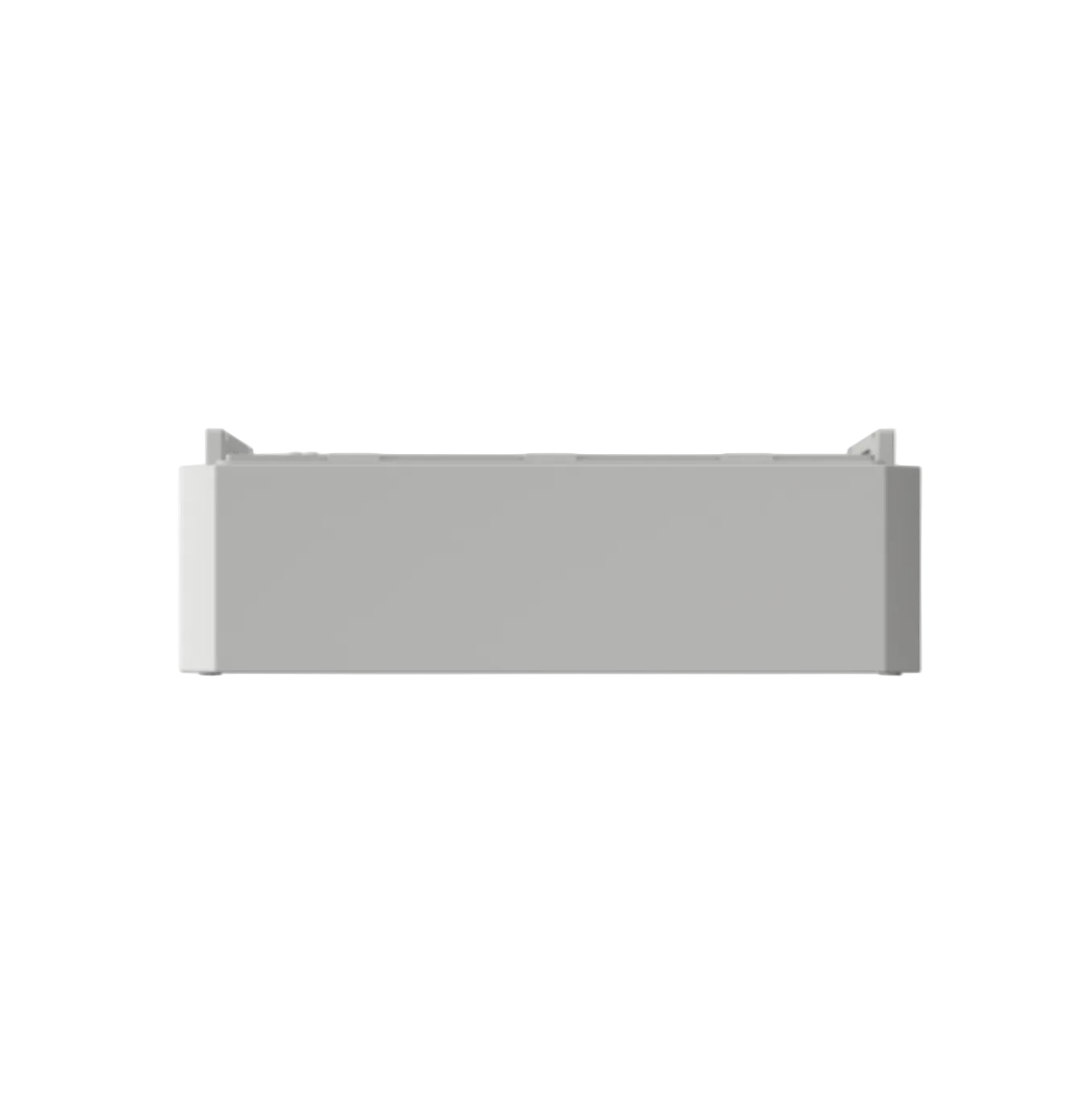

Fronius Reserva Pro 3.98 kWh Battery Expansion
The Fronius Reserva Pro 3.98 kWh battery module is the basic unit of the new Fronius Reserva Pro high-voltage storage series. Equipped with durable lithium iron phosphate technology (LFP) each module provides 3.98 kWh usable storage capacity and forms the basis for powerful, modular battery storage systems.
The Reserva Pro series was developed specifically for commercial businesses, agricultural applications and larger photovoltaic systems . Thanks to DC-coupled high-voltage technology, solar energy is stored particularly efficiently and with minimal conversion losses. A battery tower can be built from 3 to 8 battery modules and flexibly expanded at any time. In parallel operation of up to four battery towers storage capacities of up to 128 kWh can be realised.
- Fronius Verto Plus
- Fronius Symo GEN24 Plus
- Fronius Primo GEN24 Plus

Product features
Modularly expandable
3 to 8 battery modules per battery tower
High storage capacity
12 to 32 kWh per tower, up to 128 kWh in parallel operation (4 towers)
Compact design
Maximum height of only 1.68 m when fully equipped
Compared to the previous Reserva series, the Reserva Pro offers higher charging and discharging power and larger storage capacities with a maximum height of only 1,68 m (when using 8 battery modules). The system is optimally matched to the Fronius hybrid inverters and fully integrated into the Fronius ecosystem.
Note: A complete battery tower consists of at least 3 Reserva Pro battery modules, one Battery Management System (BMS) and a Base. A maximum of 8 battery modules can be installed per battery tower.
COMPATIBILITY
The Fronius Reserva Pro battery module is compatible with the following hybrid inverters:
Features at a glance
- Modularly expandable: 3 to 8 battery modules per battery tower
- High storage capacity: 12 to 32 kWh per tower, up to 128 kWh in parallel operation (4 towers)
- Compact design: maximum height of only 1.68 m when fully equipped
- DC-coupled high-voltage battery: high efficiency thanks to low conversion losses
- Higher performance: charging and discharging current up to 50 A (instead of 32 A in the Reserva series)
- Safe LFP cell technology: long service life and maximum operational safety
- European data security: reliable data processing and fast Fronius service
- Easy commissioning: configuration via the Fronius Solar.start app
Technical data
| Manufacturer | Fronius |
|---|---|
| Modularly expandable | 3 to 8 battery modules per battery tower |
| High storage capacity | 12 to 32 kWh per tower, up to 128 kWh in parallel operation (4 towers) |
| Compact design | Maximum height of only 1.68 m when fully equipped |
| DC-coupled high-voltage battery | High efficiency thanks to low conversion losses |
| Higher performance | Charging and discharging current up to 50 A (instead of 32 A in the Reserva series) |
| Safe LFP cell technology | Long service life and maximum operational safety |
| European data security | Reliable data processing and fast Fronius service |
| Easy commissioning | Configuration via the Fronius Solar.start app |
Subject to changes and errors, images similar.
