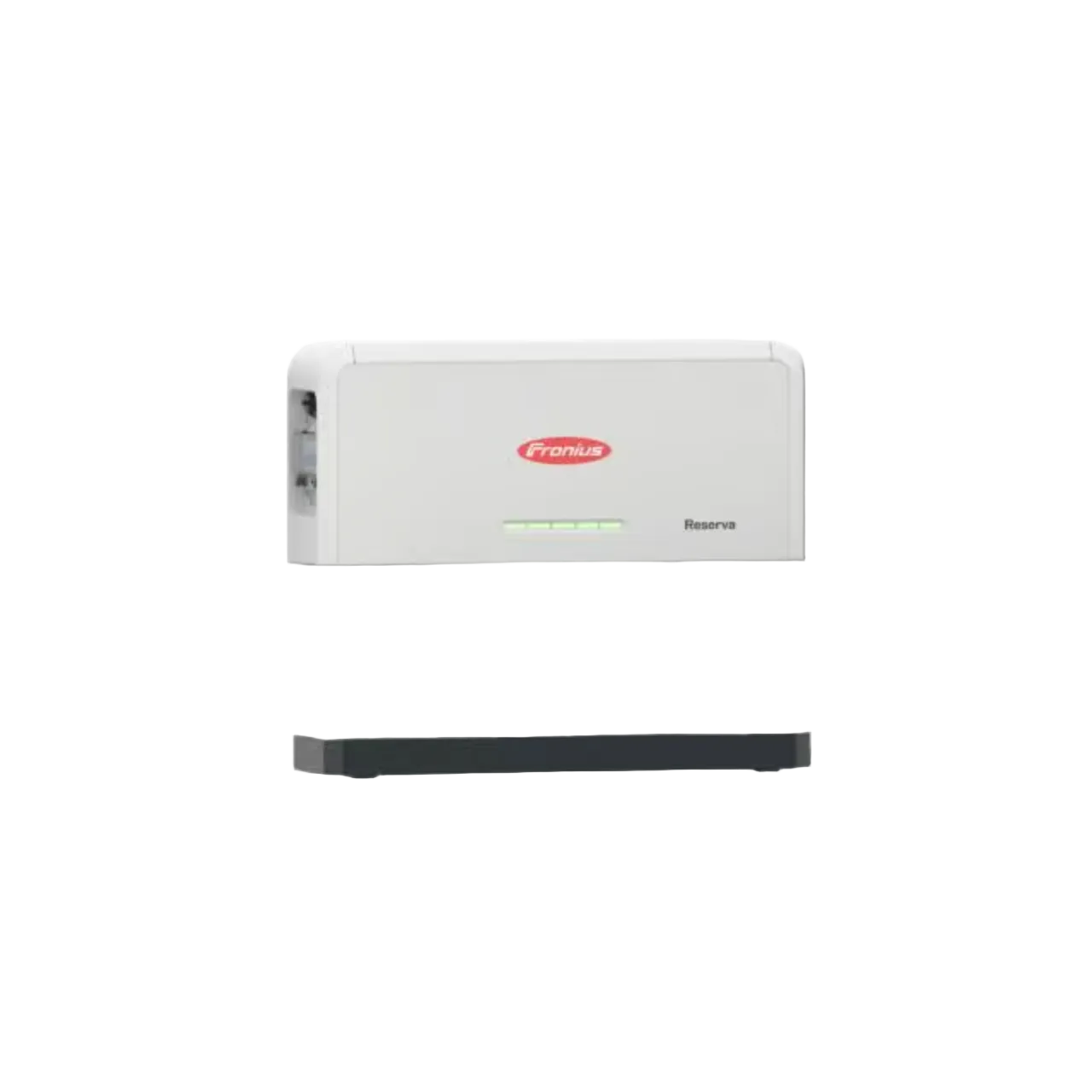

Fronius Reserva BMS + Base
Fronius Reserva BMS + Base
The Fronius Reserva BMS + Base forms the central control and base unit of the Fronius Reserva high-voltage battery system. The integrated battery management system (BMS) handles the intelligent monitoring, control and protection of the connected battery modules for reliable and efficient system operation.

Product features
Central control
Intelligent battery management for monitoring voltage, current, temperature and state of charge
System compatibility
Specially developed for Fronius Reserva high-voltage battery storage (6.3 / 9.5 / 12.6 / 15.8)
Safety
Integrated protection functions such as overvoltage and undervoltage protection, overcurrent and temperature monitoring
Stable installation
Robust, precisely fitting base for a secure stand and clean system integration
The precisely fitting base ensures stable, safe and space-saving installation of the battery system. Ideal as a base component for new installations, system expansions or as a spare part within the Fronius Reserva storage system.
TECHNICAL DATA
Technical data
| Product name | Fronius Reserva BMS + Base |
|---|---|
| Compatibility | Fronius Reserva 6.3 / 9.5 / 12.6 / 15.8 |
| Function | Battery management and system base |
| Communication interface | RS485 |
| protective functions | Over-/undervoltage protection, overcurrent protection, temperature monitoring |
| Operating location | Indoor & sheltered outdoor |
| Operating temperature | −20 °C to +55 °C |
| Permissible humidity | 5–95 % |
| Protection class | IP65 |
| Mounting type | Floor mounting (floor-standing) |
| System integration | DC-coupled in the Fronius Reserva system |
Features at a glance
- Central control: intelligent battery management for monitoring voltage, current, temperature and state of charge
- System compatibility: specially developed for Fronius Reserva high-voltage battery storage (6.3 / 9.5 / 12.6 / 15.8)
- Safety: integrated protection functions such as overvoltage and undervoltage protection, overcurrent and temperature monitoring
- Stable installation: robust, precisely fitting base for a secure stand and clean system integration
- Easy mounting: fast installation thanks to ready-to-plug, system-optimised design
- Ecosystem & integration: seamless integration into the Fronius energy system in combination with Fronius hybrid inverters
- Prestige: high-quality system component from an established manufacturer with high build quality and a well-thought-out design
- Warranty: 10-year manufacturer's warranty
Technical data
| Manufacturer | Fronius |
|---|---|
| Central control |
Intelligent battery management for monitoring voltage, current, temperature and state of charge |
| System compatibility |
Specially developed for Fronius Reserva high-voltage battery storage (6.3 / 9.5 / 12.6 / 15.8) |
| Safety |
Integrated protection functions such as overvoltage and undervoltage protection, overcurrent and temperature monitoring |
| Stable installation |
Robust, precisely fitting base for a secure stand and clean system integration |
| Easy mounting |
Fast installation thanks to ready-to-plug, system-optimised design |
| Ecosystem & integration |
Seamless integration into the Fronius energy system in combination with Fronius hybrid inverters |
| Prestige |
High-quality system component from an established manufacturer with high build quality and a well-thought-out design |
| Warranty | 10-year manufacturer's warranty |
Scope of delivery
1 x Fronius Reserva BMS / base unit
1 x Fronius Reserva base
Subject to changes and errors, images similar.
