Fronius Reserva 9.5 Battery Storage - 9.47 kWh

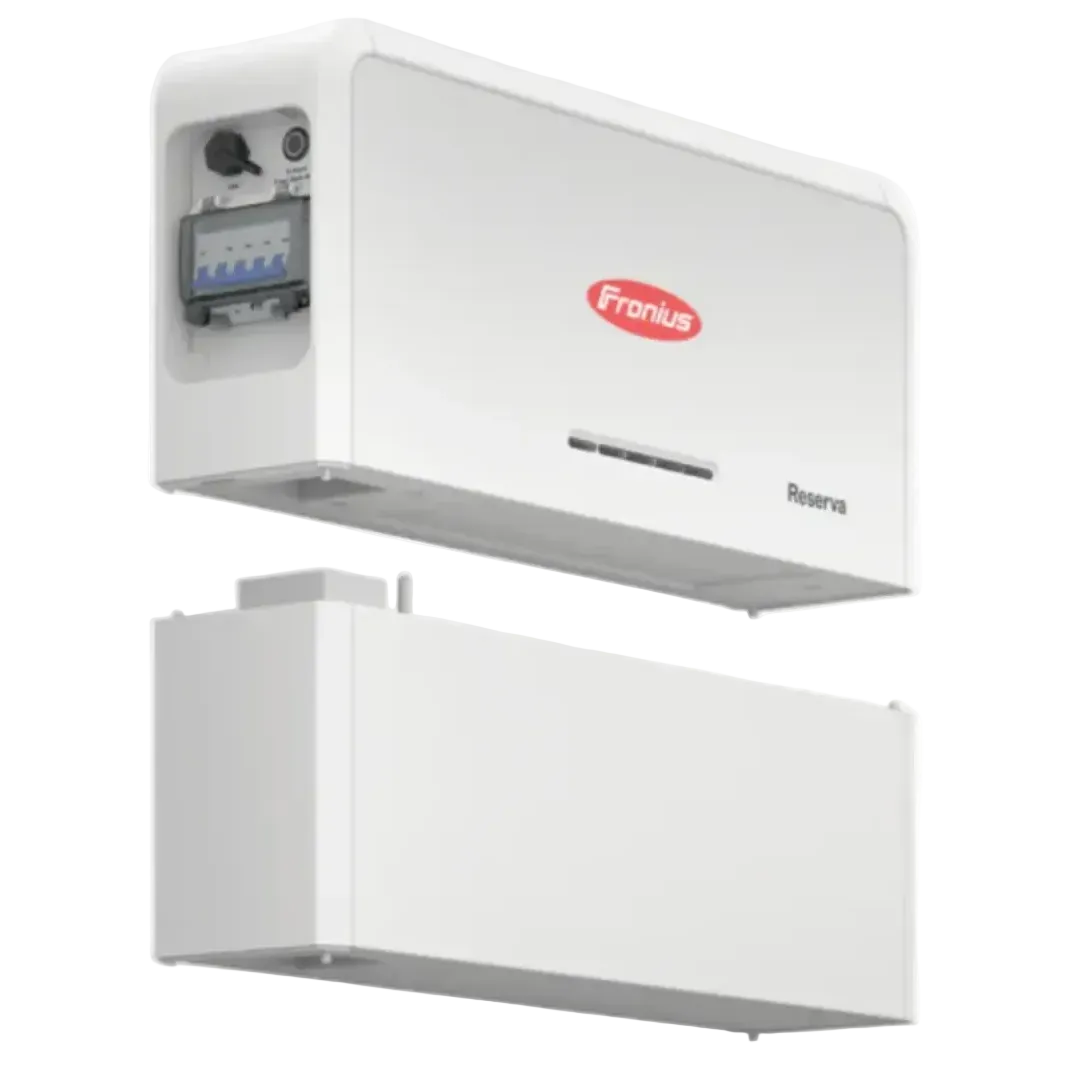

Fronius Reserva 9.5 battery storage – 9.47 kWh

The Fronius Reserva 9.5 battery storage is the ideal storage solution for photovoltaic systems with medium energy demand. With 9.47 kWh usable storage capacity and efficient DC coupling the system enables low-loss storage and maximum use of your self-generated solar power.

Lithium iron phosphate (LiFePO₄ / LFP)Battery cell type
9,47 kWhUsable capacity
307,2 VRated voltage
278,4 – 340,8 VOperating voltage
Fronius Reserva 9.5 Battery Storage - 9.47 kWh
Fronius Reserva 9.5 Battery Storage - 9.47 kWh

Product features

Power

High charge and discharge power, controlled by the inverter, for stable and efficient storage operation

Scalability & capacity

Modular design with 3 modules and 9.47 kWh usable capacity; flexibly expandable from 6.3 to 15.8 kWh within the Reserva series

Safety

Safe lithium iron phosphate cells (LiFePO₄), IP65 protection class and extensive certifications for high operational safety and robustness

Compactness & installation

Space-saving, slim design for indoor and sheltered outdoor areas; quick and easy installation thanks to DC connection technology

Thanks to durable and safe lithium iron phosphate technology (LFP) the high-voltage battery offers reliable performance in daily operation. In combination with compatible Fronius hybrid inverters the battery is ideal for self-consumption optimisation as well as for a reliable backup and emergency power supply.

TECHNICAL DATA

Technical data

Model designation Fronius Reserva 9.5 (high-voltage battery storage with 3 battery modules)
Battery cell type Lithium iron phosphate (LiFePO₄ / LFP)
Usable capacity 9,47 kWh
Number of battery modules 3
Rated voltage 307,2 V
Operating voltage 278,4 – 340,8 V
Max. charge / discharge current 32 A (limited by inverter)
Communication interface RS485
protective functions Overvoltage / undervoltage protection, overcurrent protection, overtemperature / undertemperature protection (integrated BMS)
Dimensions (H × W × D) 1100 × 780 × 176 mm
Weight 120 kg
Operating location Indoor & sheltered outdoor
Operating temperature −20 °C to +55 °C
Permissible humidity 5–95 %
Protection class IP65
Cooling type Passive convection cooling
Mounting type Floor mounting (floor-standing)

Features at a glance

  • Power: High charge and discharge power, controlled by the inverter, for stable and efficient storage operation
  • Scalability & capacity: Modular design with 3 modules and 9.47 kWh usable capacity; flexibly expandable from 6.3 to 15.8 kWh within the Reserva series
  • Safety: Safe lithium iron phosphate cells (LiFePO₄), IP65 protection class and extensive certifications for high operational safety and robustness
  • Compactness & installation: Space-saving, slim design for indoor and sheltered outdoor areas; quick and easy installation thanks to DC connection technology
  • Emergency power capability: emergency power and Full Backup operation possible in combination with Fronius GEN24 Plus as well as Backup Controller and Backup Switch
  • Ecosystem & smart integration: perfect integration into the Fronius energy system with monitoring and energy management via Fronius Solar.web (app & web)
  • Prestige: high-quality system solution from an established manufacturer with European data security, strong service and modern design
  • Warranty: 10-year manufacturer's warranty

Technical data

Manufacturer Fronius
Power  High charge and discharge power, controlled by the inverter, for stable and efficient storage operation
Scalability & capacity  Modular design with 3 modules and 9.47 kWh usable capacity; flexibly expandable within the Reserva series from 6.3 to 15.8 kWh erweiterbar
Safety  Safe lithium iron phosphate cells (LiFePO₄), IP65 protection class and extensive certifications for high operational safety and robustness
Compactness & installation  Space-saving, slim design for indoor and sheltered outdoor areas; quick and easy installation thanks to DC connection technology
Emergency power capability  Emergency power and Full Backup operation possible in combination with Fronius GEN24 Plus as well as Backup Controller and Backup Switch
Ecosystem & smart integration  Perfect integration into the Fronius energy system with monitoring and energy management via Fronius Solar.web (app & web)
Prestige  High-quality system solution from an established manufacturer with European data security, strong service and modern design
Warranty  10-year manufacturer's warranty

Scope of delivery

  • 3 x Fronius Reserva battery module
  • 1 x Fronius Reserva BMS / base unit
  • 1 x Fronius Reserva base and accessories

Subject to changes and errors, images similar.
