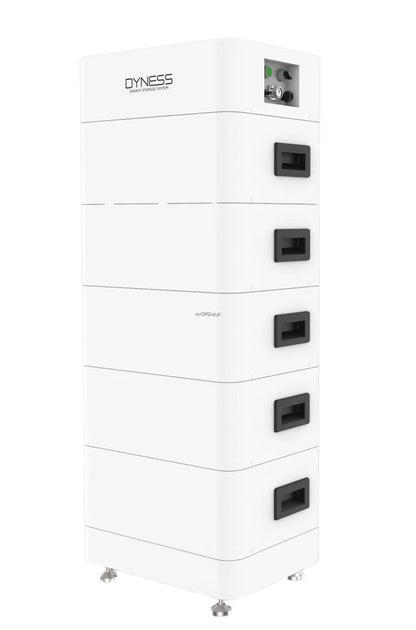

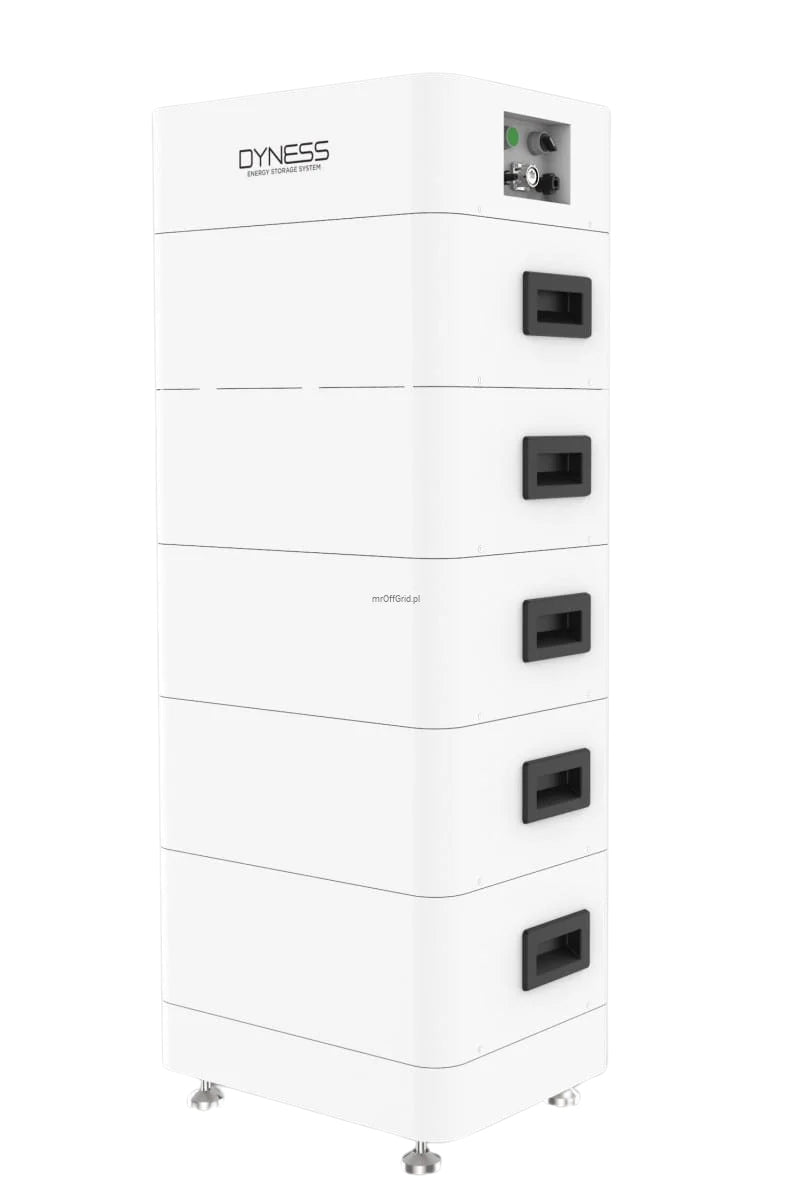

Dyness Tower T17 17.76 kWh Battery Storage V2.0 (Latest Version)
The Dyness Tower T17 is a modular high-voltage battery with 17.76 kWh nominal energy and 16.872 kWh usable energy according to the datasheet. This version consists of 5 HV9637 battery modules.

Product features
Graduated storage capacity
5 HV9637 modules form the Tower T17; nominal energy and usable energy are shown separately.
LFP technology
Lithium iron phosphate cells with a recommended depth of discharge of 95% according to the manufacturer's test conditions.
Inverter connection
CAN and RS485 are used for communication with approved inverters. The current Dyness compatibility list is authoritative.
Installation and operation
Protection rating IP54. According to the datasheet, charging is intended at 0 to +50 °C and discharging at −10 to +50 °C.
Technical data
| Nominal energy | 17,76 kWh |
|---|---|
| Usable energy | 16,872 kWh |
| Battery modules | 5 × HV9637 |
| Nominal voltage | 480 V |
| Cell technology | LiFePO₄ |
| Recommended depth of discharge | 95 % |
| Communication | CAN / RS485 |
| Protection class | IP54 |
| Weight | 228 kg |
Downloads
Datasheet version 2024-12-26. Information under the test conditions specified there.
