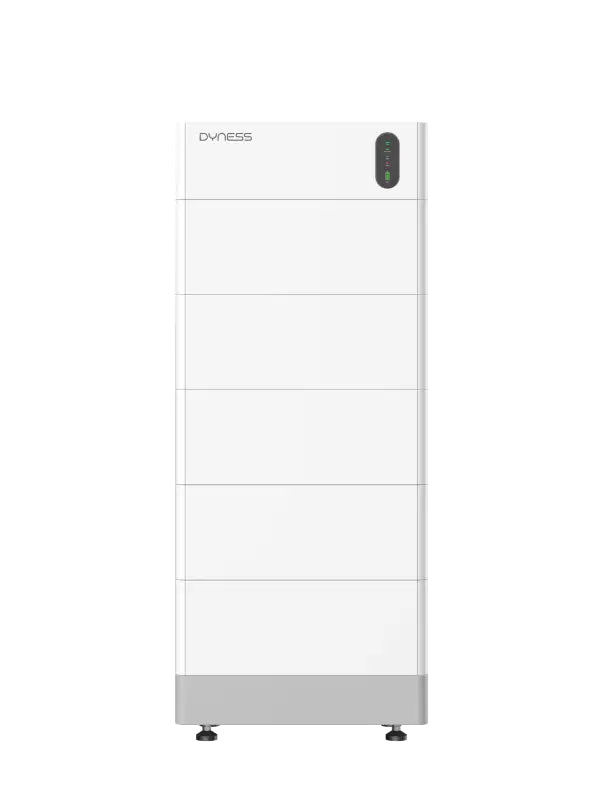

Dyness Tower Pro TP19 19.2 kWh Battery Storage (NEW MODEL)
Dyness Tower Pro TP19 incl. BMS with 18.24kWh Usable Capacity
The Dyness Tower Pro TP19 is a modular high-voltage lithium iron phosphate energy storage system for private and smaller commercial applications. The system consists of 5 stackable battery modules and a control unit (BCU). The total capacity is 19.2kWh (usable energy 18.24kWh) and can be expanded to up to 276.48kWh through parallel connection. Thanks to the plug-and-play design, installation and maintenance are particularly quick and easy.

Product features
Flexible expansion
Up to 12 towers in parallel operation up to 276.48kWh
Ultra safe
Intelligent fire suppression system, response within 5 seconds
Integrated heating function
Operating temperature range: -20°C to 55°C, polyimide film heating
Easy installation
Stackable modules, plug-and-play, installation in just 15min
Compatible with most inverters. Including Kostal, Goodwe, Kaco, Hoymiles, Deye, Solis, Growatt, ...
Note: cannot be combined with the Dyness Tower (discontinued item)
Features at a glance
- Flexible expansion: Up to 12 towers in parallel operation up to 276.48kWh
- Ultra safe: Intelligent fire suppression system, response within 5 seconds
- Integrated heating function: Operating temperature range: -20°C to 55°C, polyimide film heating
- Easy installation: Stackable modules, plug-and-play, installation in just 15min
- 1C discharge: simultaneous power supply to several loads, no worries about power outages
- OTA upgrade: remote maintenance and updates possible
- Battery capacity: 19.2kWh
- Usable energy: 18.24kWh
Technical data
| Manufacturer | Dyness |
|---|---|
| Flexible expansion | Up to 12 towers in parallel operation up to 276.48kWh |
| Ultra safe | Intelligent fire suppression system, response within 5 seconds |
| Integrated heating function | Operating temperature range: -20°C to 55°C, polyimide film heating |
| Easy installation | Stackable modules, plug-and-play, installation in just 15min |
| 1C discharge | Simultaneous power supply to several loads, no worries about power outages |
| OTA upgrade | Remote maintenance and updates possible |
Product features:
| Battery capacity | 19.2kWh |
|---|---|
| Usable energy | 18.24kWh |
| Battery module type | lithium iron phosphate (LiFePO4) |
| Number of battery modules | 5 |
| Rated voltage | 480V (operating voltage: 420–540V) |
| Nominal capacity | 40Ah |
| Max. continuous charge/discharge power | 19.2kW (1C) |
| Recommended depth of discharge (DOD) | 95% |
| Dimensions (W/D/H) | 587 x 310 x 1451mm |
| Weight | 231kg |
| Temperature range (charging/discharging) | -20°C to 55°C |
| Life cycle | ≥8,000 cycles (at 0.2C, 25°C, 95% DOD) |
| Service life | 15 years |
| Warranty | 10 years |
| Communication | CAN/RS485/RS232 |
| Protection class | IP55 |
| Heating function | Polyimide film heating |
| Fire protection function | Aerosol fire suppression |
| Remote OTA upgrade | Equipped |
| Battery module | HV9640 |
| Expansion | Up to 12 Tower Pro units in parallel operation |
Scope of delivery
Dyness Tower Pro TP19 (5 battery modules + BMS)
Subject to changes and errors, images similar.
