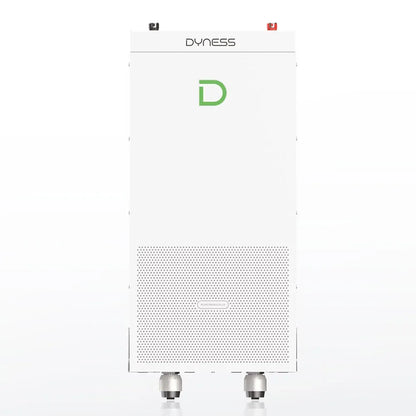

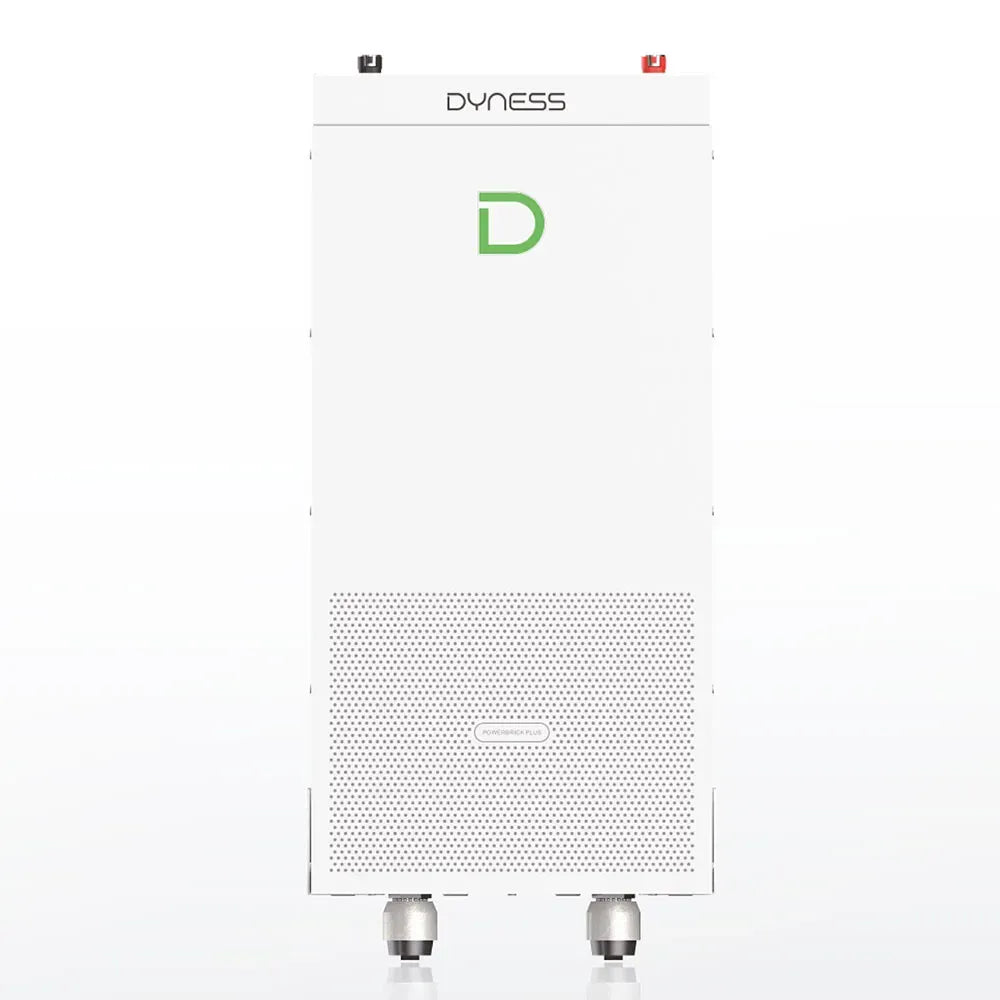

Dyness PowerBrick Plus 16.07 kWh - Low-Voltage Battery Storage
Dyness PowerBrick Plus – 16.08 kWh low-voltage battery storage
The Dyness PowerBrick Plus is a powerful modular 51.2 V low-voltage battery storage for residential and larger energy storage applications. One battery module offers 16.08 kWh rated energy and 15.28 kWh usable energy at a depth of discharge of 95%.
Performance down to −20 °C
IP65 protection
- 16.08 kWh rated energy and 15.28 kWh usable energy
- 51.2 V nominal voltage and lithium iron phosphate technology
- 95% depth of discharge
- Recommended charging and discharging power of 7.168 kW
- Maximum charging and discharging power of 10.24 kW
- Up to 50 battery modules can be connected in parallel
- Integrated aerosol fire extinguisher
- IP65 protection rating
- CAN and RS485 communication
- Monitoring via LED, WLAN, app and web
- Floor or wall mounting


With up to 200 A charging and discharging current and a maximum of 10.24 kW charging and discharging power per module the PowerBrick Plus is also suitable for applications with high power requirements. Up to 50 battery modules can be operated in parallel, allowing the system to be scaled to a maximum of 803,8 kWh .
The slim housing supports floor or wall mounting. An integrated aerosol fire extinguisher, IP65 protection rating and the permissible charging and discharging temperature range of −20 to +55 °C complement the safety and protection concept. Monitoring is via LED display, WLAN, app and web portal.
16,08 kWhRated energy per battery module
15,28 kWhUsable energy at 95% DOD
10,24 kWMaximum charging and discharging power
Up to 803.8 kWhScalable with up to 50 modules
Large capacity, flexibly scalableFrom 16.08 kWh with one module up to 803.8 kWh with 50 batteries operated in parallel.
Product benefits
Fast charging and discharging
Up to 200 A and 10.24 kW charging or discharging power per module.
Maximum safety
Integrated aerosol fire extinguisher for additional fire protection.
Reliable charging and discharging even at low temperatures.
Dust-tight housing with protection against water jets.

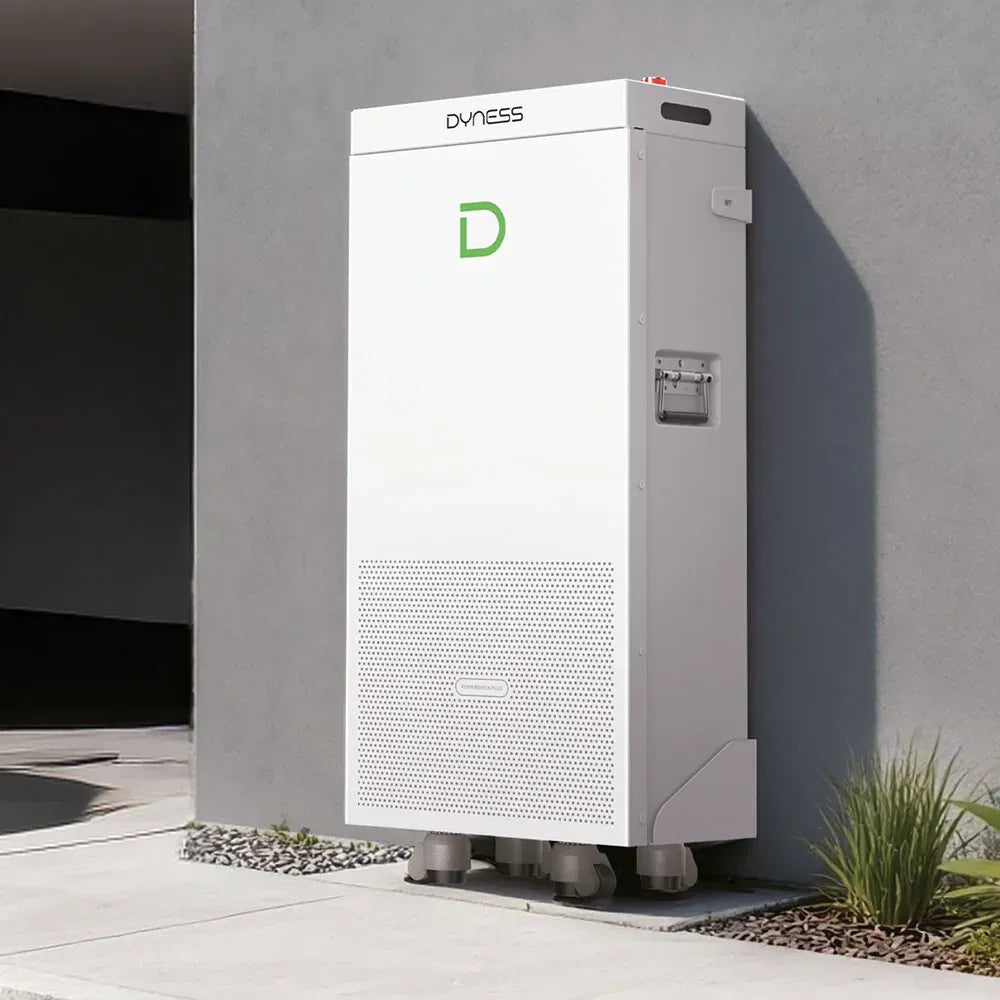

Flexible mounting
Floor or wall mounting and optional transport with four castors.
Intelligent monitoring & management
Real-time monitoring via LED display, WLAN, Dyness app and web portal.
Features at a glance
- Manufacturer: Dyness
- Model: PowerBrick Plus
- Battery technology: lithium iron phosphate (LiFePO₄ / LFP)
- Rated energy: 16.08 kWh
- Usable energy: 15.28 kWh
- Rated capacity: 314 Ah
- Rated voltage: 51.2 V
- Operating voltage range: 44.8 to 57.6 V
Technical data
| Manufacturer | Dyness |
|---|---|
| Model | PowerBrick Plus |
| Battery technology | Lithium iron phosphate (LiFePO₄ / LFP) |
| Nominal energy | 16,08 kWh |
| Usable energy | 15,28 kWh |
| Rated capacity | 314 Ah |
| Rated voltage | 51,2 V |
| Operating voltage range | 44.8 to 57.6 V |
| Recommended charge/discharge rate | 0.45 C / 140 A |
| Maximum charge/discharge rate | 0.64 C / 200 A |
| Peak discharge current at 25 °C | 300 A for 2 minutes |
| Recommended charge/discharge power | 7,168 kW |
| Maximum charging power | 10,24 kW |
| Maximum discharge power | 10,24 kW |
| Depth of discharge (DOD) | 95 % |
| Charging temperature | −20 to +55 °C |
| Discharge temperature | −20 to +55 °C |
| Protection class | IP65 |
| Communication | CAN / RS485 |
| User interface | LED, WLAN, app and web |
| Dimensions (W × D × H) | 435 × 235 × 850 mm |
| Weight | 117 kg |
| Mounting types | Floor or wall mounting |
| Parallel connection | Up to 50 battery modules |
| Cycle life | At least 8,000 cycles |
| Warranty | 10 years according to Dyness warranty terms |
| Certifications | UN 38.3 / IEC 62619 |
Subject to changes and errors, images similar.
