BYD HVB 20.7 Battery Box - 20.79 KWH

BYD HVB 20.7 Battery Box - 20.79 KWH

Regular price 6.210,91 €
Regular price  € Sale price 6.210,91 €
Sale Sold out
Taxes included. Shipping calculated at checkout.
Umsatzsteuer

In carts right now

  • Delivery time: expected 20-30 working days
Apple Pay Google Pay PayPal Mastercard Klarna Visa Shop Pay
PayPal
62,11 € saved 1 % discount for bank transfer
Final price with bank transfer: 6.148,80 €
Enter the voucher code at checkout and pay by bank transfer.
Valid for bank transfer only, not for cash payment.

1% discount

for bank transfer

Own collection point

in 71287 Weissach

Expert advice

+49 (0)7044 211 97 83

Fast support

Phone, email or on site

Customer 1 Customer 2
Thomas, Kim and 328 other customers love our products
View full details

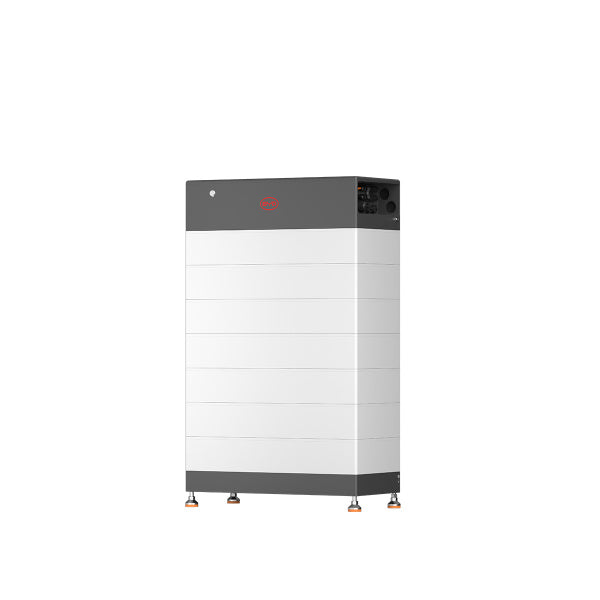

BYD HVB 20.7 Battery Box - 20.79 KWH

The BYD Battery-Box HVB 20.7 is a powerful high-voltage battery storage system for private and commercial photovoltaic systems. With a usable storage capacity of 20,79 kWh and the proven lithium iron phosphate technology (LiFePO₄) the system offers maximum safety, high efficiency and a long service life.

Thanks to its modular design, the Battery-Box HVB can be flexibly expanded and adapted to increasing energy requirements. The compact design allows space-saving installation, while the cobalt-free battery cells ensure maximum operational safety and thermal stability.

15-year manufacturer's warranty

358,4 V Rated voltage
280–403,2 V Operating voltage
BYD Battery-Box HVB battery module
BYD HVB 20.7 Battery Box - 20.79 KWH
BYD Battery-Box HVB compact design
BYD HVB 20.7 Battery Box - 20.79 KWH
BYD HVB 20.7 Battery Box - 20.79 KWH – product image
BYD HVB 20.7 Battery Box - 20.79 KWH

In combination with compatible hybrid inverters, the BYD Battery-Box HVB 20.7 is ideal for self-consumption optimisation, backup applications and emergency power solutions. The system impresses with high flexibility, easy expandability and the proven quality of the BYD Battery-Box series.

Compatibility note:
The BYD Battery-Box HVB batteries are compatible with hybrid inverters from leading manufacturers such as Kostal, Fronius, GoodWe, SMA und Solis . The current compatibility list for HVB can be found in the "Downloads" section of this product page.

Product benefits

BYD Blade battery technology

The BYD Blade battery technology in combination with the innovative cell-to-pack (CTP) structure ensures maximum safety and stability. The well-thought-out battery design offers a high level of protection against thermal influences and ensures reliable operation throughout the service life of the battery.

Easy installation and flexible expansion

With only 27.3 kg weight per 2.97 kWh battery module the BYD Battery-Box HVB allows easy handling, fast installation and flexible expansion of the storage system. The compact design facilitates transport, installation and later system expansions.

Long-term investment security

The BYD Battery-Box HVB series impresses with the highest quality and longevity. Thanks to the 15-year manufacturer's warranty you benefit from long-term investment security and a reliable energy storage system for many years.

Features at a glance

  • Model designation: BYD Battery-Box HVB (7 modules)
  • Battery cell type: lithium iron phosphate (LiFePO₄)
  • Energy / capacity: 20.7 kWh usable (7 modules)
  • Number of battery modules: 7 per system
  • Rated voltage: 358.4 V
  • Operating voltage: 280–403.2 V
  • Charge/discharge current: depending on configuration, optimised for high efficiency
  • Depth of discharge (DoD): 95% usable capacity

Technical data

Manufacturer BYD
Model designation BYD Battery-Box HVB (7 modules)
Battery cell type Lithium iron phosphate (LiFePO₄)
Energy / capacity 20.7 kWh usable (7 modules)
Number of battery modules 7 per system
Rated voltage 358,4 V
Operating voltage 280–403,2 V
Charge/discharge current Depending on configuration, optimised for high efficiency
Depth of discharge (DoD) 95% usable capacity
Short-circuit current Protection integrated
Communication interface CAN / RS485
Overvoltage/undervoltage protection Integrated
Overcurrent protection Integrated
Overtemperature/undertemperature protection Integrated
DC protection switch External switch required
Dimensions & weight 1009 × 610 × 282 mm / 205,2 kg
Operating location Indoor and outdoor use
Operating temperature / humidity –10 °C to +50 °C / max. 95% RH (non-condensing)
Protection class IP55
Cooling type Natural convection (passive)
Mounting type Floor mounting (mandatory)
Scalability Up to 10 modules per system (29.6 kWh), max. 3 systems in parallel (89.07 kWh)
Warranty: 15 years

Subject to changes and errors, images similar.

Manufacturer

Shenzhen BYD Electronics Co., Ltd.
Room 301 of BYD A-4 Building,
No.1 Yan'an Road, Kuichong Street,
Dapping New District Shenzhen
P.R. China

Product Details

BYD started in 1995 as a start-up with 20 employees - today the global corporation has 240,000 employees and the future in its portfolio. This includes high-tech products in various solution areas, such as private and public transport for urban mobility as well as power electronics and batteries.

BYD always thinks, acts and produces with a liveable and technologically advanced future in mind. The company is therefore regarded as one of the innovation drivers in the industry. With four of its own research and development centres in China, the quality manufacturer also stands for the durability of its products.

BYD storage systems are very powerful, safe, flexible and easy to install.
