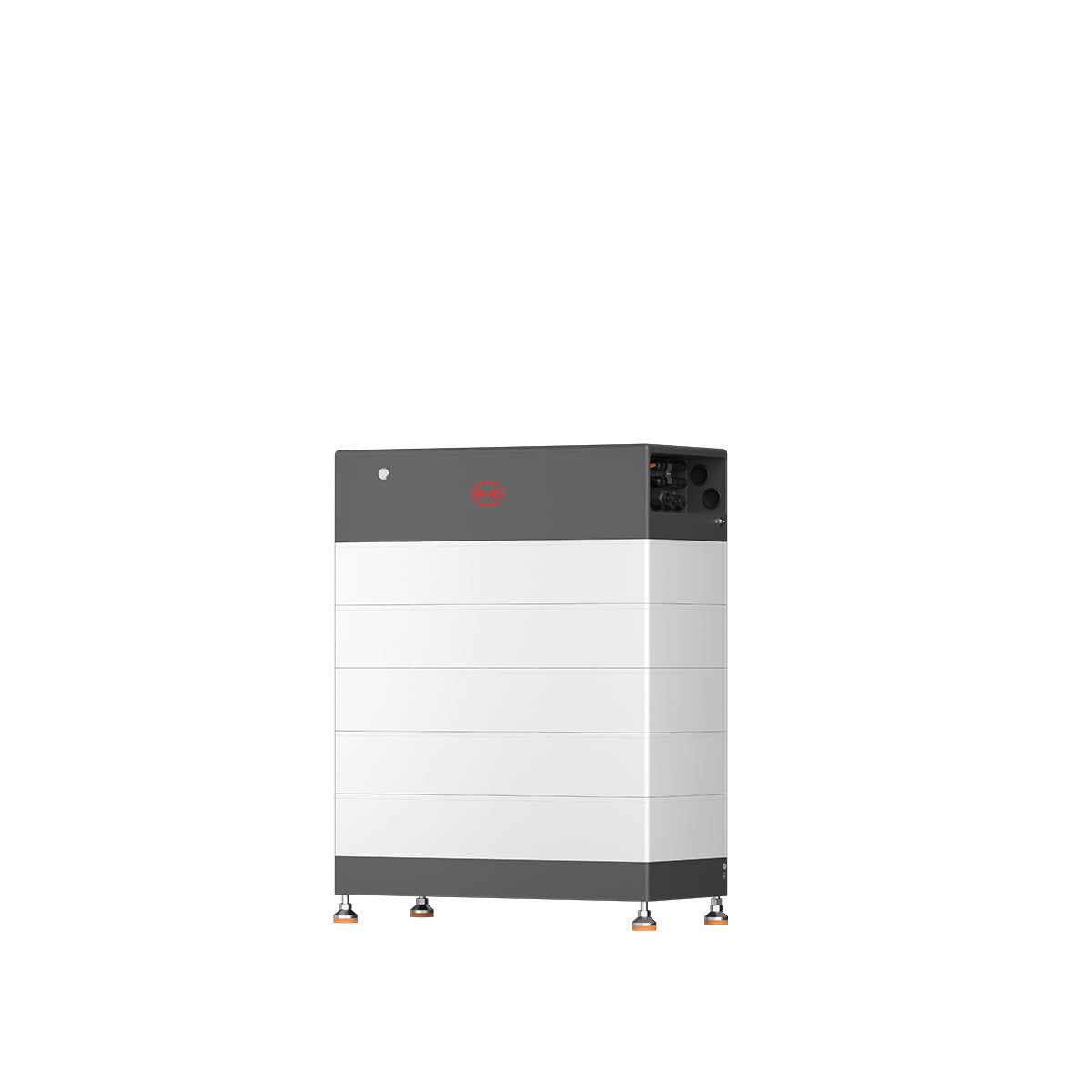

BYD HVB 14.8 Battery Box - 14.85 KWH
The BYD Battery-Box HVB 14.8 is a powerful high-voltage battery storage system for private and commercial photovoltaic systems. With a usable storage capacity of 14,85 kWh and the proven lithium iron phosphate technology (LiFePO₄) the system offers maximum safety, high efficiency and a long service life.
Thanks to its modular design, the Battery-Box HVB can be flexibly expanded and adapted to increasing energy requirements. The compact design allows space-saving installation, while the cobalt-free battery cells ensure maximum operational safety and thermal stability.
15-year manufacturer's warranty



In combination with compatible hybrid inverters, the BYD Battery-Box HVB 14.8 is ideal for self-consumption optimisation, backup applications and emergency power solutions. The system impresses with high flexibility, easy expandability and the proven quality of the BYD Battery-Box series.
Compatibility note:
The BYD Battery-Box HVB batteries are compatible with hybrid inverters from leading manufacturers such as Kostal, Fronius, GoodWe, SMA und Solis . The current compatibility list for HVB can be found in the "Downloads" section of this product page.
Product benefits
BYD Blade battery technology
The BYD Blade battery technology in combination with the innovative cell-to-pack (CTP) structure ensures maximum safety and stability. The well-thought-out battery design offers a high level of protection against thermal influences and ensures reliable operation throughout the service life of the battery.
Easy installation and flexible expansion
With only 27.3 kg weight per 2.97 kWh battery module the BYD Battery-Box HVB allows easy handling, fast installation and flexible expansion of the storage system. The compact design facilitates transport, installation and later system expansions.
Long-term investment security
The BYD Battery-Box HVB series impresses with the highest quality and longevity. Thanks to the 15-year manufacturer's warranty you benefit from long-term investment security and a reliable energy storage system for many years.
Technical data
| Manufacturer | BYD |
|---|---|
| Model designation | BYD Battery-Box HVB (5 modules) |
| Battery cell type | Lithium iron phosphate (LiFePO₄) |
| Energy / capacity | 14.8 kWh usable (5 modules) |
| Number of battery modules | 5 per system Nominal voltage: 256.0 V |
| Operating voltage | 200–288 V |
| Charge/discharge current | Depending on the configuration, optimised for high efficiency |
| Depth of discharge (DoD) | 95% usable capacity |
| Short-circuit current | Protection integrated |
| Communication interface | CAN / RS485 |
| Overvoltage/undervoltage protection | Integrated |
| Overcurrent protection | Integrated |
| Overtemperature/undertemperature protection | Integrated |
| DC protection switch | External switch required |
| Dimensions & weight | 797 × 610 × 282 mm / 150,6 kg |
| Operating location | Indoor and outdoor use |
| Operating temperature / humidity | –10 °C to +50 °C / max. 95% RH (non-condensing) |
| Protection class | IP55 |
| Cooling type | Natural convection (passive) |
| Mounting type | Floor mounting (mandatory) Scalability: up to 10 modules per system (29.6 kWh), max. 3 systems in parallel (89.07 kWh) |
| Warranty | 15 years |
Subject to changes and errors, images similar.
