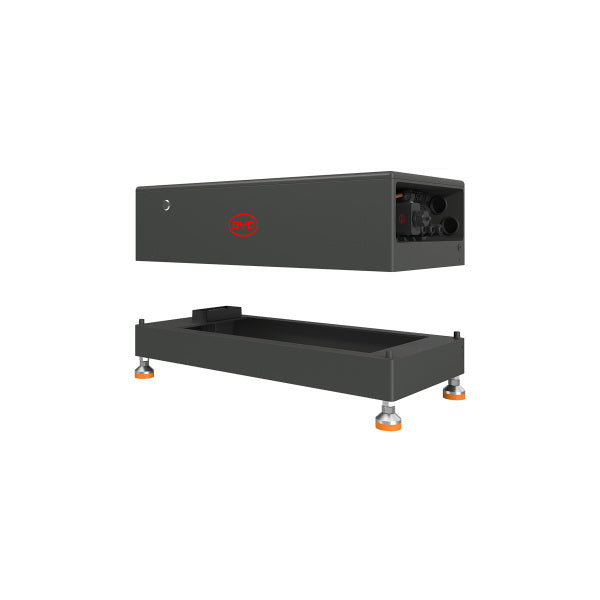

BYD B-BOX PREMIUM HVS+ 7.7 Battery Box
The BYD HVS+ 7.7 is a modular high-voltage battery of the new BYD Battery-Box HVS+ series and offers a usable storage capacity of 7,68 kWh. Thanks to the proven lithium iron phosphate technology (LiFePO₄) the system impresses with high safety, long service life and maximum reliability for modern photovoltaic systems.
The battery consists of three battery modules and can be flexibly expanded thanks to its modular design. With up to 38.4 kWh storage capacity by connecting several towers in parallel, the system adapts optimally to increasing energy requirements.
5.12 kWh to 38.4 kWh storage capacity
1C fast charging and discharging




In combination with compatible hybrid inverters, the BYD HVS+ 7.7 is ideal for self-consumption optimisation, backup applications and emergency power solutions. The compact design, high compatibility and proven BYD quality make the battery a reliable solution for private households and smaller commercial applications.
Compatibility note:
The BYD Battery-Box HVS+ batteries are compatible with hybrid inverters from leading manufacturers such as Kostal, Fronius, GoodWe, SMA und Solis . The current compatibility list for HVS+ can be found in the "Downloads" section of this product page.
Product benefits
Maximum flexibility
The modular storage system can be flexibly expanded and adapted to individual requirements. With a storage capacity of 5.12 kWh to 38.4 kWh the HVS+ series is suitable for both private and commercial applications.
High performance for maximum efficiency
Thanks to modern 1C technology the BYD HVS+ series offers particularly high charge and discharge power. This means that energy can be stored quickly and made available again just as quickly when needed.
Plug-and-play installation
No need to open the cover. The patented internal plug connection enables fast and straightforward installation and significantly reduces installation effort.
Technical data
| Manufacturer | BYD |
|---|---|
| Model designation | BYD Battery-Box HVS+ 7.7 |
| Battery cell type | Lithium iron phosphate (LiFePO₄) |
| Energy / capacity | 7.68 kWh usable |
| Number of battery modules | 3 modules (2.56 kWh each) Nominal voltage: 307.2 V |
| Operating voltage | 240 – 345,6 V |
| Charge / discharge current | 25 A rated current, 55 A peak current (15 s) |
| Depth of discharge (DoD) | 100 % |
| Short-circuit current | Not specified in the datasheet |
| Communication interface | CAN / RS485 |
| Overvoltage / undervoltage protection | Integrated |
| Overcurrent protection | Integrated |
| Overtemperature / undertemperature protection | Integrated |
| DC protection switch present? | Not specified |
| Dimensions (H × W × D) | 987 × 610 × 282 mm |
| Weight | 129,6 kg |
| Operating location | Indoor and outdoor installation |
| Operating temperature | -10 °C to +50 °C |
| Humidity | 5 % – 95 % |
| Protection class | IP55 |
| Cooling type | Passive (not specified as active) |
| Mounting type | Floor-standing |
Subject to changes and errors, images similar.
