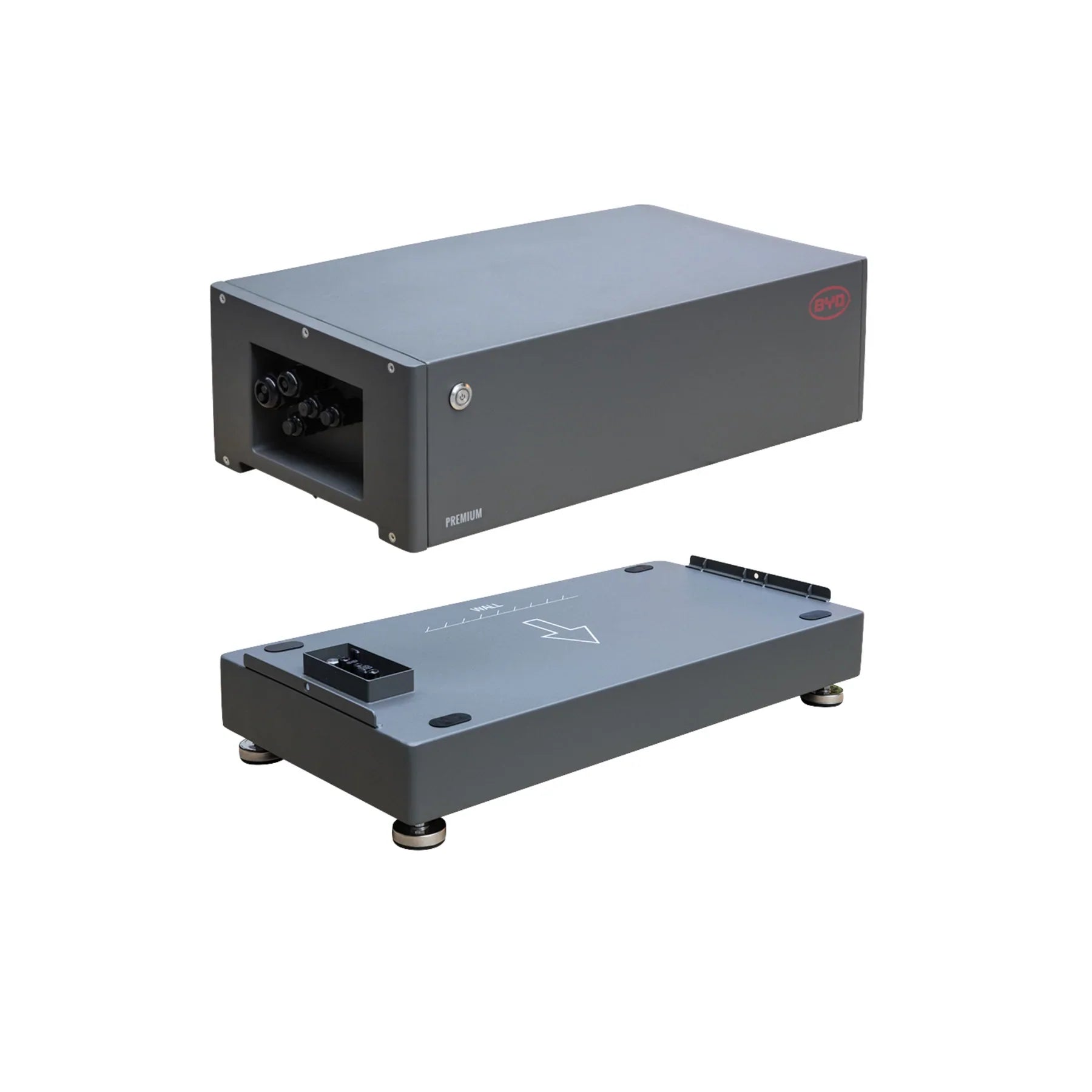

BYD B-BOX PREMIUM HVS 12.8 BATTERY STORAGE 12.8 KWH - BCU 2.0
BYD BATTERY-BOX PREMIUM HVS 12.8 – HIGH-PERFORMANCE BATTERY FOR FLEXIBLE AND SCALABLE ENERGY SYSTEMS – The new generation of the BYD Battery-Box Premium HVS is based on the proven features of its predecessors and also offers numerous improvements. The newly developed battery module has a higher storage capacity and a lower system weight, which has been reduced by almost 30% thanks to optimised cell technology. The depth has also been reduced by 8 cm, enabling more space-saving installation and a slimmer look. A special highlight: the new batteries have the IP55 protection class, which ensures safe outdoor use.
- Powerful emergency power and off-grid functionality: Ideal for off-grid systems and emergency power applications.

Product features
Excellent efficiency
True series connection achieves excellent energy efficiency.
Innovative plug-in design
The patented modular design enables maximum flexibility and easy installation without internal cabling.
Safe LFP technology
The cobalt-free lithium iron phosphate battery offers maximum safety, service life and performance.
Thanks to the modular division into 2.56 kWh per module, transport and installation are particularly efficient. For larger capacity requirements, up to three identical battery towers can be connected to create a powerful and individually customisable energy storage system.
The BYD Battery-Box Premium HVS 12.8 is a future-proof solution for flexible energy storage, suitable for both private and commercial applications.
MAXIMUM FLEXIBILITY AND EXTENDED SCALABILITY
With the new system generation, up to three battery towers can be connected to form one system, considerably increasing the storage capacity. The charge and discharge power remains at 1C, which means that each battery can deliver its rated capacity as power. This makes the Battery-Box Premium HVS particularly suitable for on-grid, on-grid backup and off-grid applications.
Features at a glance
- Excellent efficiency: True series connection achieves excellent energy efficiency.
- Innovative plug-in design: The patented modular design enables maximum flexibility and easy installation without internal cabling.
- Safe LFP technology: The cobalt-free lithium iron phosphate battery offers maximum safety, service life and performance.
- Compatibility: Works with leading single- and three-phase inverters.
- High safety standards: Certified according to VDE 2510-50 and further safety requirements.
- Battery capacity: 12.8 kWh
- Rated voltage: 512 V
- Maximum output current: 25 A
PRODUCT FEATURES OF THE BYD BATTERY-BOX PREMIUM HVS 12.8
| Manufacturer | BYD |
|---|---|
| Battery capacity | 12,8 kWh |
| Rated voltage | 512 V |
| Maximum output current | 25 A |
| Peak output current | 50 A for 3 seconds |
| Weight | 205 kg |
| Protection class | IP55 |
| Dimensions | 1461 x 585 x 298 mm (H/W/D) |
Subject to changes and errors, images similar.
