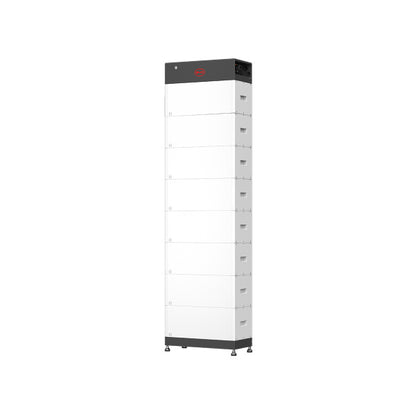

BYD B-BOX PREMIUM HVM 22.1 BATTERY STORAGE 22.08 KWH - BCU 2.0
BYD B-BOX PREMIUM HVM 22.1 – HIGH-VOLTAGE ENERGY STORAGE SYSTEM WITH 22.08 KWH CAPACITY – The BYD B-Box Premium HVM 22.1 is a powerful high-voltage lithium iron phosphate (LiFePO4) storage system, ideal for self-consumption, emergency power applications and peak load smoothing. With a usable capacity of 22,08 kWh and a rated voltage of 409 V the B-Box combines high performance with maximum safety. Thanks to the modular design and the patented cable-free plug-in system, installation is simple and efficient – even for a single person.
- Proven lithium iron phosphate technology (LFP): Cobalt-free battery for maximum safety, longevity and performance.
- Powerful emergency power and off-grid functionality: Ideal for new PV systems or as an extension of existing systems to cover energy requirements in any situation.
- High efficiency and award-winning series connection: For optimal use of the stored energy with a battery efficiency of ≥96%.

Product benefits
Proven lithium iron phosphate technology (LFP)
Cobalt-free battery for maximum safety, longevity and performance.
Powerful emergency power and off-grid functionality
Ideal for new PV systems or as an extension of existing systems to cover energy requirements in any situation.
High efficiency and award-winning series connection
For optimal use of the stored energy with a battery efficiency of ≥96%.
Features at a glance
- Flexible, modular design: The BYD Battery-Box Premium HVM consists of 3 to 8 battery modules and can be connected in parallel with up to 3 identical HVM systems. This allows the total capacity to be expanded to up to 66.2 kWh.
- Easy installation: Thanks to the self-supporting structure and the cable-free plug-in system, no internal cabling is required, making installation fast and safe.
- Model: Battery-Box Premium HVM 22.1
- Battery type: lithium iron phosphate (LFP), cobalt-free
- Number of battery modules: 8
- Usable capacity: 22.08 kWh
- Rated voltage: 409 V
- Voltage range: 320 – 460 V
TECHNICAL DATA OF THE BYD B-BOX PREMIUM HVM 22.1
| Manufacturer | BYD |
|---|---|
| Model | Battery-Box Premium HVM 22.1 |
| Battery type | Lithium iron phosphate (LFP), cobalt-free |
| Number of battery modules | 8 |
| Usable capacity | 22,08 kWh |
| Rated voltage | 409 V |
| Voltage range | 320 – 460 V |
| Maximum output current | 50 A |
| Peak output current | 75 A (for 3 seconds) |
| Protection class | IP55 – protection against dust and water jets, suitable for indoor and outdoor use |
| Dimensions (H/W/D) | 2160 x 585 x 298 mm |
| Weight | 319 kg |
| Operating temperature | -10 °C to +50 °C |
| Interfaces | CAN/RS485 |
| Battery efficiency | ≥96% |
| Certifications | VDE 2510-50, IEC 62619, CEC, CE, UN38.3 |
| Applications | ON Grid / ON Grid + Backup / OFF Grid |
| Warranty period | 10 years |
Subject to changes and errors, images similar.
