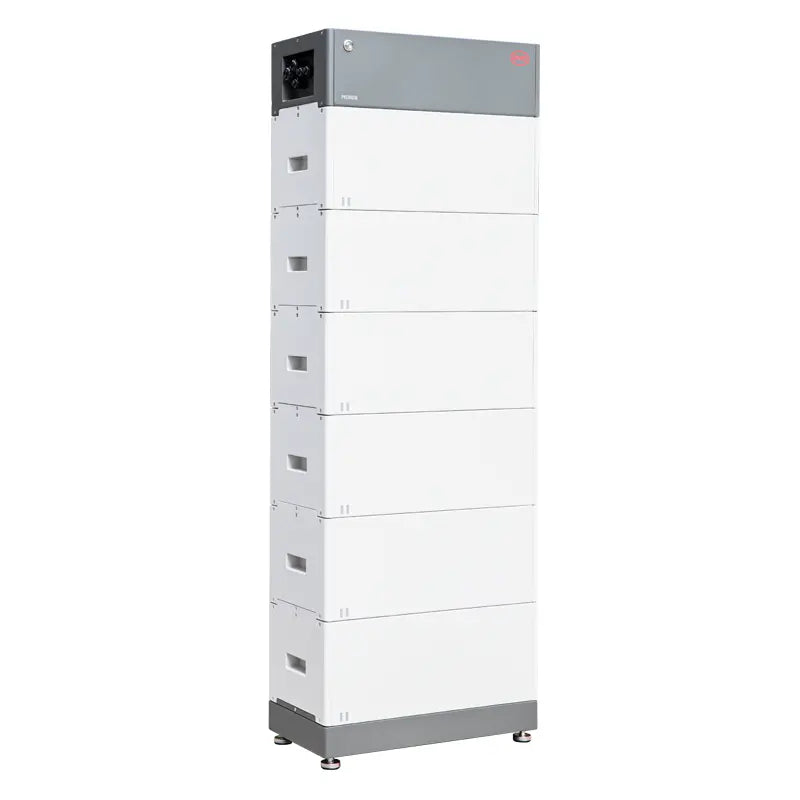

BYD B-BOX PREMIUM HVM 16.6 BATTERY STORAGE 16.56 KWH - BCU 2.0
BYD B-BOX PREMIUM HVM 16.6 KWH BATTERY STORAGE – MAXIMUM FLEXIBILITY AND PERFORMANCE – The BYD B-Box Premium HVM 16.6 is a state-of-the-art high-voltage batterywhich, with its usable capacity of 16,56 kWhis ideally suited for private and commercial applications. It is characterised by its robust lithium iron phosphate technology (LiFePO4) which offers both longevity and maximum safety while using completely cobalt-free cells.
Thanks to the modular design, the battery is expandable at any timeand can reach a maximum capacity of 66,2 kWh by adding further modules, with up to three identical storage towers connected in parallel. This makes it ideal for applications where high storage capacity is required, e.g. in households that want to optimise their self-consumption or act as an emergency power supply in off-grid systems.

Product features
High efficiency
An efficiency of over 96% ensures optimal energy utilisation.
Scalable and flexible

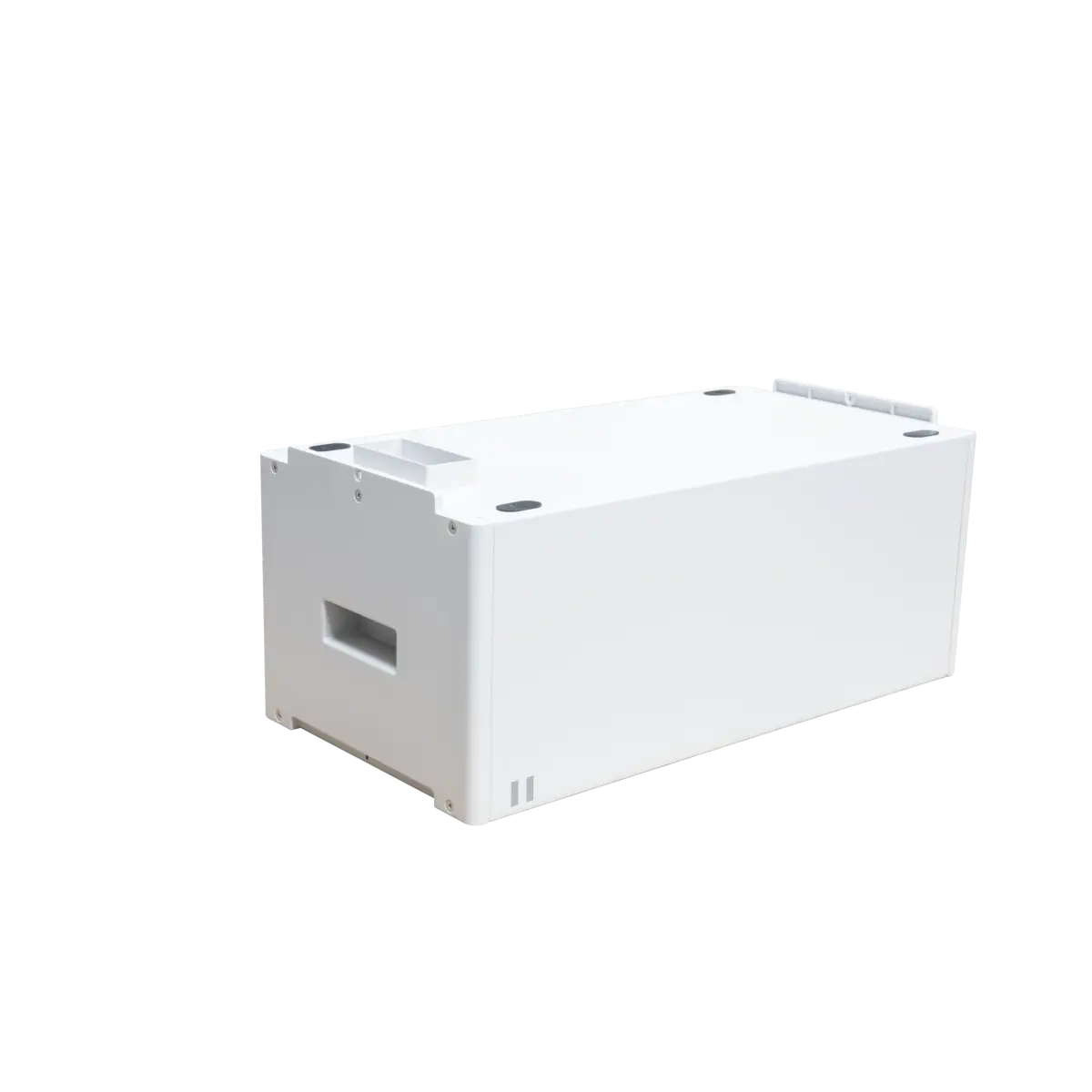

Expandable with additional HVM modules and parallel systems.
Fast installation
The patented cable-free plug-in system greatly simplifies installation.
Reliable and safe
The cobalt-free LFP batteries guarantee maximum safety, while the IP55 protection class allows use both indoors and outdoors.
With the BYD B-Box Premium HVM 16.6 you get a future-proof solution that not only maximises the energy efficiency of your household but also provides a reliable emergency power solution. Thanks to its modular expandability, the battery adapts perfectly to your individual needs and, thanks to its high safety standards remains one of the best options on the market.
Features at a glance
- High efficiency: An efficiency of over 96% ensures optimal energy utilisation.
- Scalable and flexible: Expandable with additional HVM modules and parallel systems.
- Fast installation: The patented cable-free plug-in system greatly simplifies installation.
- Reliable and safe: The cobalt-free LFP batteries guarantee maximum safety, while the IP55 protection class allows use both indoors and outdoors.
- High discharge power: With a maximum discharge power of 15.3 kW, the battery is also suitable for applications with high energy demand such as heat pumps and other household appliances.
- Usable capacity: 16.56 kWh
- Rated voltage: 307 V
- Max. output current: 50 A
TECHNICAL SPECIFICATIONS:
| Manufacturer | BYD |
|---|---|
| Usable capacity | 16,56 kWh |
| Rated voltage | 307 V |
| Max. output current | 50 A |
| Protection class | IP55 |
| Battery efficiency | ≥96 % |
| Certifications | VDE2510-50, IEC62619, CEC, CE, UN38.3 |
| Ambient temperature | -10 °C to +50°C |
| Dimensions | 1694 x 585 x 298 mm |
| Weight | 243 kg |
Subject to changes and errors, images similar.
