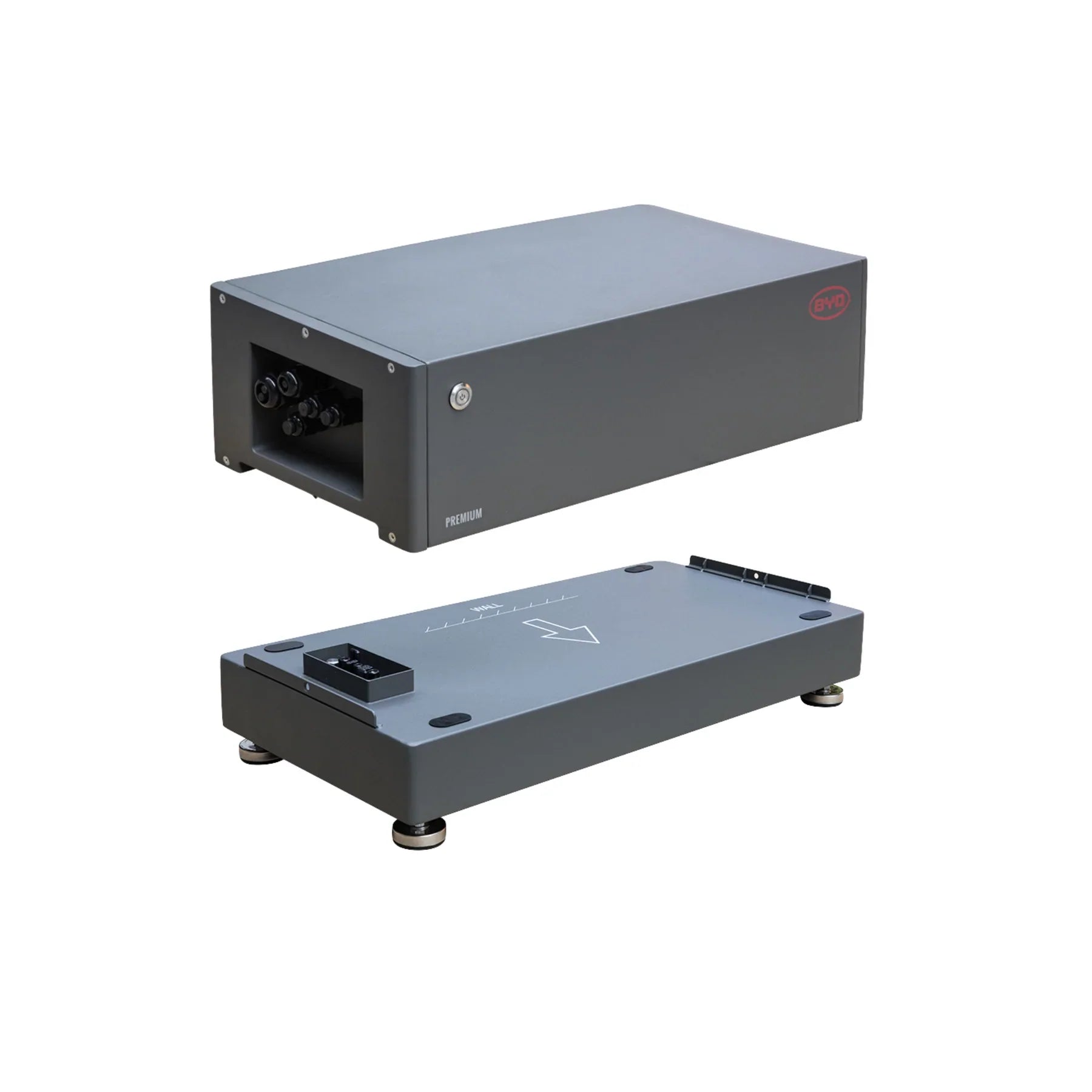

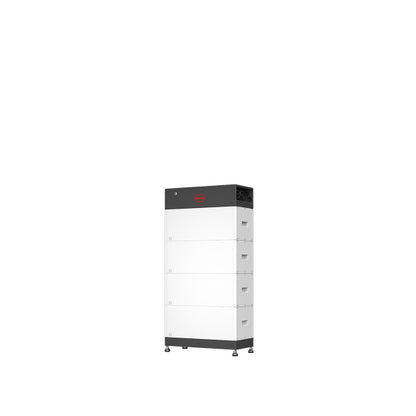

BYD B-BOX PREMIUM HVM 11.0 BATTERY STORAGE 11.04 KWH - BCU 2.0
BYD B-BOX PREMIUM HVM 11.0 KWH BATTERY STORAGE – FLEXIBLE HIGH-VOLTAGE BATTERY FOR SELF-CONSUMPTION AND EMERGENCY POWER – The BYD B-Box Premium HVM 11.0 is a flexible and powerful high-voltage energy storage system with a usable capacity of 11,04 kWh. It is characterised by proven lithium iron phosphate (LFP) technology, which offers maximum safety, longevity and high discharge power of up to 10,2 kW . These properties make it ideal for self-consumption optimisation as well as for emergency power applications and off-grid solutions.

Product features
Expandability
Up to three identical battery towers can be connected in parallel to achieve a maximum capacity of 66.2 kWh.
Flexibility

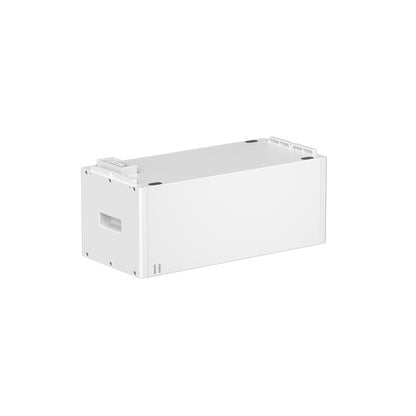

The system can be expanded at any time with additional battery modules or towers without the need for internal cabling. This simplifies installation and reduces costs.
Emergency power and off-grid functionality
Supplies households on up to three phases during power outages, provided a compatible hybrid inverter is used
High efficiency
The series connection ensures very high efficiency of up to 96% during charging and discharging.
Thanks to its flexibility and scalability, this battery is an ideal choice for households looking for an efficient and future-proof energy supply solution.
Features at a glance
- Expandability: Up to three identical battery towers can be connected in parallel to achieve a maximum capacity of 66.2 kWh.
- Flexibility: The system can be expanded at any time with additional battery modules or towers without the need for internal cabling. This simplifies installation and reduces costs.
- Emergency power and off-grid functionality: Supplies households on up to three phases during power outages, provided a compatible hybrid inverter is used
- High efficiency: The series connection ensures very high efficiency of up to 96% during charging and discharging.
- Usable capacity: 11.04 kWh
- Discharge power: 10.2 kW
- Dimensions: 1228 x 585 x 298 mm
- Weight: 167 kg
TECHNICAL SPECIFICATIONS:
| Manufacturer | BYD |
|---|---|
| Usable capacity | 11,04 kWh |
| Discharge power | 10,2 kW |
| Dimensions | 1228 x 585 x 298 mm |
| Weight | 167 kg |
| Protection class | IP55, for indoor and outdoor use |
| Certificates | VDE2510-50, IEC62619, CEC, CE, UN38.3 |
Subject to changes and errors, images similar.
