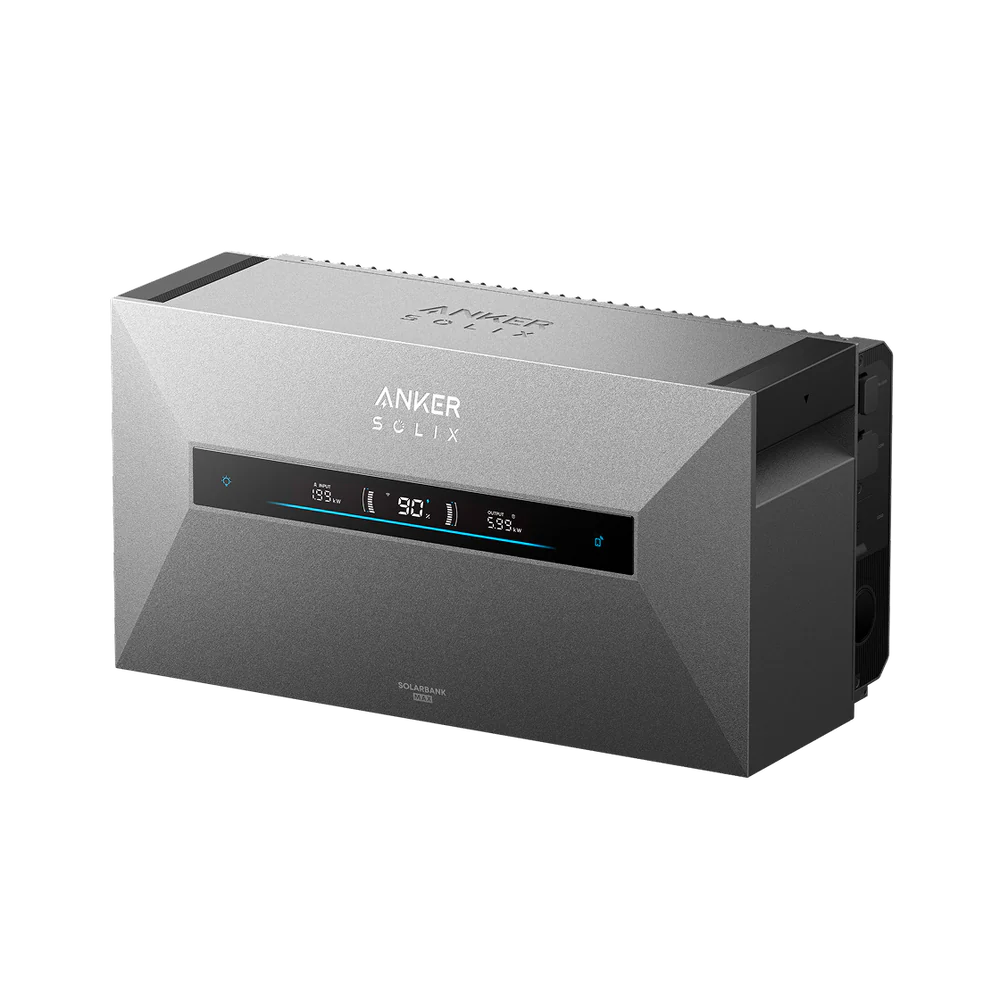

Anker SOLIX Solarbank Max AC
7 kWh AC-coupled battery storage
The Anker SOLIX Solarbank Max AC is a modular, AC-coupled battery storage system with 7 kWh nominal capacity. As the battery operates independently of the existing PV inverter, it is particularly suitable for retrofitting existing photovoltaic and balcony power plant systems.
Modularly expandable up to 42 kWh
- 7 kWh nominal capacity in the main unit
- Up to 42 kWh with five BP7000 expansion batteries
- Up to three Solarbank Max AC systems can be operated in parallel
- Maximum 126 kWh storage capacity with three complete systems
- 3.5 kW maximum charging and discharging power of the single unit
- Up to 5 kW maximum charging and discharging power with expansion batteries
- 3.68 kVA continuous power at the AC backup output
- 10 milliseconds UPS switchover time
- 100% depth of discharge
- Up to 10,000 charging cycles
- IP66 and C5-M corrosion protection class
- Natural convection cooling without fans





The main unit offers a maximum charging and discharging power of 3,5 kW. Via the separate AC backup output, up to 3,68 kVA is available. In the event of a grid failure, according to the manufacturer, the integrated UPS function switches to the backup output within 10 milliseconds.
With up to five Anker SOLIX BP7000 expansion batteries the storage capacity grows to a maximum of 42 kWh. Up to three Solarbank Max AC systems can be operated in parallel. This allows a total of up to 126 kWh storage capacity are possible.
7 kWhNominal capacity of the main unit
3,5 kWMaximum charging and discharging power
3,68 kVAMaximum continuous backup output power
Up to 42 kWhWith five BP7000 expansion batteries
Powerful AC battery for existing solar systems7 kWh base capacity, 3.5 kW power and modular expansion up to 42 kWh.
Product benefits
Easily retrofittable AC battery
AC coupling enables integration into existing photovoltaic systems regardless of the existing PV inverter.
The 7 kWh main unit can be expanded to a total of 42 kWh with up to five BP7000 expansion batteries.

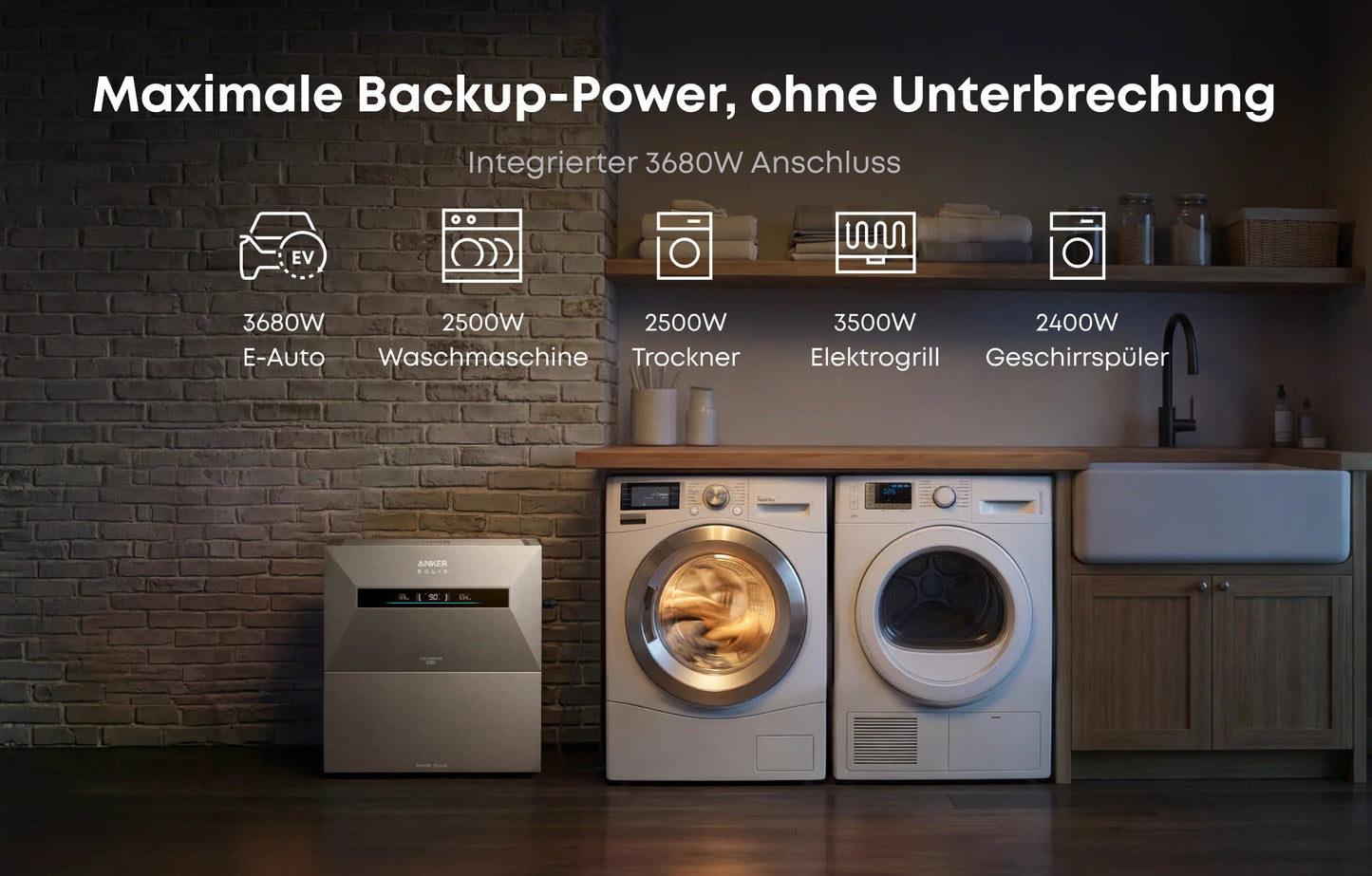

Fast backup switchover
In the event of a power outage, the UPS function switches to the AC backup output within 10 milliseconds.
Durable LFP cell technology
314 Ah LFP cells, 100% depth of discharge and up to 10,000 charging cycles enable long-term use.
Suitable for indoor and outdoor use
IP66 protection rating, C5-M corrosion protection and active heating support operation at −20 to +55 °C.
Intelligent energy management
WLAN, RS485 and Anker Intelligence support consumption monitoring, self-consumption optimisation and dynamic electricity tariffs.
Store solar surplus efficientlyUp to 3.5 kW charging power helps store surplus energy from existing solar systems for later use.

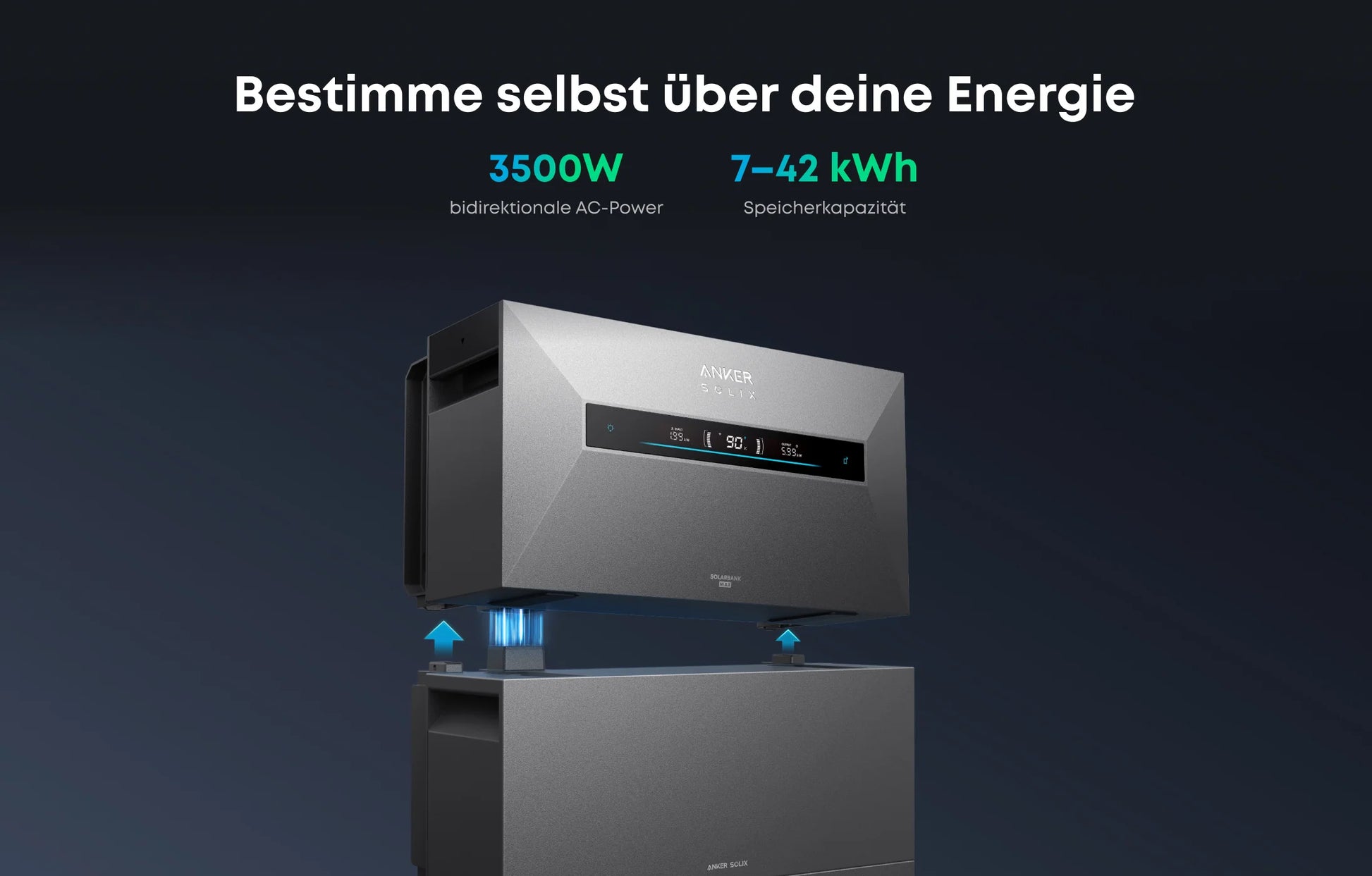

Modular and cable-free expansionAdditional BP7000 battery modules are connected to the main unit in the stackable system.
Developed for year-round useIP66, C5-M corrosion protection and active battery heating support reliable operation in different weather conditions.
Power and operating modes
The grid output power is set at the factory to 800 W . With a dedicated separate circuit and a standard-compliant connection, the grid-connected output power can be unlocked via the app to up to 3,5 kW .
The separate AC backup output delivers up to 3.5 kW active power or a maximum of 3.68 kVA apparent power. According to the datasheet, up to 5,520 W for 10 seconds and up to 7,360 W for one second are possible for short periods.
Important note on power ratings: The advertised 5,000 W refers to an expanded battery system or the combined use of the grid-connected and off-grid outputs. The single 7 kWh main unit has a maximum charging and discharging power of 3.5 kW.
Features at a glance
- Manufacturer: Anker SOLIX
- Product: Solarbank Max AC
- Model number: A17E23Z1
- Product type: AC-coupled battery storage
- Nominal capacity: 7 kWh
- Maximum system capacity: 42 kWh per main unit / up to 126 kWh with three systems
- Battery technology: lithium iron phosphate (LFP)
- Cell capacity: 314 Ah
Technical data
| Manufacturer | Anker SOLIX |
|---|---|
| Product | Solarbank Max AC |
| Model number | A17E23Z1 |
| Product type | AC-coupled battery storage |
| Rated capacity | 7 kWh |
| Maximum system capacity | 42 kWh per main unit / up to 126 kWh with three systems |
| Battery technology | Lithium iron phosphate (LFP) |
| Cell capacity | 314 Ah |
| Depth of discharge | 100 % |
| Battery life | Up to 10,000 charging cycles |
| Rated grid voltage | 220 / 230 V AC, L + N + PE |
| Rated frequency | 50 / 60 Hz |
| Maximum AC input current | 15,2 A |
| Maximum AC output current | 15,2 A |
| Grid output active power | 800 W factory setting / up to 3.5 kW |
| Maximum apparent output power | 3,68 kVA |
| AC backup output | 3.5 kW active power / maximum 3.68 kVA |
| Peak output power | 5,520 W for 10 s / 7,360 W for 1 s |
| Maximum charge/discharge power | 3.5 kW without expansion battery; up to 3.68 / 5 kW with expansion batteries |
| Communication | WLAN / RS485 |
| Operating temperature | −20 to +55 °C |
| Relative humidity | 0 to 95% |
| Protection class | IP66 |
| Corrosion protection class | C5-M |
| Cooling | Natural convection |
| Dimensions (L × H × D) | 670 × 356 × 325 mm |
| Weight | 73 kg |
| Installation location | Indoor and outdoor |
| Warranty | 10 years according to the manufacturer's warranty terms |
Subject to changes and errors, images similar.
