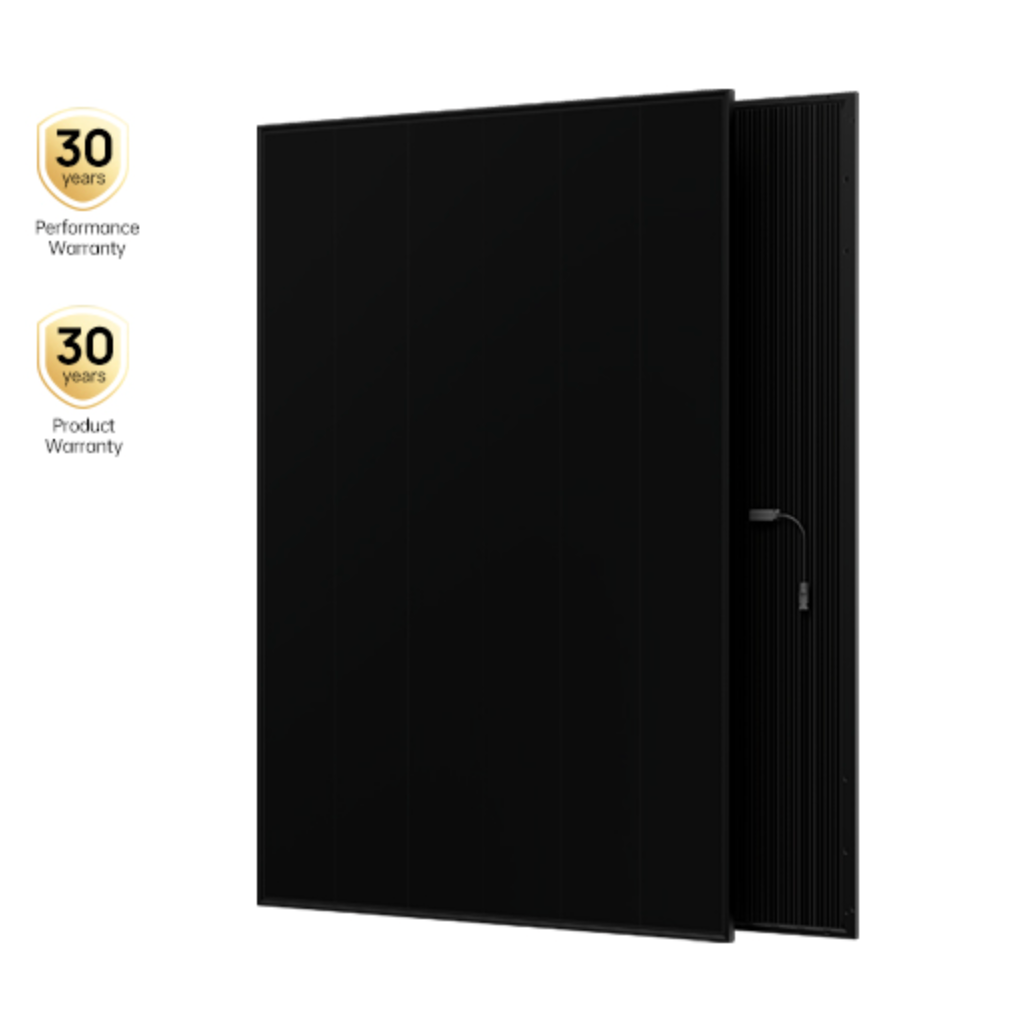

37x AIKO 485W Full Black AIKO-A485-MCE54Db Neostar 3S+54 (1 pallet)
Power: 485 W powerful glass-glass solar module with a high module efficiency of 24.3%
Technology: N-type ABC technology for improved temperature coefficients, higher efficiency and optimised behaviour under partial shading

Technical data
| Appearance | Elegant full-black design with black aluminium frame and completely black module surface |
|---|---|
| Connection | IP68 junction box with 3 bypass diodes, ±1200 mm connection cable and original MC4 connectors |
| Compatibility | Suitable for all common inverters, mounting systems and PV accessory components |
| Certifications & tests | IEC class A, TÜV certified and successfully tested hail resistance with 35 mm hail at 23 m/s |
| Warranty | 30-year product warranty and 30-year linear performance warranty |
Double glass
2.0 + 2.0 mm coated, heat-strengthened glass, N-type ABC back-contact cells according to the datasheet.
Electrical characteristics
Vmpp 34.60 V / Impp 14.02 A, Voc 41.00 V / Isc 14.84 A (STC), module efficiency 24.3%.
Load capacity
Static load front 5,400 Pa, hail 35 mm, fire protection IEC class A; 1762 × 1134 × 30 mm, 24.2 kg.
AIKO 485W Full Black AIKO-A485-MCE54Db Neostar 3S+54 N-Type ABC Glass-Glass Solar Module
The AIKO Neostar 3S+ A485-MCE54Db is a highly efficient N-type ABC glass-glass solar module with 485 W power and modern full-black look. Thanks to the innovative ABC cell technology (All Back Contact), the module achieves maximum energy yields with an elegant appearance and is ideal for demanding residential and commercial photovoltaic systems.
The robust Glass-glass construction ensures maximum resistance to environmental influences and guarantees a particularly long service life. With a 30-year product and performance warranty and a low annual power degradation of only ≤ 0,35 % the module offers high and stable energy yields over the long term.
The black anodised frame, high-quality workmanship and all-black design enable visually harmonious integration on almost any roof. Thanks to its high compatibility with common mounting systems, inverters and connection components, the module is suitable for new installations as well as high-performance PV projects in the residential and commercial sector.
Technical data
| Manufacturer | AIKO |
|---|---|
| Cell type | N-type ABC |
| Peak power (Pmax) | 485 W (STC) |
| Open-circuit voltage (Voc) | 41.00 V (STC) |
| MPP voltage (Vmp) | 34.60 V (STC) |
| Short-circuit current (Isc) | 14.84 A (STC) |
| MPP current (Imp) | 14.02 A (STC) |
| Module efficiency | 24,3 % |
| Isc temperature coefficient | +0,05 %/°C |
| Voc temperature coefficient | −0.22%/°C Pmax temperature coefficient: −0.26%/°C |
| Maximum system voltage | DC 1500 V |
| Operating temperature | −40 °C to +85 °C |
| Maximum series fuse rating | 30 A |
| Maximum static load (front / rear) | 5400 Pa / 2400 Pa |
| Dimensions | 1762 × 1134 × 30 mm |
| Weight | 24,2 kg ± 3 % |
| Warranties | 30-year product warranty & 30-year linear performance warranty |
| Module efficiency | 24,3 % |
| Vmpp / Impp (STC) | 34,6 V / 14,02 A |
| Voc / Isc (STC) | 41,0 V / 14,84 A |
| Dimensions | 1762 × 1134 × 30 mm |
| Weight | 24,2 kg |
| Glass construction | 2,0 + 2,0 mm |
| Packaging (manufacturer) | 37 pcs per pallet |
Source of datasheet values: AIKO-A-MCE54Db 480–490 W (DE) (datasheet stored in the shop)
Subject to changes and errors, images similar.
