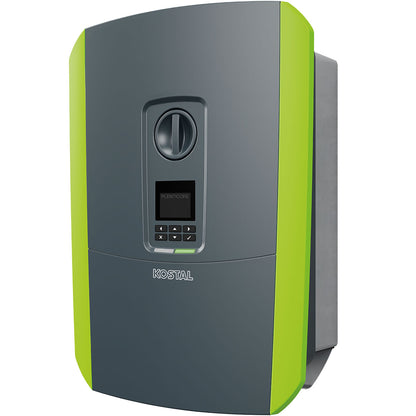

KOSTAL Plenticore Plus 3.0 G2

Kostal Plenticore plus 3.0 G2

The new Kostal Plenticore plus G2 inverters are easiest to describe as universal. In addition to the 2 regular MPP trackers, another one is available as a variable version. Here, a high-voltage battery storage unit can be connected as an alternative to a third roof orientation. This creates a highly efficient DC-coupled storage system. In addition to an attractive new design, a separate connection space was also created for all necessary interfaces. Continuous self-consumption measurement, dynamic power control, intelligent shadow management and the tried and tested free Kostal portal are on board. Local use is also possible thanks to the integrated web server.

product advantages

• Easy connection of a high-voltage battery possible
• Modern and functional design
• Complete communication package
• Dynamic power control is easy to implement
• Intelligent shadow management and self-learning battery control
• Temperature-controlled active cooling
• Usable without internet connection

Product features Kostal Plenticore plus 3.0 G2

• 3-phase mains connection
• 3.0 kW AC power
• transformerless concept
• 2 +1 MPP Tracker
• DC disconnect switch integrated in the front of the device
• Interfaces: WLAN, Ethernet, USB, CAN, RS485, Modbus RTU, FRE
• Switching contact for self-consumption control (e.g. heat pump)
• Dimensions: 563 x 405 x 233 mm (H x W x D)
• Weight: 17.86 kg
• Protection class: IP 65
• 10-year warranty (after registration with Kostal)
