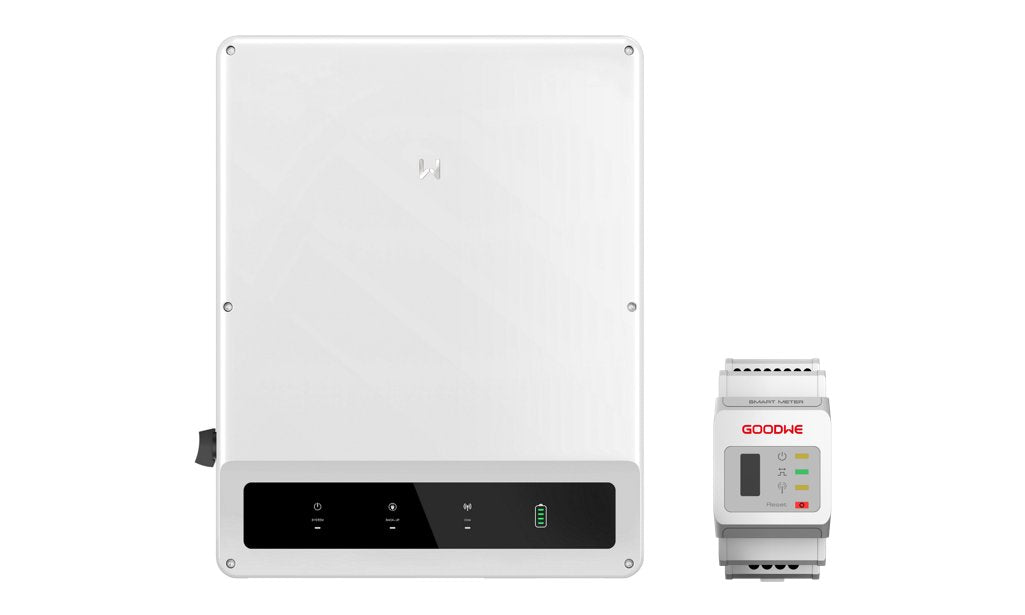

GoodWe GW29.9K-ET PLUS+ 30kW / 29.9kW Hybrid Inverter

The GoodWe Hybrid high-voltage inverter GW29.9K-ET from the ET series with emergency power output

The GoodWe ET 15-30 series is suitable for large PV projects in the private home and small projects in the commercial sector. The highest inverter output on the AC side is 29.9 kVA and does not require a central NA protection. The GoodWe hybrid inverter has an integrated switching device for backup power. This means that the inverter can continue to supply selected consumers with emergency power in the event of a power failure. The hybrid inverter is black start capable and can recharge solar energy.

product advantages

• Integrated switching device for emergency power
• black start capable
• peak shaving function
• AC charging capability
• DC ÜSS Type 2 integrated
• Direct connection to ripple control receiver
• AC surge protection

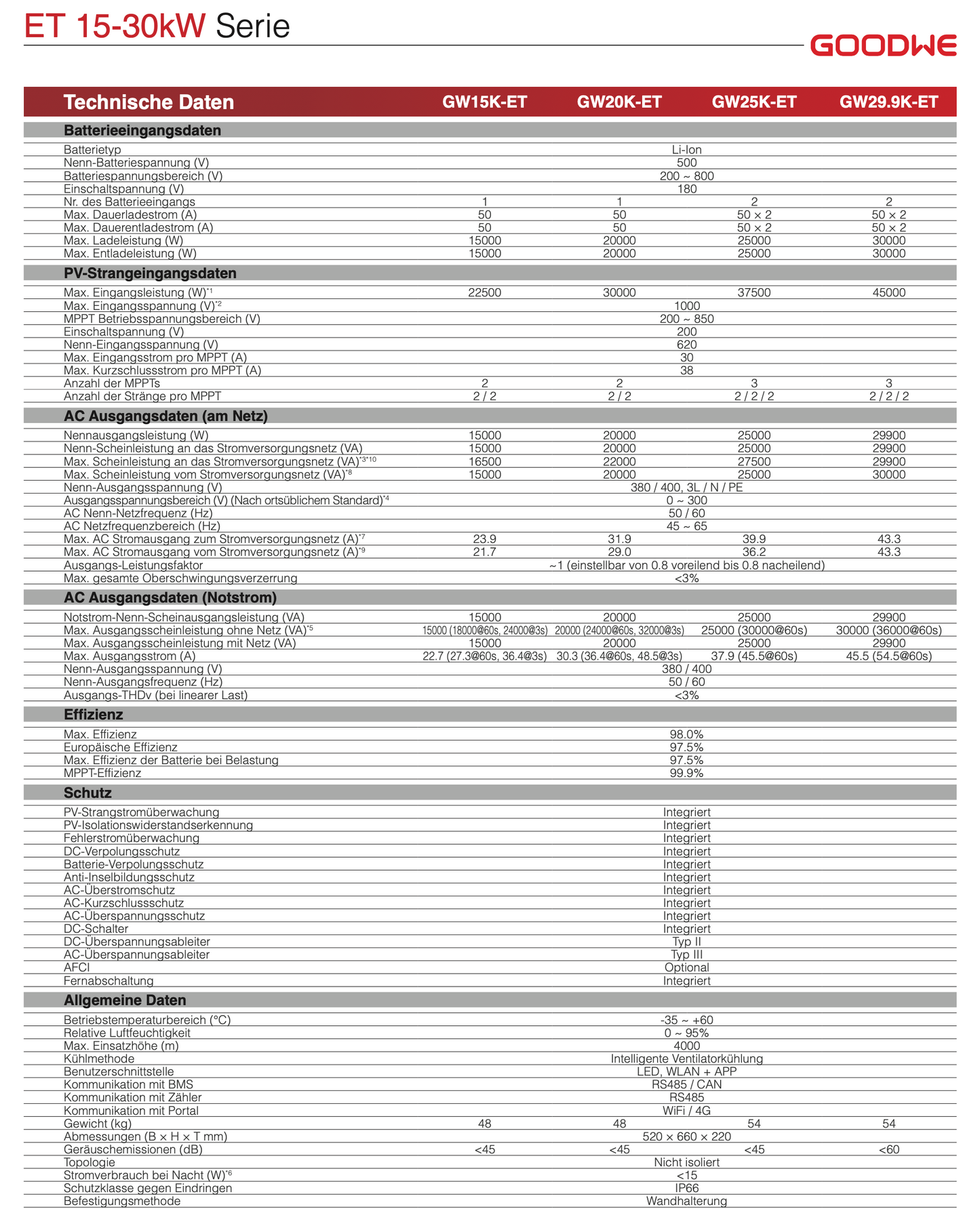

Product features GW29.9K-ET

• Mains connection: 3 phase
• AC power: 29.9 kVA
• 29.9 kW emergency power output via separate output
• MPP Tracker: 3
• String connections per MPPT: 2
• Max. input current per MPPT: 30 A
• Max. short-circuit current per MPPT: 38 A
• Battery connection for high-voltage battery (GoodWe, BYD)
• Number of battery inputs: 2
• Communication: RS485, CAN, WLAN, Bluetooth
• Potential-free contact available (programmable via SolarGo app) (SG-Ready)
• 3-phase smart meter GM3000 included
• WiFi module included
• Dimensions: 520 x 660 x 220 mm (HxWxD)
• Protection class: IP66
• Weight: 54.0 kg

battery compatibility

• GoodWe Lynx Home F, GoodWe Lynx Home F Plus, BYD HVM/HVS
