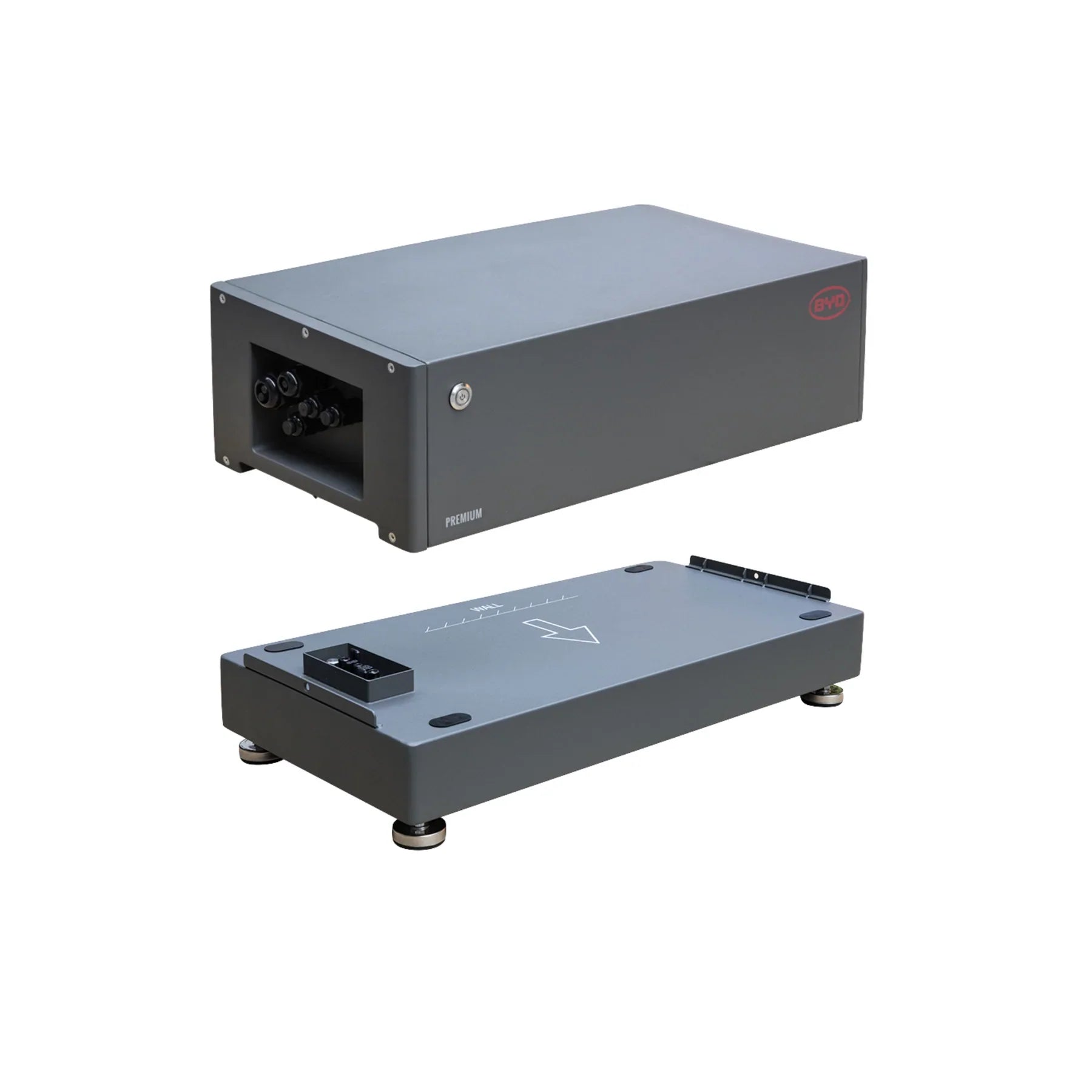

BYD B-BOX PREMIUM HVS 10.2 BATTERY STORAGE 10.24 KWH

BYD BATTERY-BOX PREMIUM HVS 10.2 – POWERFUL HIGH-VOLTAGE STORAGE FOR FLEXIBLE ENERGY SYSTEMS

The new system generation of the BYD Battery-Box Premium HVS builds on the proven functions of previous models and brings with it crucial improvements. The Battery-Box Premium HVS is a battery module that offers a higher storage capacity than the previous model. Thanks to the optimized cell technology, the overall weight has been reduced by almost 30%. The installation depth has also been reduced by 8 cm, which means less floor space is required and the devices look slimmer. Another advantage: the new storage units have protection class IP55, which means they can also be used outdoors.

GREATER FLEXIBILITY AND SCALABILITY

The updated generation allows up to three battery towers to be combined into one system, increasing flexibility and scalability. Each battery continues to deliver its rated capacity as power (1C), making the series ideal for on-grid, on-grid plus backup, and off-grid systems.

PRODUCT BENEFITS

• Excellent efficiency: The true series connection achieves excellent energy efficiency.
• Patented plug-in design: No need for internal wiring, ensuring easy installation and high user-friendliness.
• Safe LFP battery: Cobalt-free lithium iron phosphate technology offers maximum safety, durability and performance.
• Wide Compatibility: Works with leading 1- and 3-phase inverters.
• Highest safety standards: Meets standards such as VDE 2510-50 and other safety requirements.
• Emergency power and off-grid functionality: Ideal for systems that require reliable emergency power supply.

PRODUCT FEATURES OF THE BYD BATTERY-BOX PREMIUM HVS 10.2

• Battery capacity: 10.24 kWh
• Nominal voltage: 409 V
• Maximum output current: 25 A
• Peak output current: 50 A for 5 seconds
• Weight: 167 kg
• Protection class: IP55
• Dimensions: 1178 x 585 x 298 mm (H/W/D)

The division of the battery capacities into 2.56 kWh per module enables quick and easy transport and uncomplicated installation. For higher storage capacity, up to three identical battery towers can be connected to create a customized energy storage system.

The BYD Battery-Box Premium HVS 10.2 offers a future-proof and versatile solution for modern energy storage requirements and is perfect for use in private and commercial applications.
