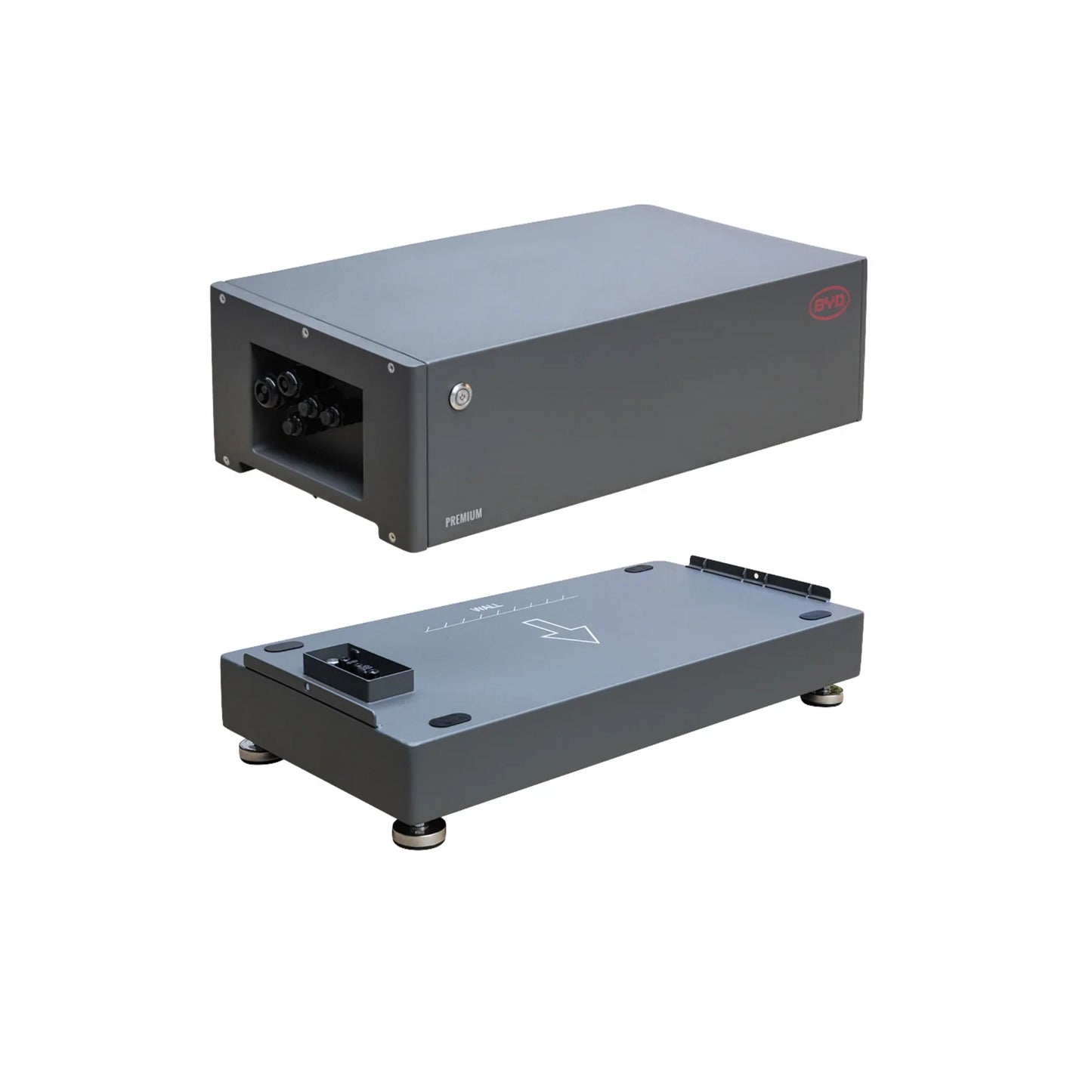

BYD B-BOX PREMIUM HVS 5.1 BATTERY STORAGE 5.12 KWH

BYD B-BOX PREMIUM HVS 5.1 BATTERY STORAGE 5.12 KWH

Regular price €2.289,00 EUR
Regular price €2.999,00 EUR Sale price €2.289,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
VAT

BYD BATTERY-BOX PREMIUM HVS 5.1 – FLEXIBLE AND SCALABLE HIGH-VOLTAGE BATTERY

The new generation of the BYD Battery-Box Premium HVS builds on the proven functions of its predecessor models and at the same time brings significant improvements. The Battery-Box Premium HVS offers a higher storage capacity and uses advanced cell technology to reduce the system weight by up to 30%. The installation depth has also been reduced by 8 cm, which minimizes the space required and makes the appearance appear slimmer. A highlight of the new series: The storage units have protection class IP55, which enables safe use even outdoors.

MAXIMUM FLEXIBILITY AND SCALABILITY

With this new generation of systems, up to three battery towers can be connected to each other to increase capacity even further. Despite the improved features, BYD remains true to its proven charging and discharging performance. Each battery delivers the nominal capacity as power (1C), making the new storage systems ideal for on-grid, backup and off-grid applications.

PRODUCT BENEFITS

  • High efficiency: Thanks to true series connection, the system achieves award-winning efficiency.
  • Modular plug-in design: The patented design allows easy installation without internal wiring and offers maximum flexibility and ease of use.
  • Safe LFP technology: The cobalt-free lithium iron phosphate battery offers maximum safety, durability and performance.
  • Wide Compatibility: Works with leading 1- and 3-phase inverters.
  • Highest safety standards: Certified according to VDE 2510-50 and other standards.
  • Emergency and backup power function: Powerful functionality for grid-independent operation.

PRODUCT FEATURES OF THE BYD BATTERY-BOX PREMIUM HVS 5.1

  • Battery capacity: 5.12 kWh
  • Nominal voltage: 204 V
  • Maximum output current: 25 A
  • Peak output current: 50 A for 5 seconds
  • Weight: 91 kg
  • Protection class: IP55
  • Dimensions: 712 x 585 x 298 mm (H/W/D)

The optimization of the individual battery modules to 2.56 kWh makes transport and installation much easier. For larger capacities, up to three identical battery towers can be combined to form a powerful system that can be tailored to individual energy requirements.

With this new generation of the BYD Battery-Box Premium HVS you get a future-proof and flexible energy storage solution that is suitable for both private and commercial applications.
