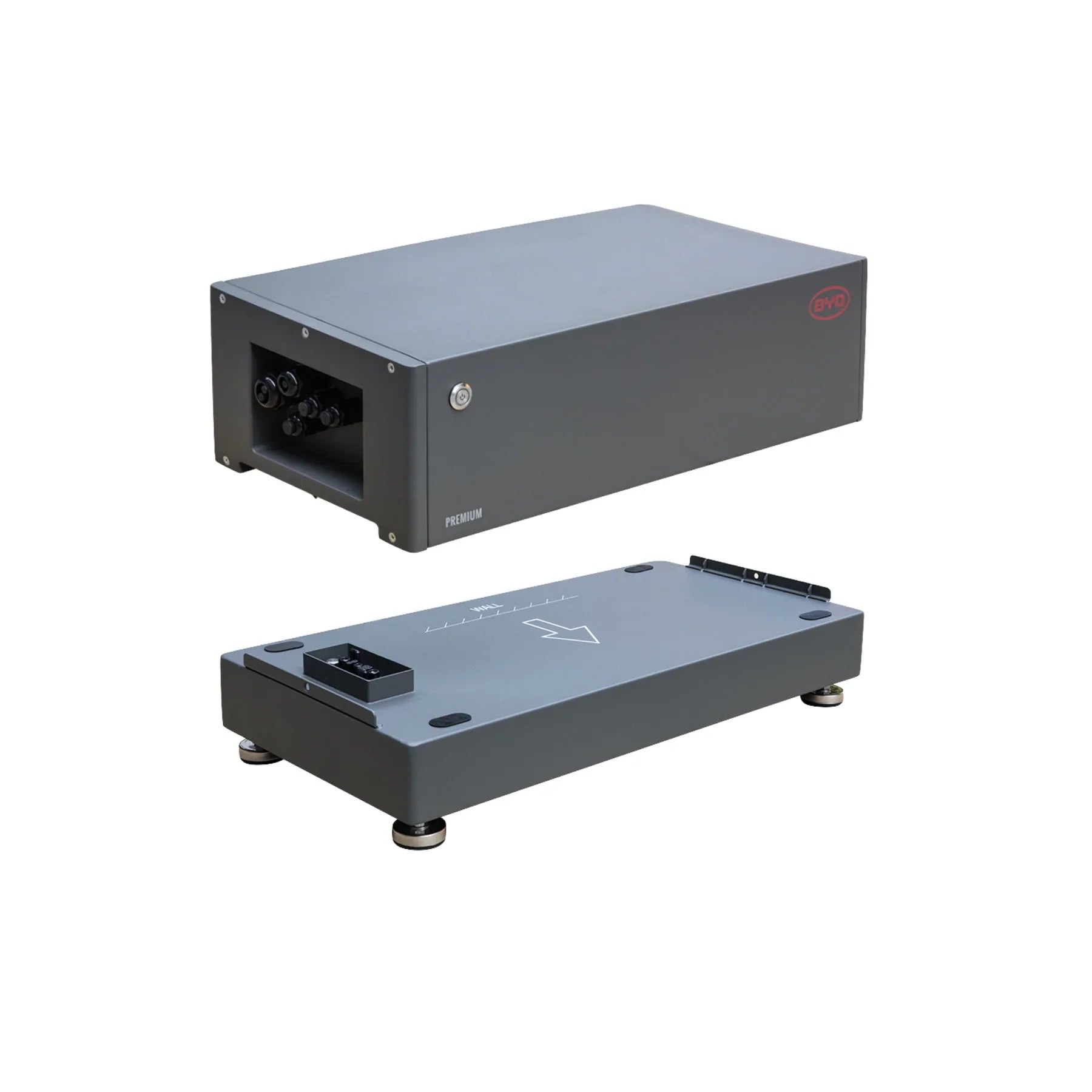

BYD B-BOX PREMIUM HVM 13.8 BATTERY STORAGE 13.80 KWH
BYD B-BOX PREMIUM HVM 13.8 BATTERY STORAGE 13.80 KWH
BYD B-BOX PREMIUM HVM 13.8 KWH – FLEXIBLE HIGH-PERFORMANCE ENERGY STORAGE SOLUTION
The BYD B-Box Premium HVM 13.8 kWh is an advanced high-voltage storage system based on proven lithium iron phosphate (LiFePO4) technology that offers maximum safety and efficiency. With a usable capacity of 13.8 kWh and the option to expand up to 66.2 kWh, this system is ideal for private and commercial applications. Thanks to its modular design, the storage capacity can be flexibly adapted to growing energy requirements.
MAIN FEATURES OF THE BYD B-BOX PREMIUM HVM 13.8 KWH :
- Modular and scalable : Starts at 13.8 kWh and can be expanded to 66.2 kWh by adding battery modules or towers.
- Safe and durable : Cobalt-free LiFePO4 cells ensure maximum safety, long service life and thermal stability.
- High efficiency : With an efficiency of over 96% and a continuous discharge power of 1C, the storage is ideal for applications with high energy requirements.
- Easy installation : Thanks to the patented wireless plug-in system, the storage unit can be installed by one person, without any internal wiring.
- IP55 protection class : Suitable for indoor and outdoor use , even in harsh environments.
TECHNICAL DATA OF THE BYD B-BOX PREMIUM HVM 13.8 KWH :
- Usable capacity : 13.8 kWh
- Nominal voltage : 256 V
- Max. output current : 40 A (75 A for 3 seconds)
- Dimensions : 1461 x 585 x 298 mm
- Weight : 205 kg
- Protection class : IP55
- Compatible inverters : Kostal, SMA, Fronius, GoodWe
- Certifications : VDE 2510-50, IEC 62619, CE, UN38.3
The BYD B-Box Premium HVM 13.8 kWh is the ideal solution for anyone looking for a reliable and scalable energy storage solution to optimize their own consumption or to act as an emergency power system . With its easy installation, robust design and expansion options, it offers the perfect combination of flexibility and performance.
